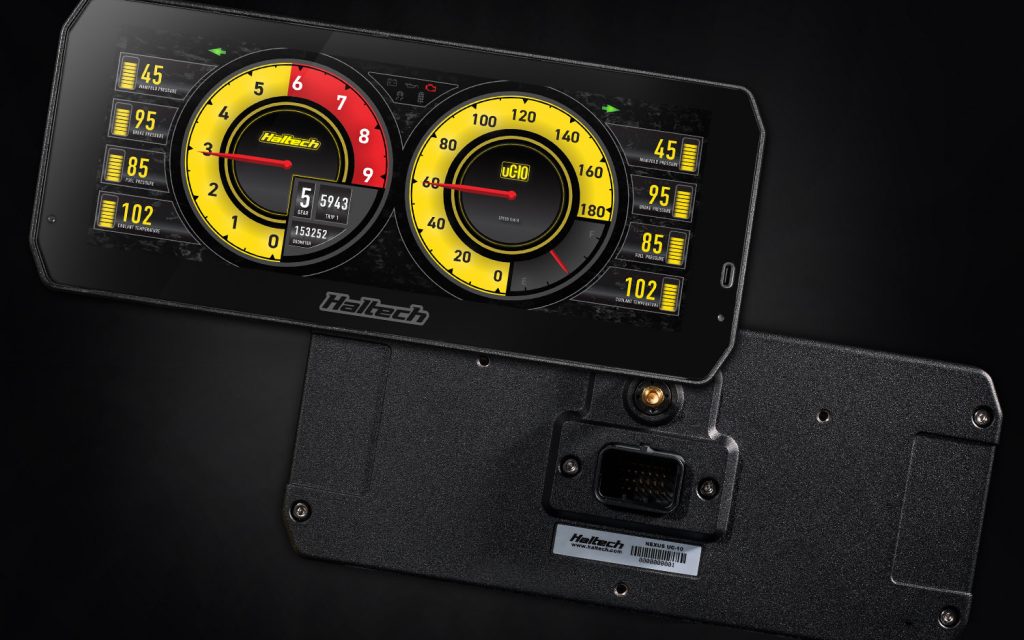

Compatibility: The uC-10 is compatible with Haltech CAN, OBD2, and selected aftermarket ECU brands. It can also be wired in as a complete stand-alone unit. This versatility ensures that it can seamlessly integrate into a wide range of vehicles and setups.
The uC-10 offers plenty of scope for sensors and other inputs in a stand-alone configuration, or for use as an I/O expander in a Haltech environment.
User Definable I/O: 10 x AVIs, 4 x DPOs, 4 x SPIs.
Fixed I/O: 1 x Tacho Input and 1 x Alternator Excite.
On-Board Data Logging: The uC-10 comes equipped with 512MB of on-board looped data logging.
NSP compatible: The uC-10 will be compatible with our free NSP software, straight out of the box.
Does this replace the iC-7?
No, the iC-7 is here to stay!
I have an iC-7, but now I want to upgrade to a uC-10, is that possible?

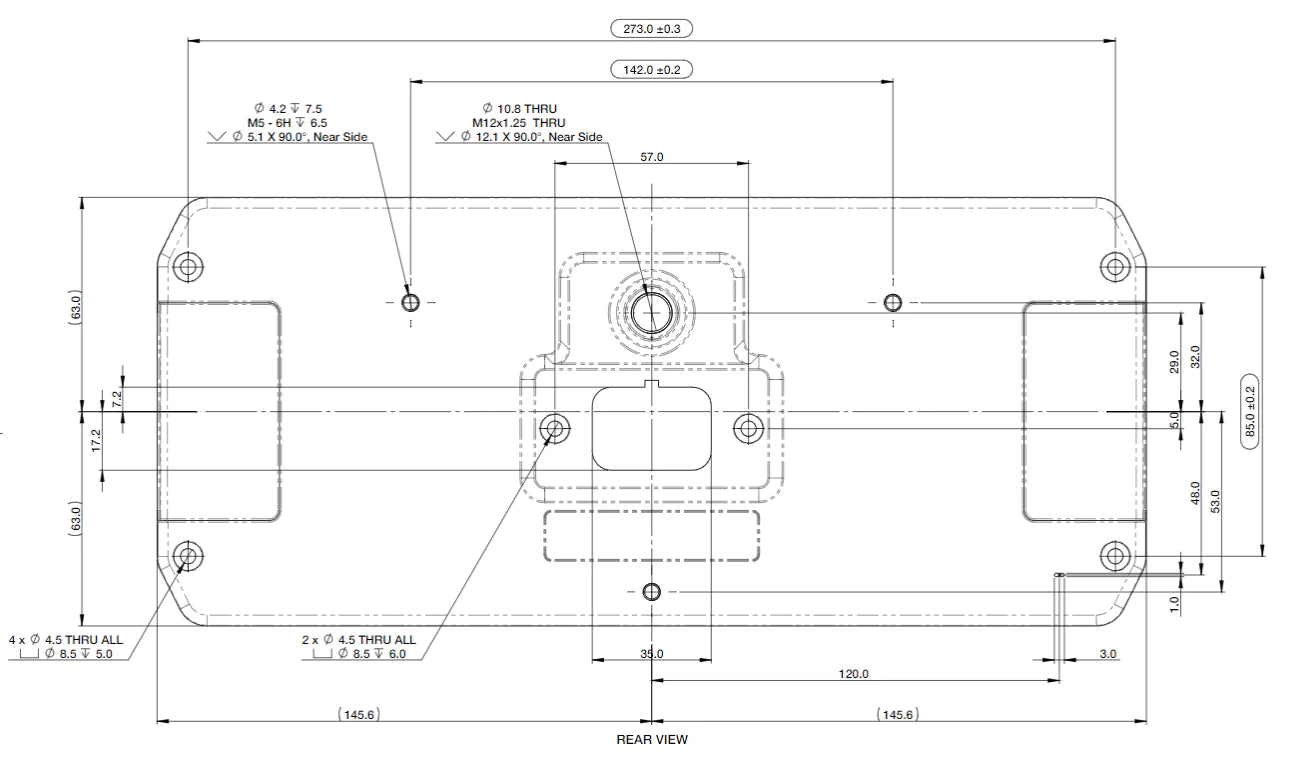

Not only is that possible, it is easy! The uC-10 has the same mounting points as the iC-7. So, the HT-060070 iC-7 Standard Dash Mount is compatible with the uC-10. The Superseal connector is the same as the iC-7, however, some re-pinning may be required, depending on your setup.

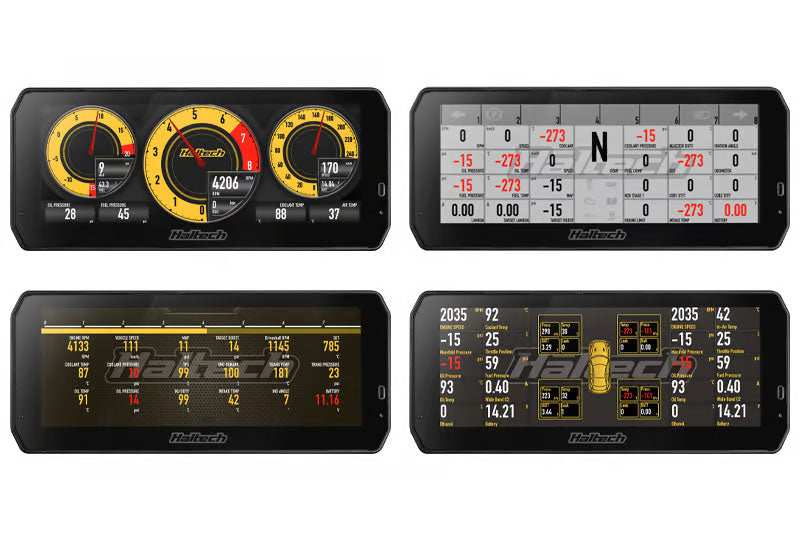

Can I customize the screen layouts?
Through the new dash section in our NSP software, you’re able to change channels and choose your colour settings on our default screens.

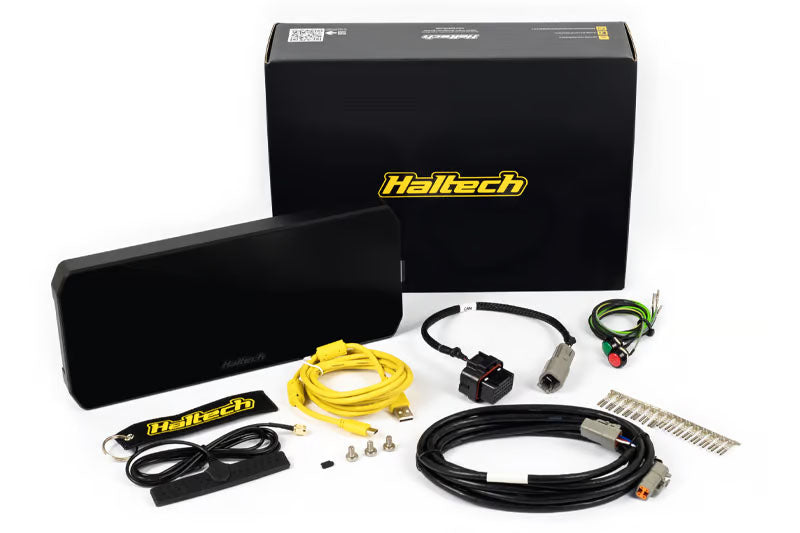

I see it comes with a Wi-Fi antenna in the box, does that mean it is Wi-Fi compatible?
Not yet. The uC-10 does have a Wi-Fi module in it which will become available in a future firmware update, so don’t lose your Wi-Fi antenna!
It logs data, so can it do lap timing?
No, not at the time of release.
When will it be available to purchase?
We’re hoping to launch in the first quarter of 2024.
