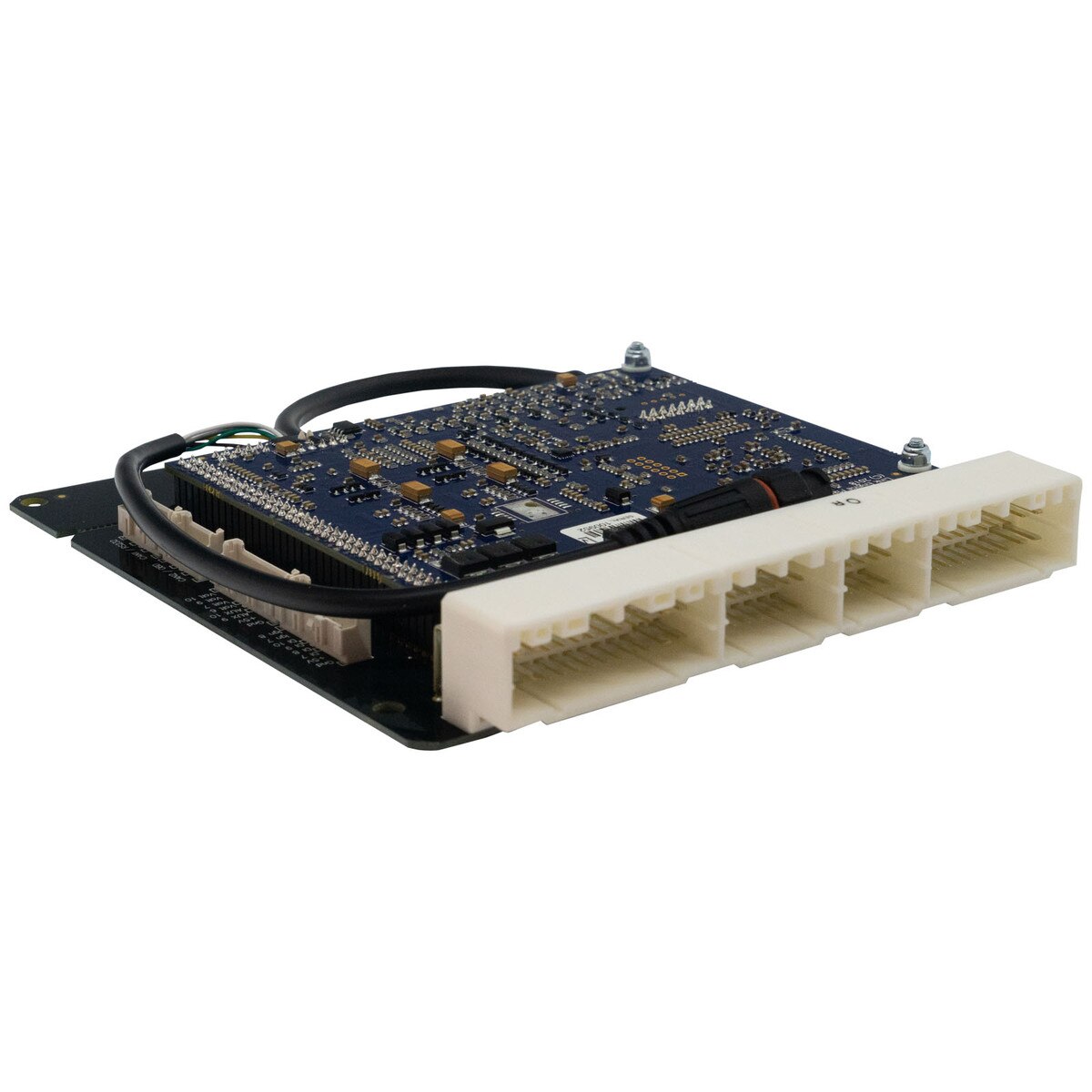

Easy to install. Affordable. Reliable. G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car. This ECU fits inside the factory OEM enclosure. Installation of the processing unit is a breeze, with no alteration of the factory wiring loom required for the models listed below.
This ECU is designed for the EVO 4-8 4G63 engine.

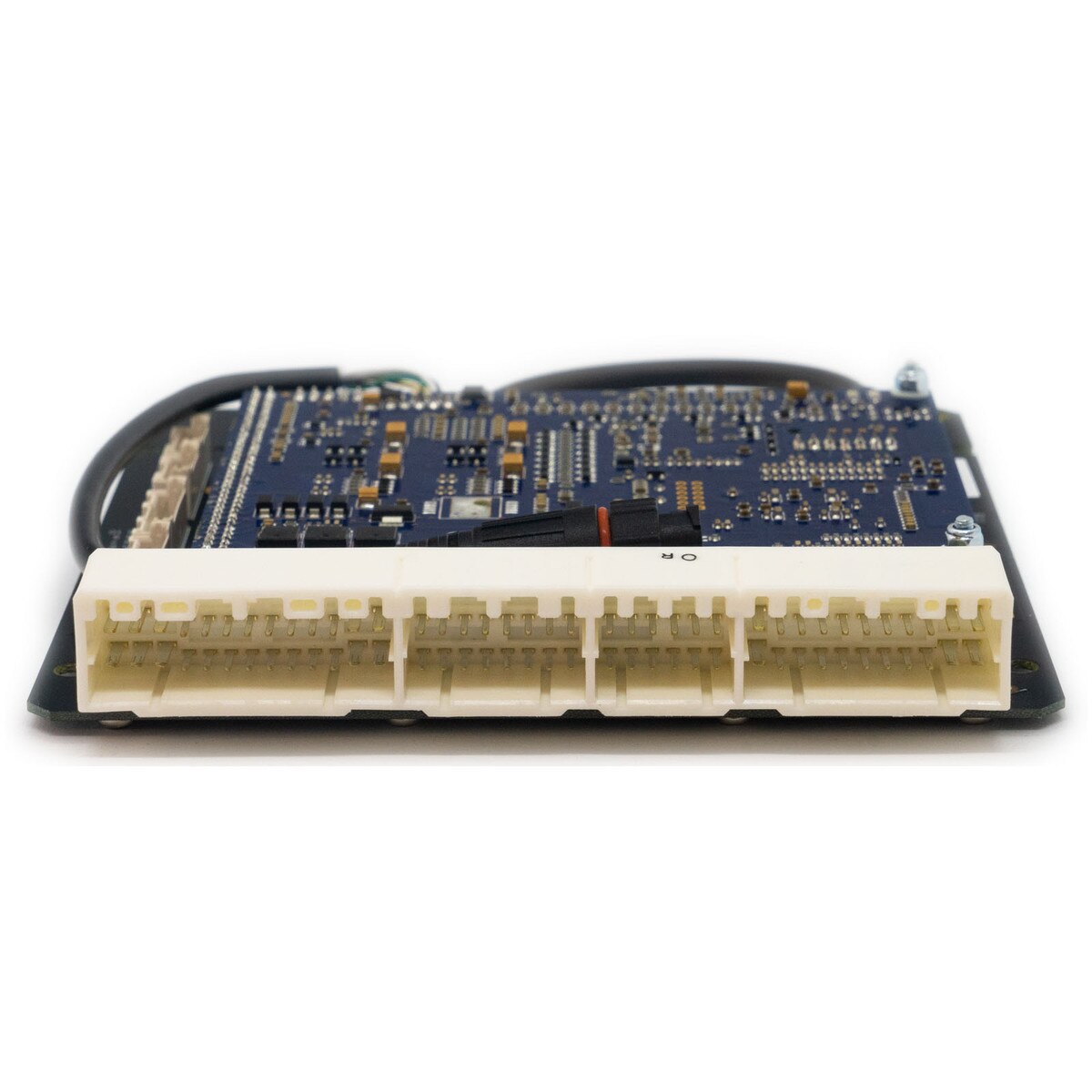

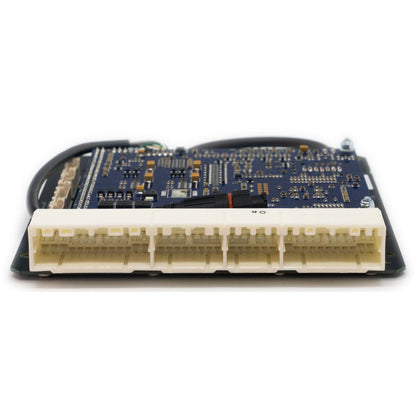

Please check your connector matches the header in the listed photo before purchasing.
This ECU works for manual transmissions only.
Includes onboard 4 bar or 7 bar MAP sensor
Most factory features are supported.
Check the features tab for I/O input & output expansion options
CT9A Lancer Evolution 8 (models with 4-plug ECU only)
*Some EVO 8’s have a 3 plug ECU. These applications will need the EVO9X Link ECU
G4X PlugIn Key Features (where applicable): Up to 6D fuel and ignition mapping Precision closed loop cam control (four cam, independent control) Sequential fuel delivery Digital triggering, all OEM patterns OEM idle hardware supported 5D boost control with three switchable tables Motorsport features - antilag, launch, flat shift Continuous barometric correction (on board) CAN port QuickTune - automated fuel tuning Individual cylinder correction USB tuning cable included Stats recording into on-board memory Gear compensations for spark, boost and fuel Real time selectable dual fuel, ignition and boost maps Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical Boost control referenced to gear, speed or throttle position 512 mega bytes data logging memory within the data storage unit Staged injection Knock with "windowing"
I/O Expansion Options The following expansion connector inputs/outputs are provided: The Mitsubishi Lancer Evolution IV - VIII plug-in ECU has two expansion connectors.
Expansion connector 1: Gnd Sensor Ground Only +5V Out Low Current +5V Supply DI 7 Digital input DI 8 Digital input DI 9 Digital input Aux 4 Auxiliary Output Ign 7 Ignition 7 Auxiliary Output Ign 8 Ignition 8 Auxiliary Output
Expansion Connector 2 Gnd Sensor Ground Only +5V Out Low Current +5V Supply Aux 9 EThrottle - can't be used as an Aux Out Aux 10 Auxiliary Output An Volt 6 Analog 0-5V input An Volt 7 Analog 0-5V input An Volt 9 Analog 0-5V input An Volt 10 Analog 0-5V input
