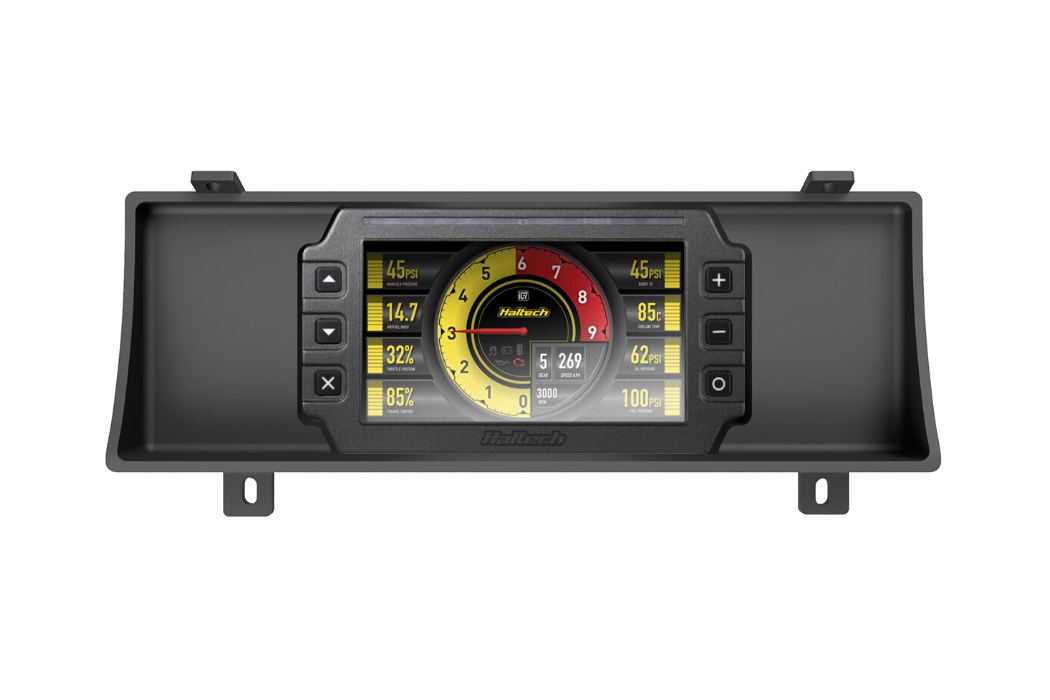

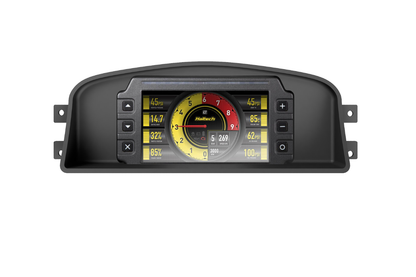

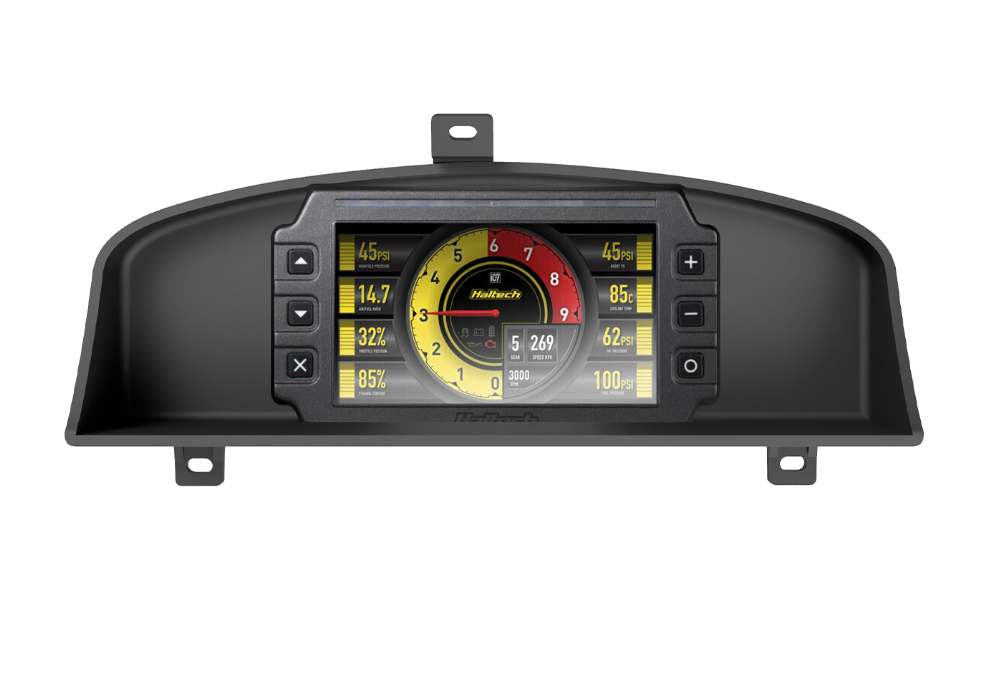

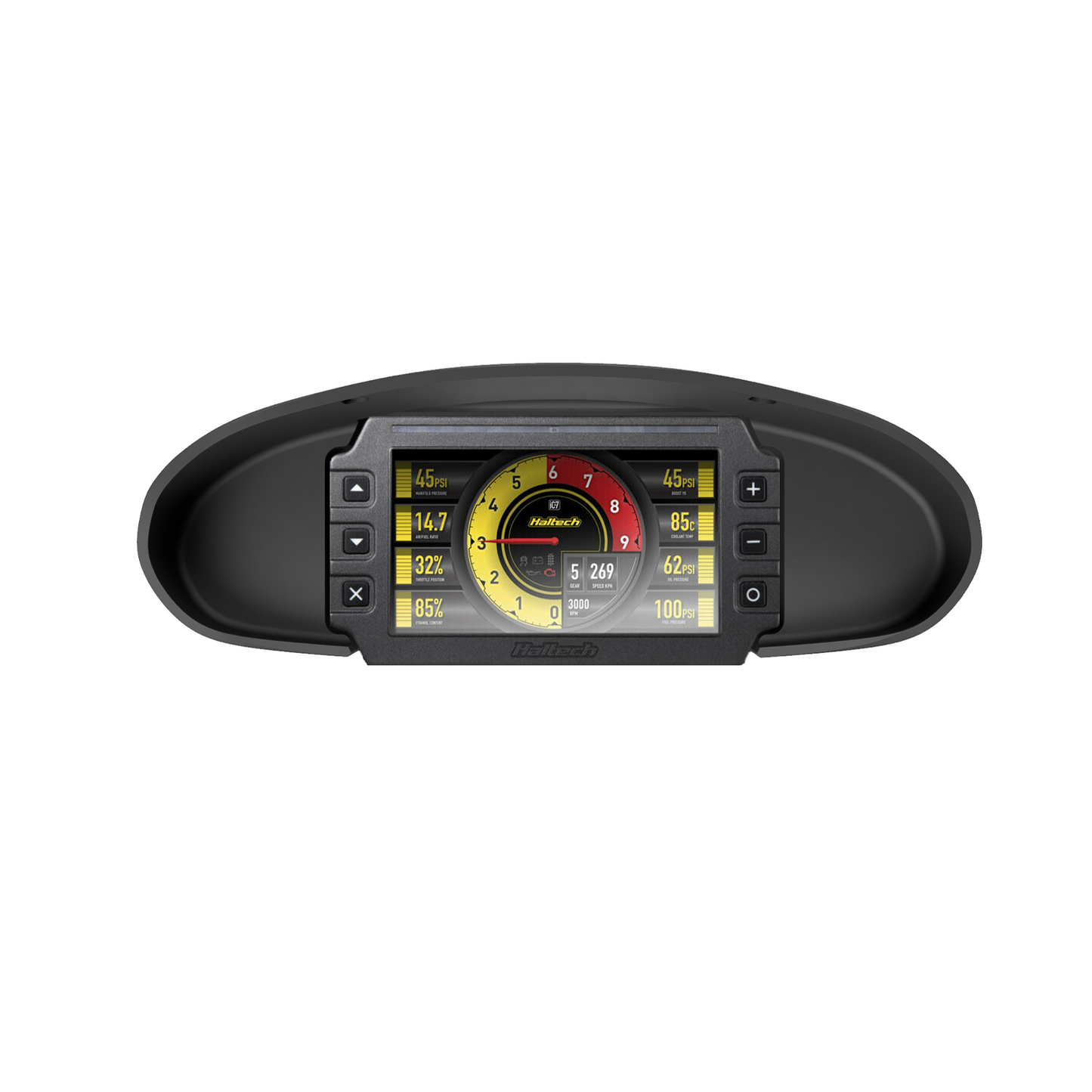

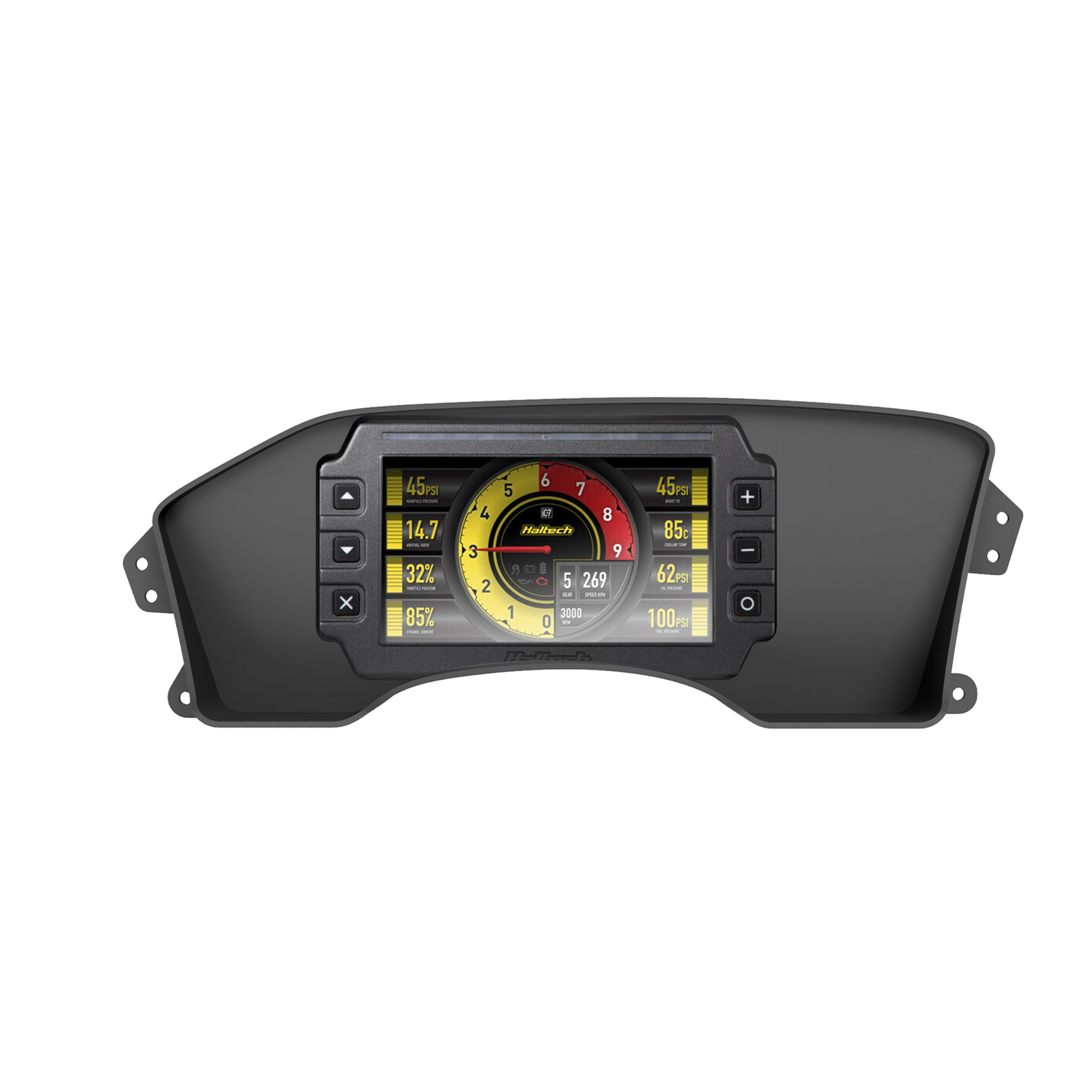

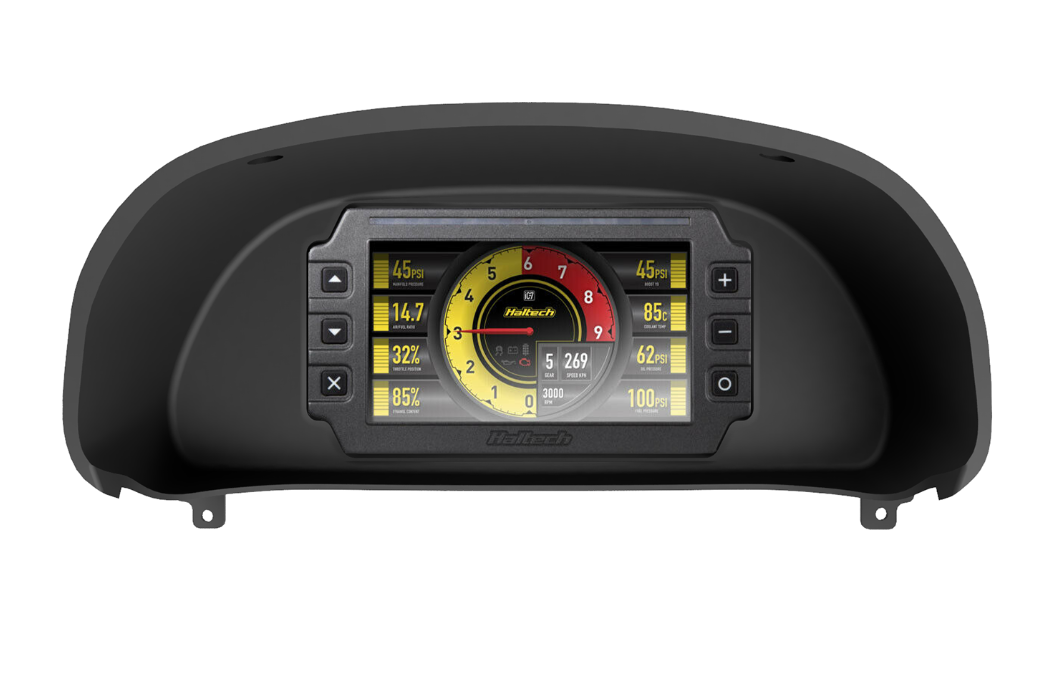

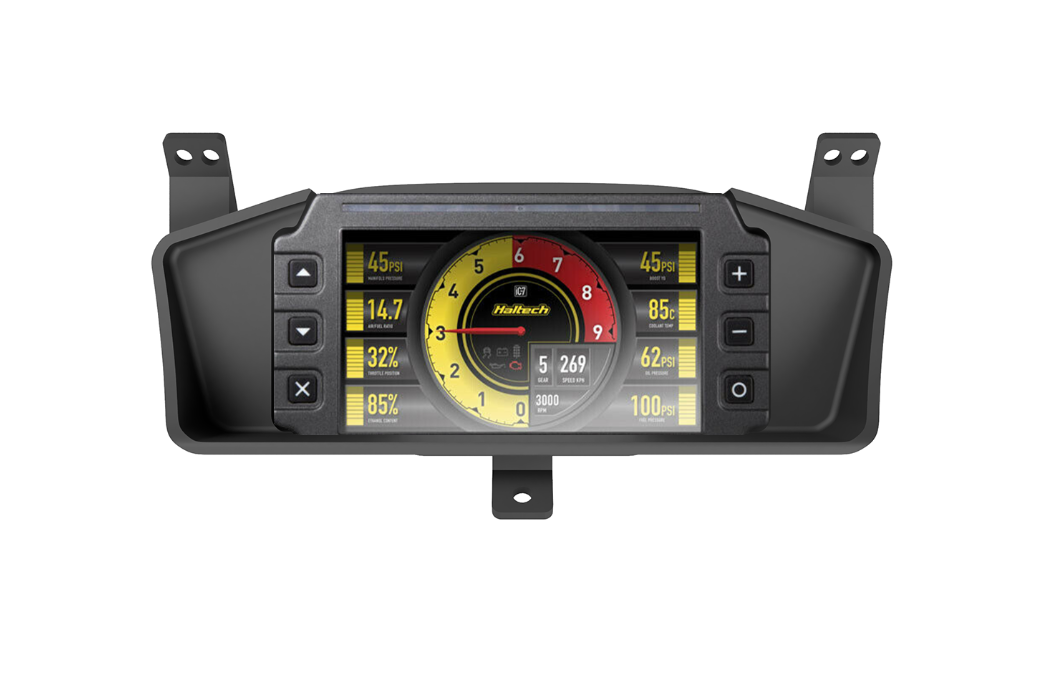

Haltech iC-7 Dash and Recessed Cluster Mount Combo HT-067010

$1,394.00 USD

~~$1,494.00 USD~~ $1,394.00 USD

Sale Sold out

Free Worldwide Shipping.

Vehicle

This product is a bundle that includes:

1 x Mako Motorsport Recessed Dash mount for the iC-7
1 x Haltech iC-7 Display kit with CAN Cable (HT-067010) (if you need the OBD-II version please order your dash here instead)

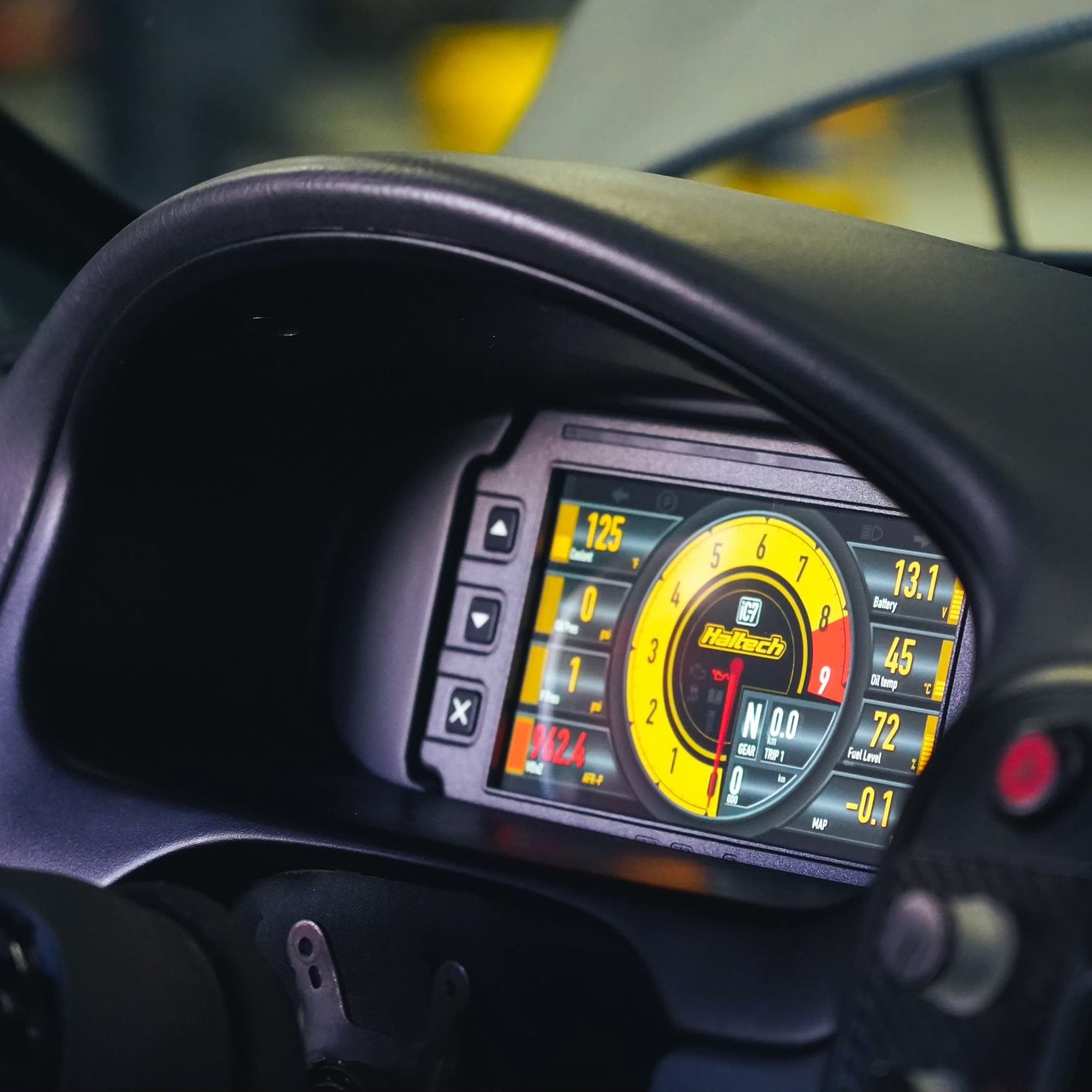

Haltech iC-7

Suits: All current Haltech ECUs via CAN. Also Plug'n'Play compatible with the following aftermarket ECU brands: Link, MaxxECU, Microtech, MoTeC M1 series, MoTeC hundred series- (M400,600,800 gold box ECUs), Syvecs.

Includes: Haltech iC-7 Display Dash, 34 Pin main connector harness (including spare pins for input wiring), DTM-4 to DTM-4 CAN extension cable 3.0m (118in), USB to M5 right angle cable, USB Cable, Mounting Screws, Quick Start Guide, Haltech stickers and a fabric keyring tag

DASH OVERVIEW

With a crisp, clear and full colour display, the all new Haltech iC-7 Display Dash lets you see things in a brand new way.

Designed and manufactured in Australia with motoring enthusiasts in mind, the iC-7 offers market-leading features in a unique, state-of-the-art package.

Featuring custom screen displays,I/O sharing, datalogging, auto-dimming ambient light reactive brightness, user-programmable multi-colour shift light bar, the iC-7 connects directly to all current Haltech ECUs via a CAN network.

• Ideal replacement for individual analogue gauge clusters.

• Easy to install and configure.

• User adjustable brightness control with automatic dimming.

• User configurable channels, units and alarms.

• User definable Inputs & Outputs

• 9 x Analog Voltage Inputs (AVI)

• 3 x Digital Pulsed Inputs (DPI)

• 1 x Tachometer input

• 4 x Digital Pulsed Outputs (DPO)

• 14 programmable, seven colour shift light LEDs.

• On-board datalogging (512MB)

• Controlled via easily accessible, face-mounted control buttons.

• Configuration via Haltech software and USB cable.

• IP64 (Dust-tight and protected against water splashes).

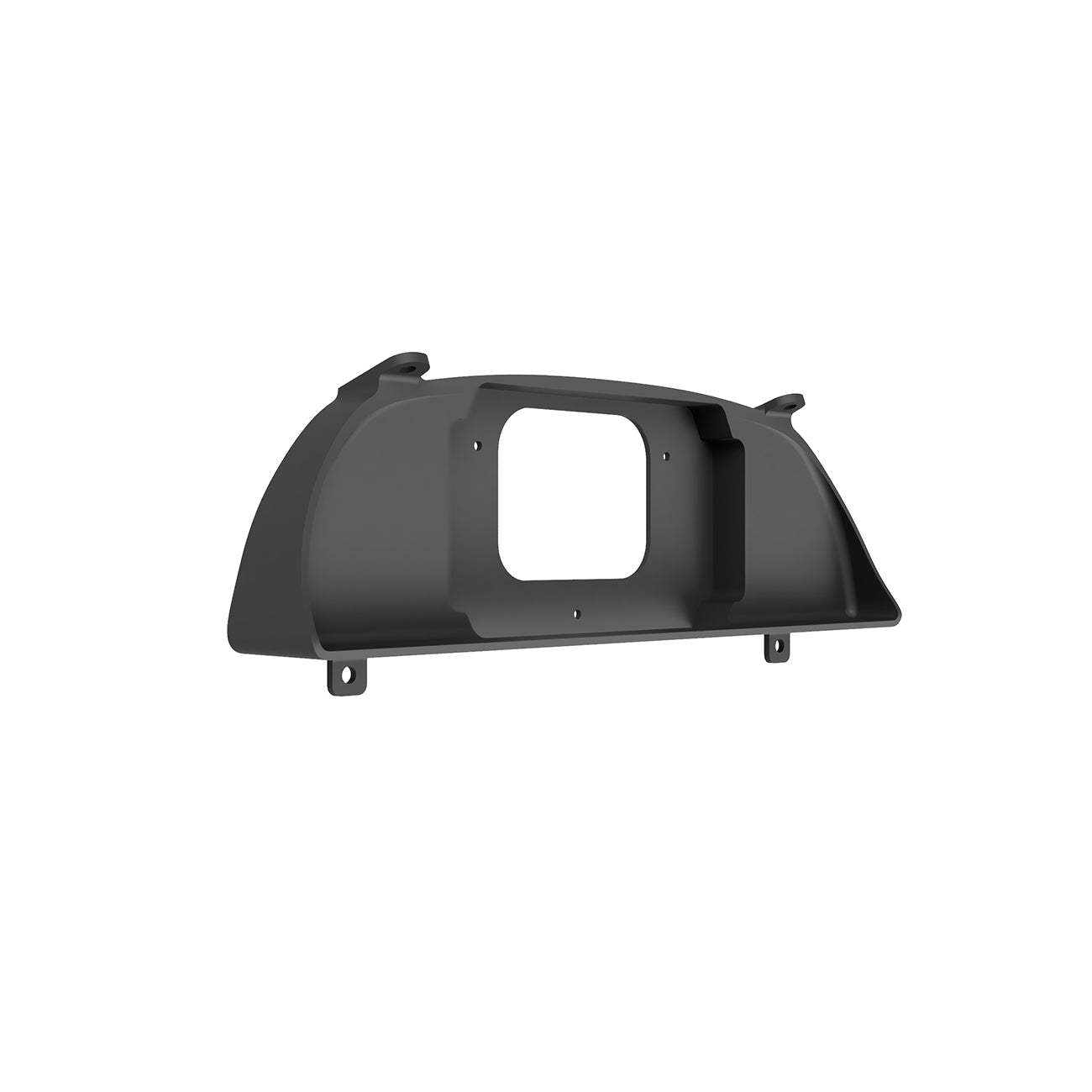

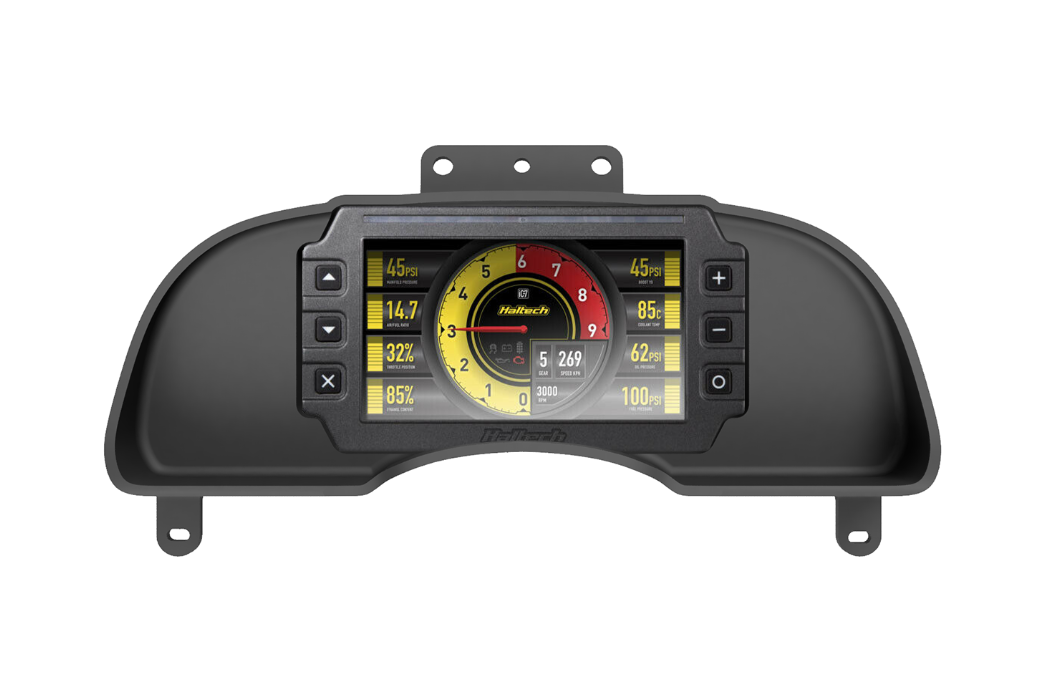

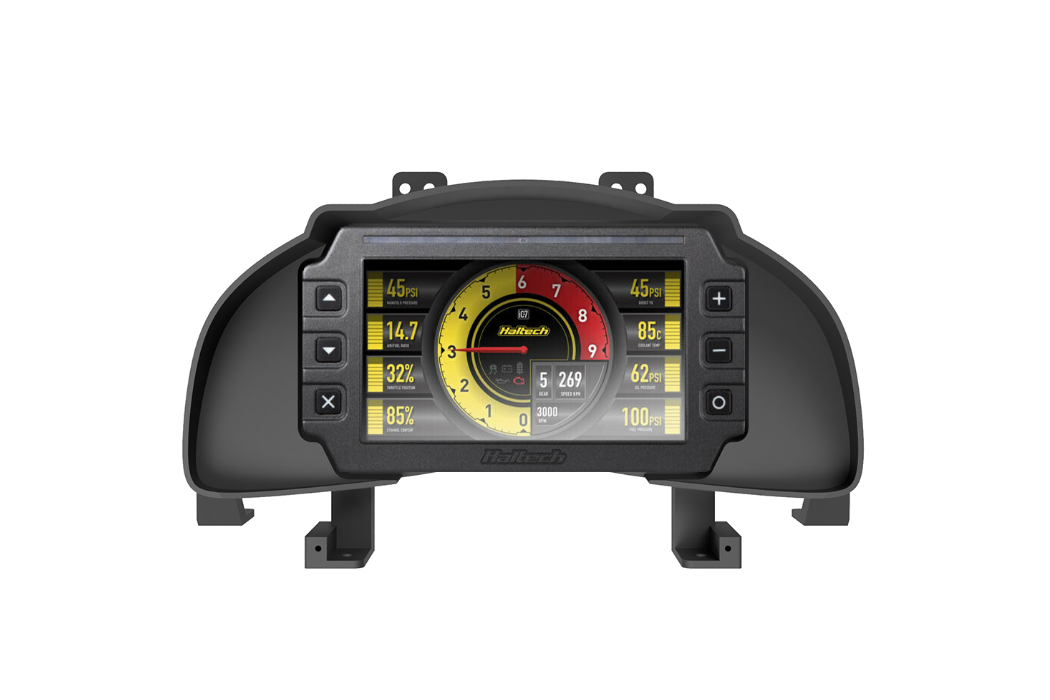

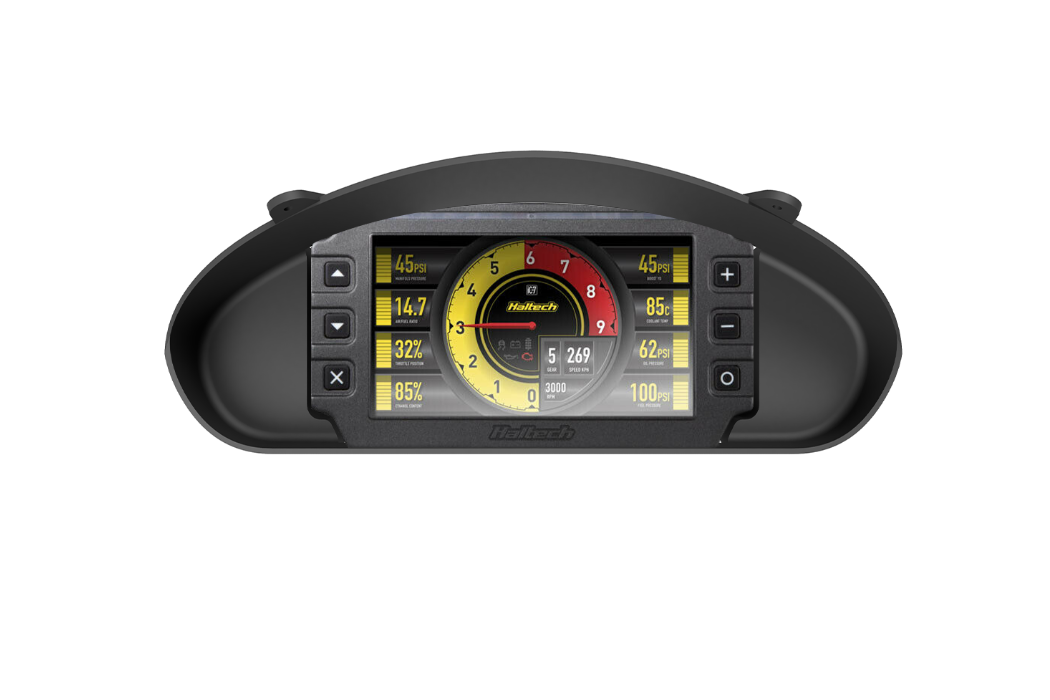

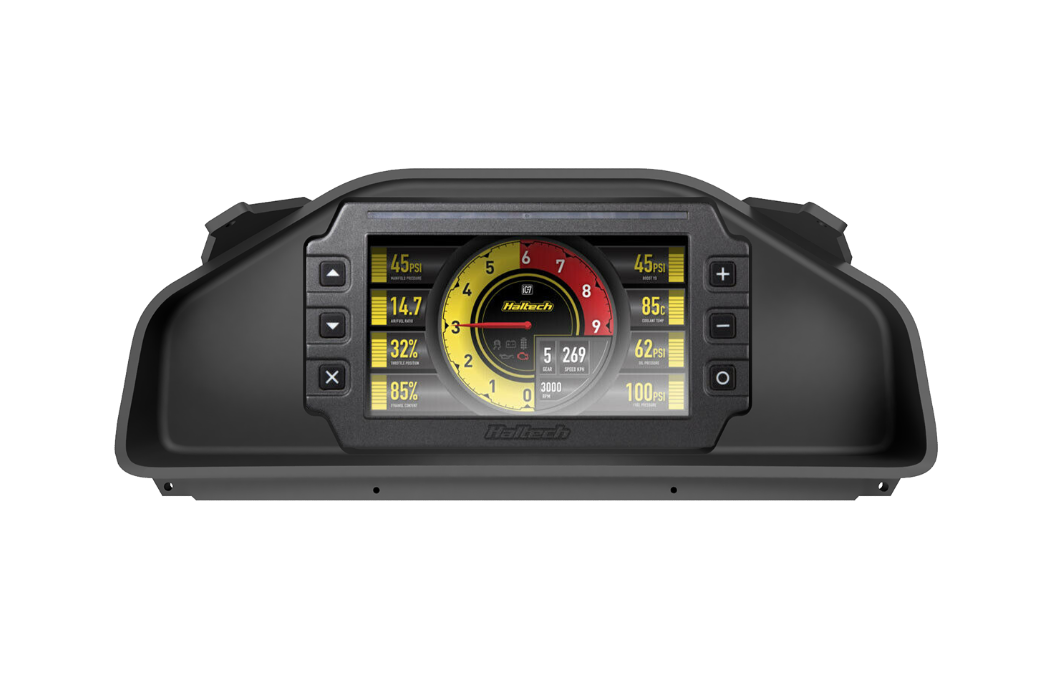

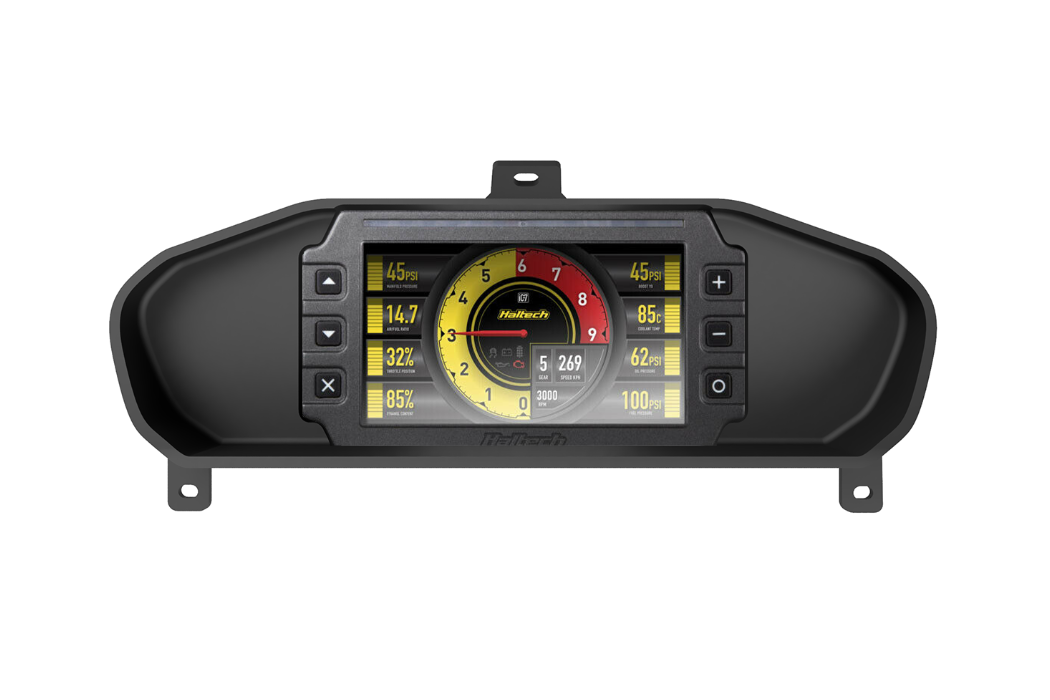

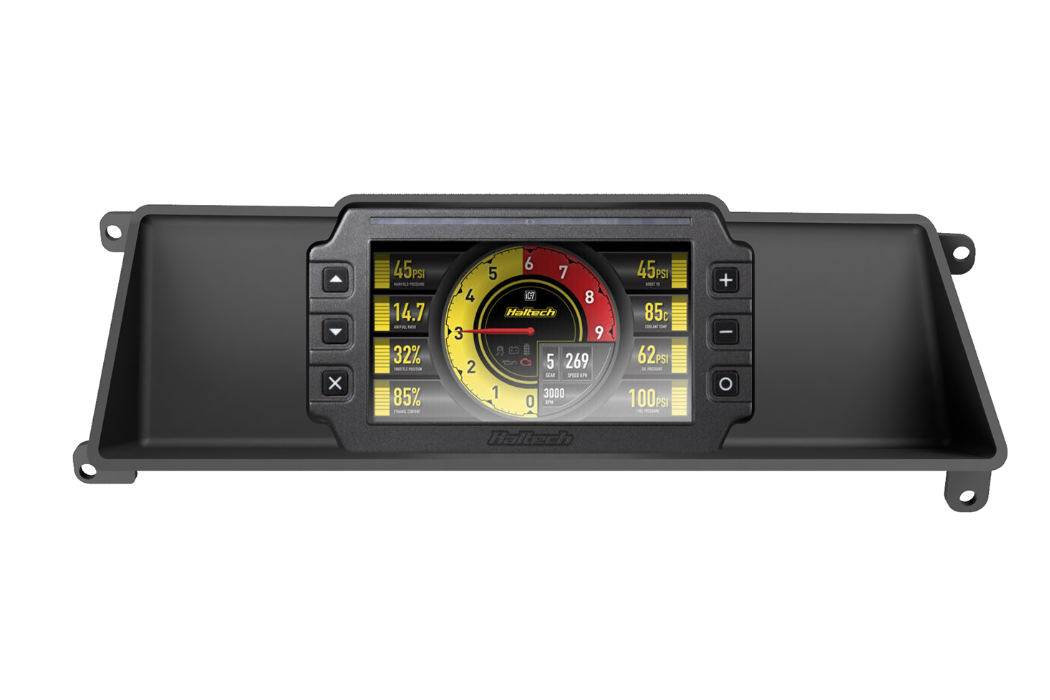

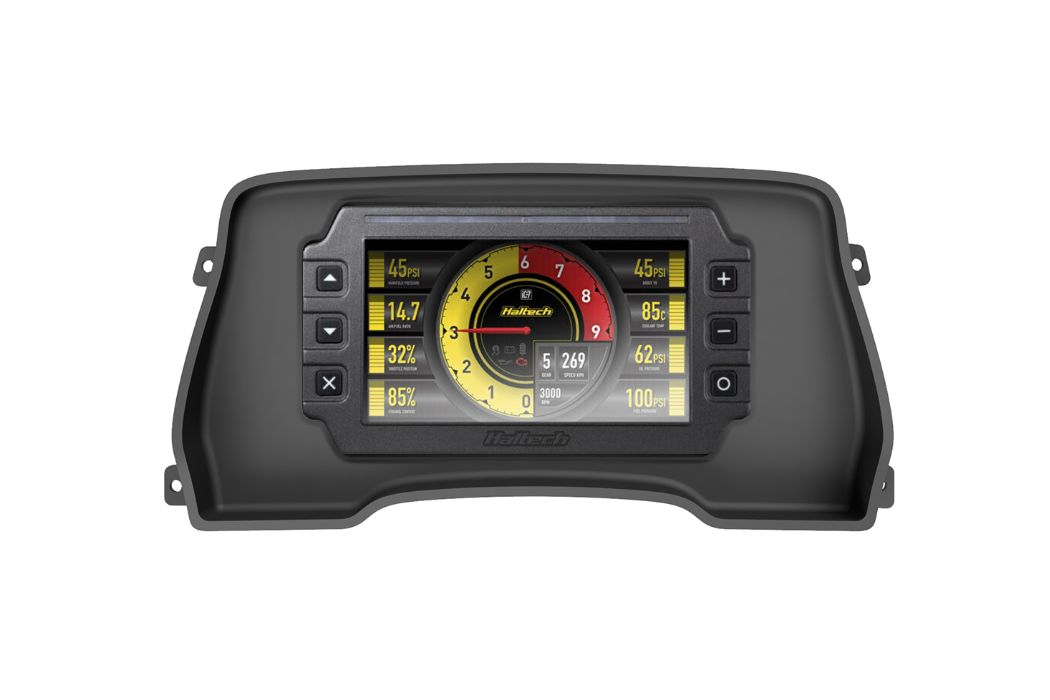

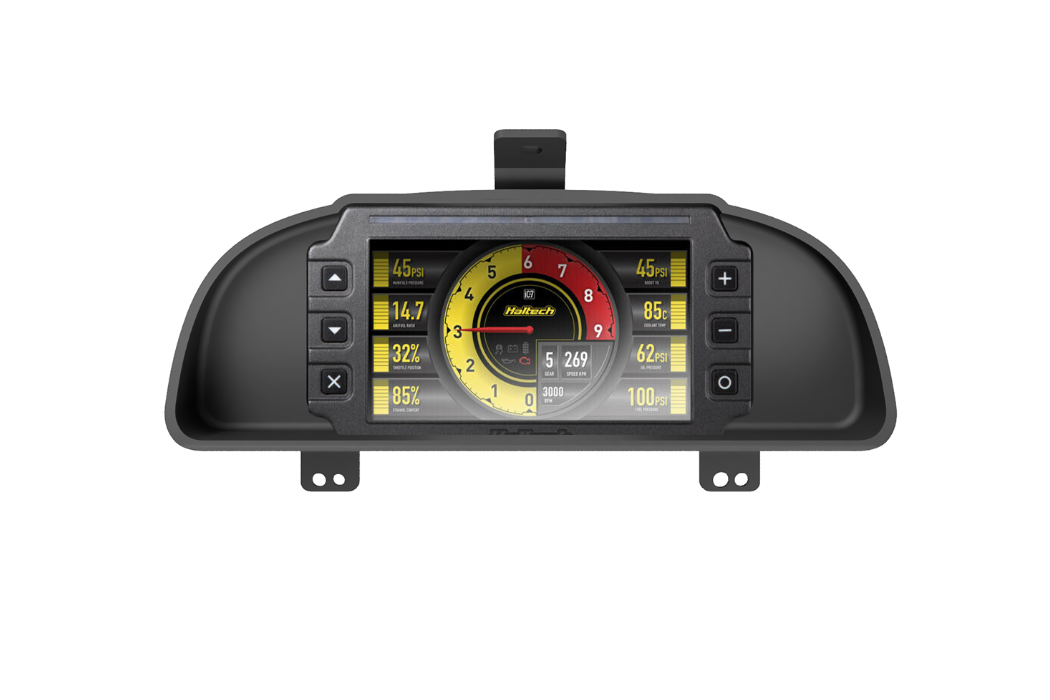

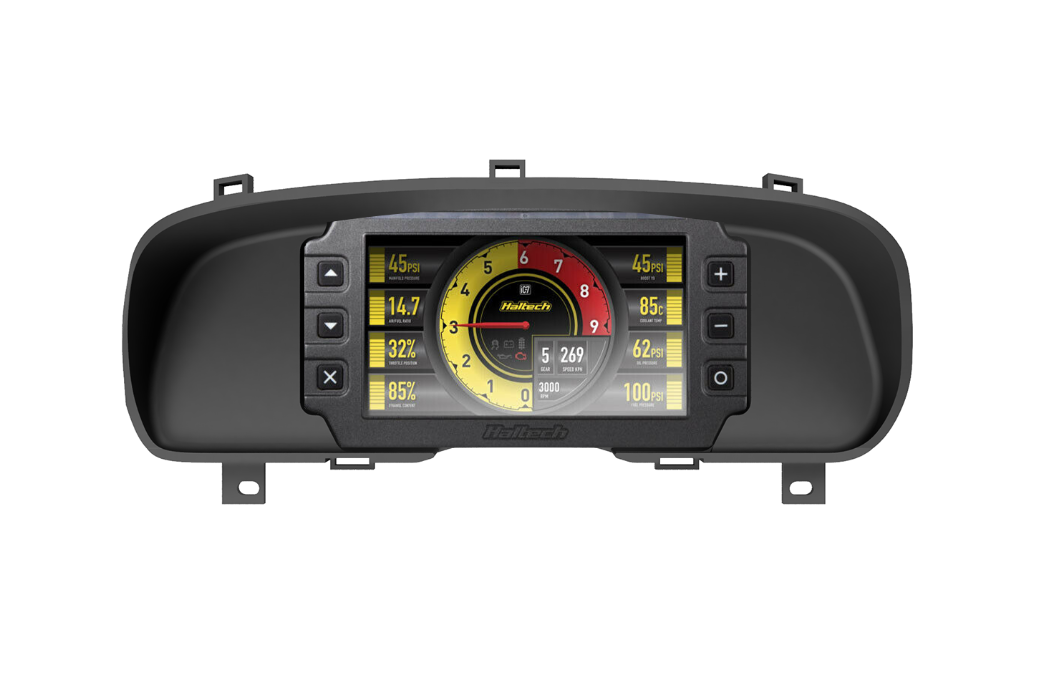

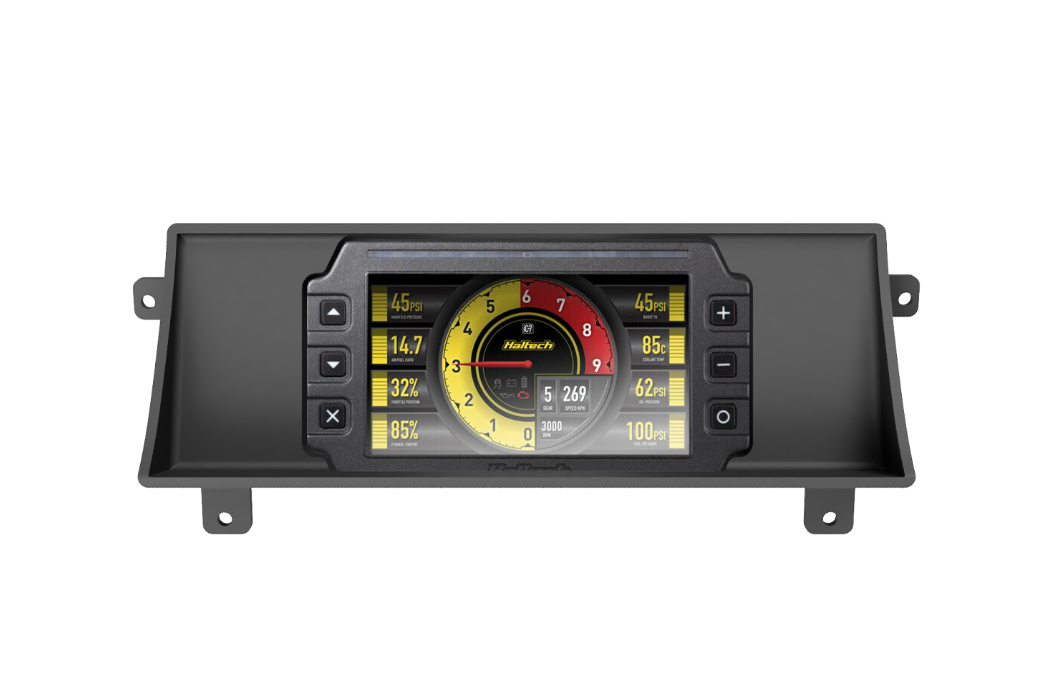

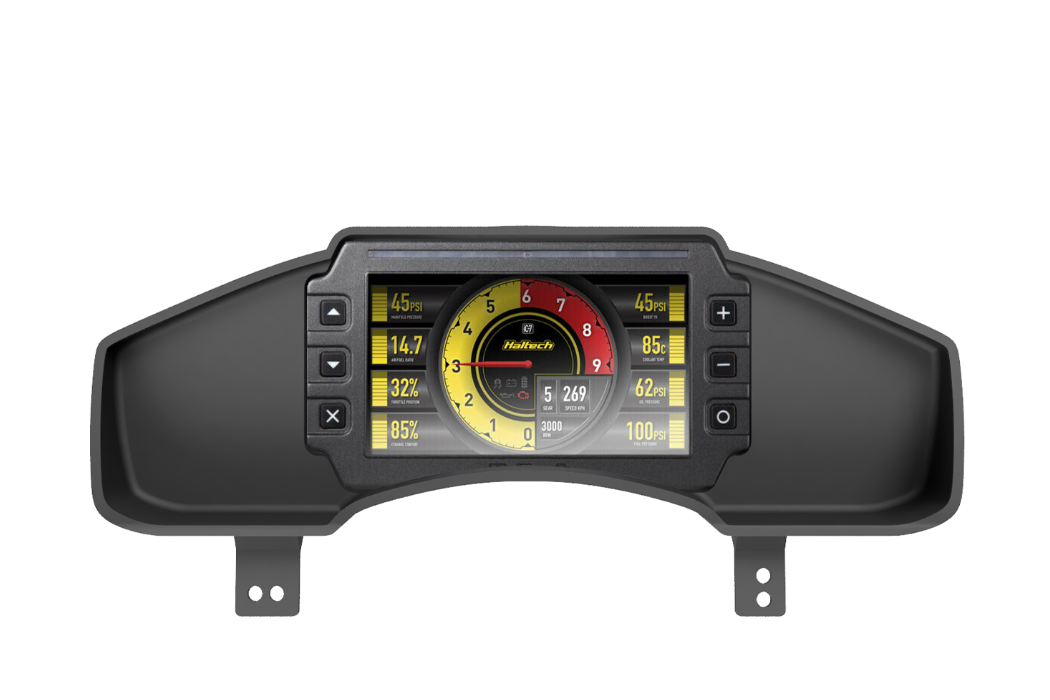

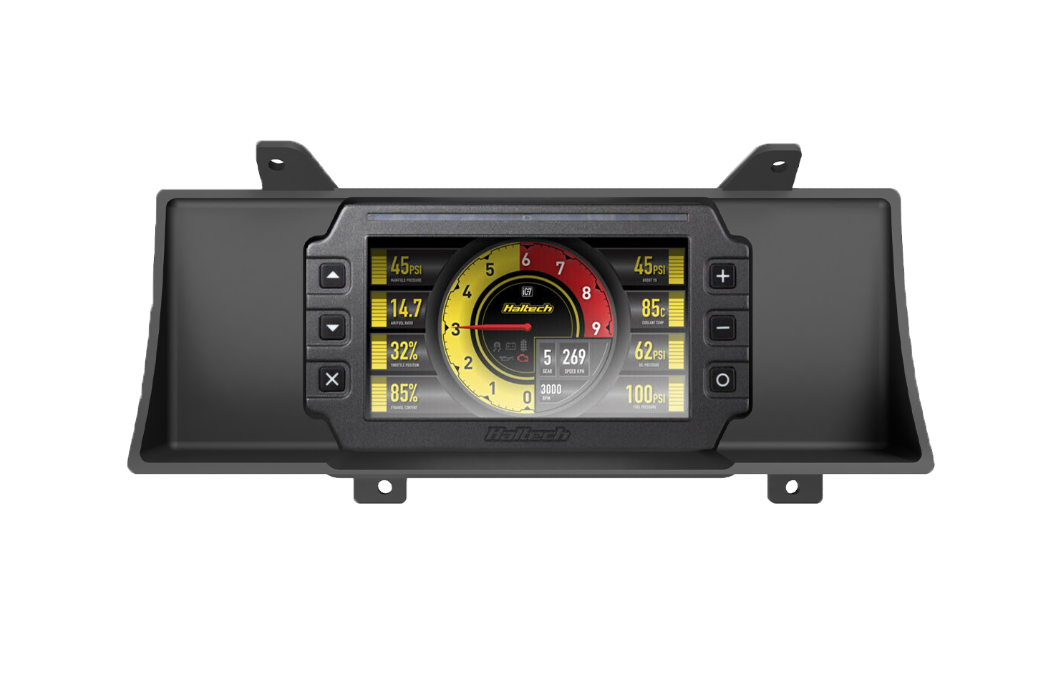

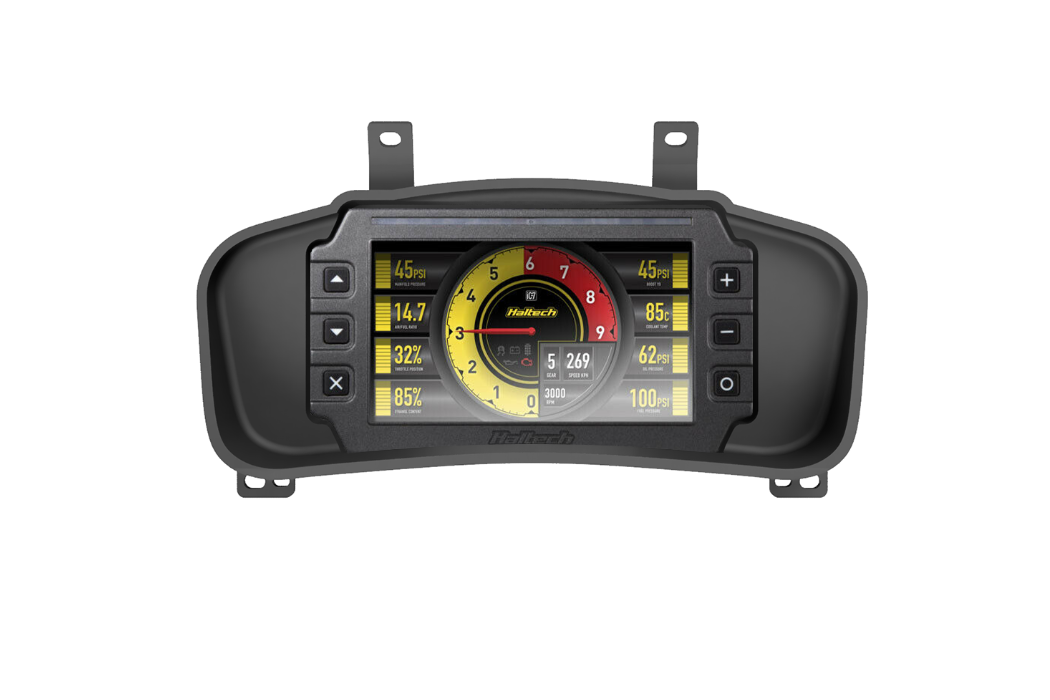

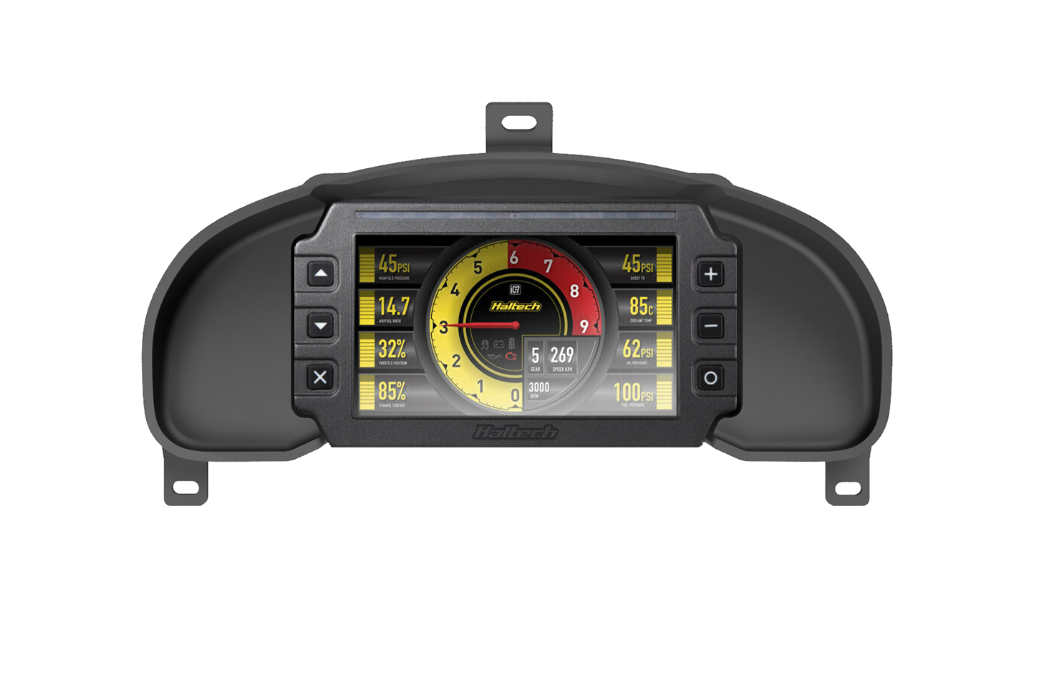

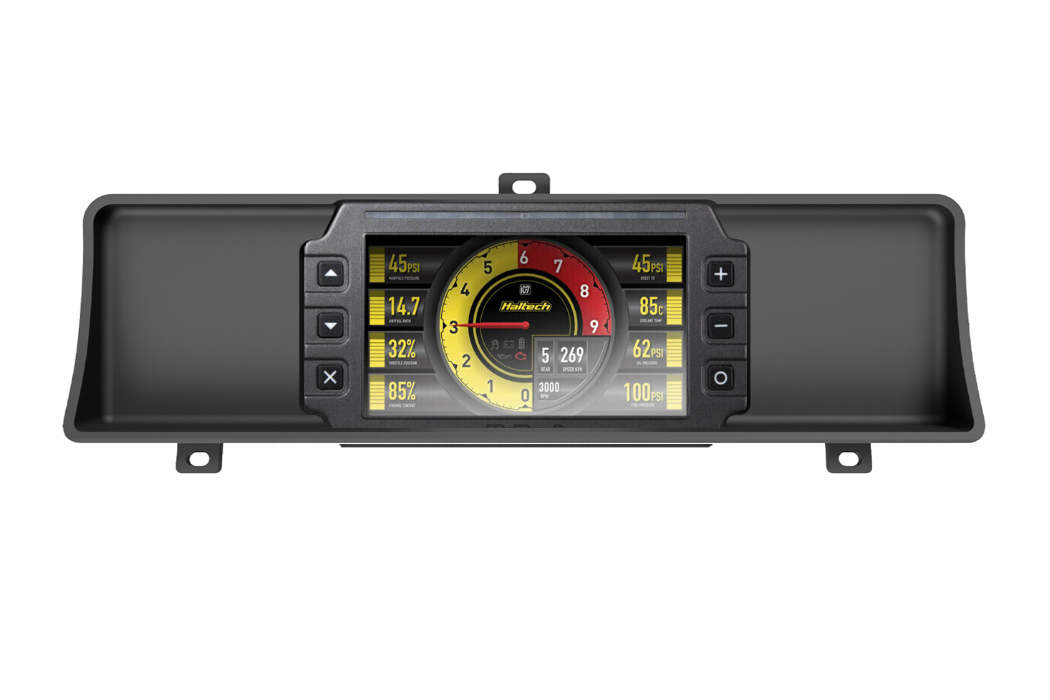

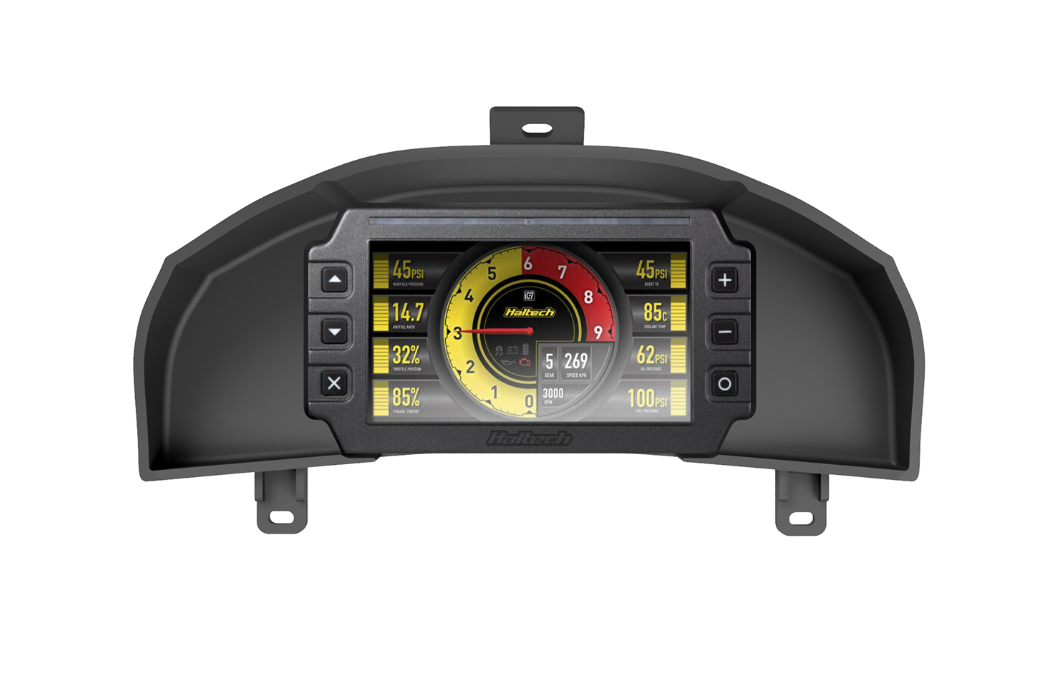

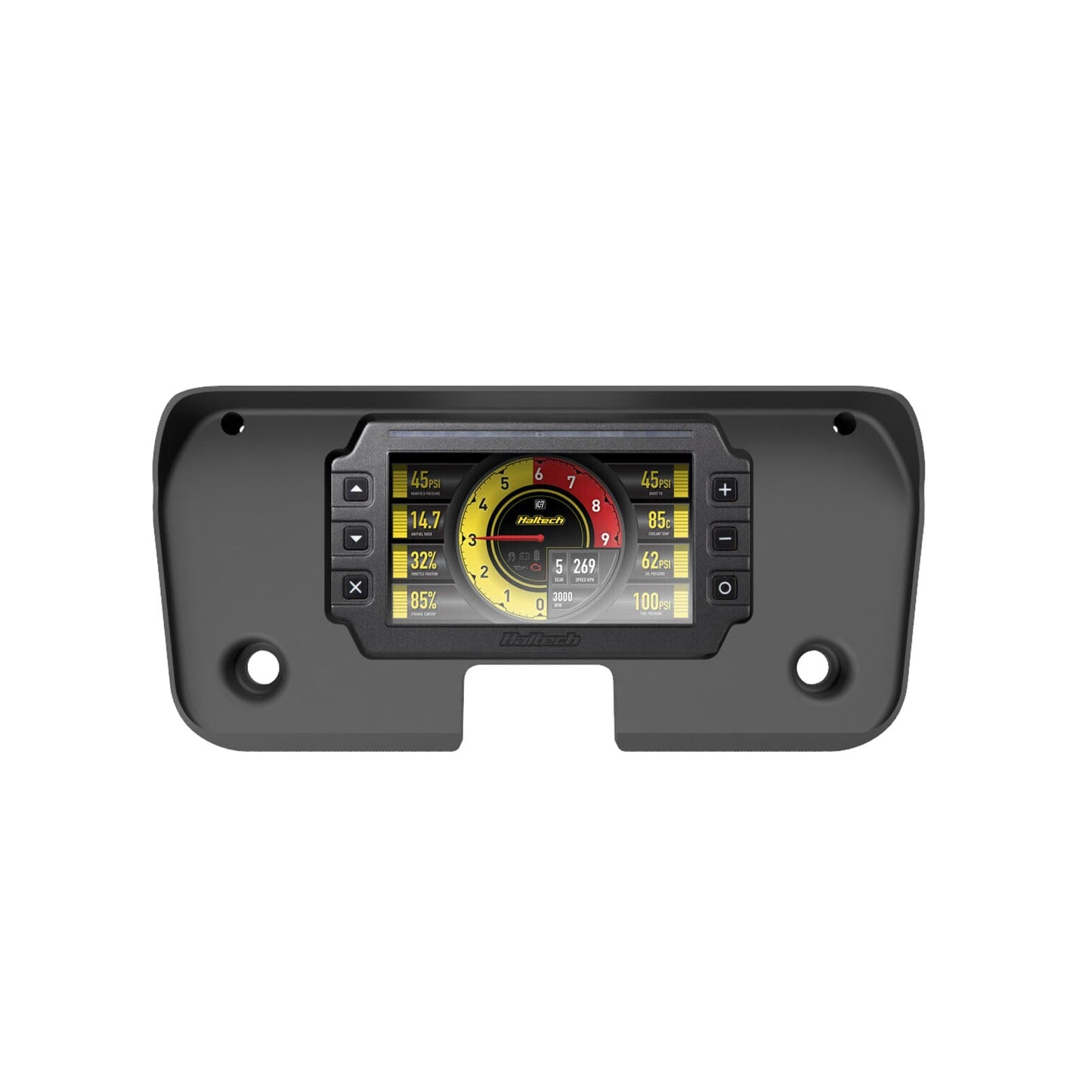

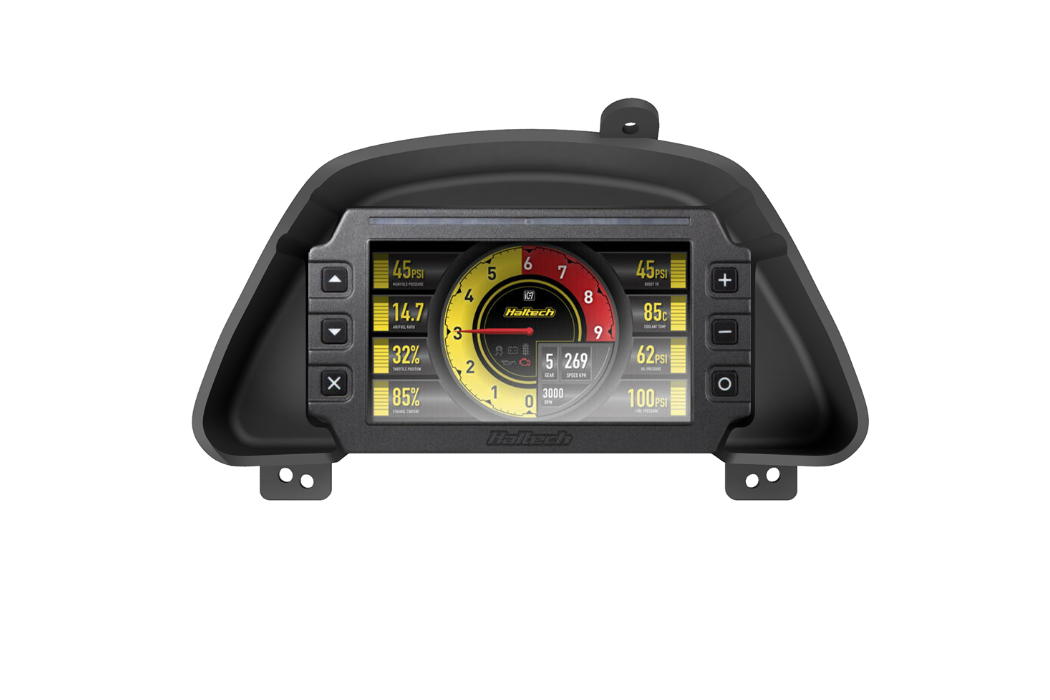

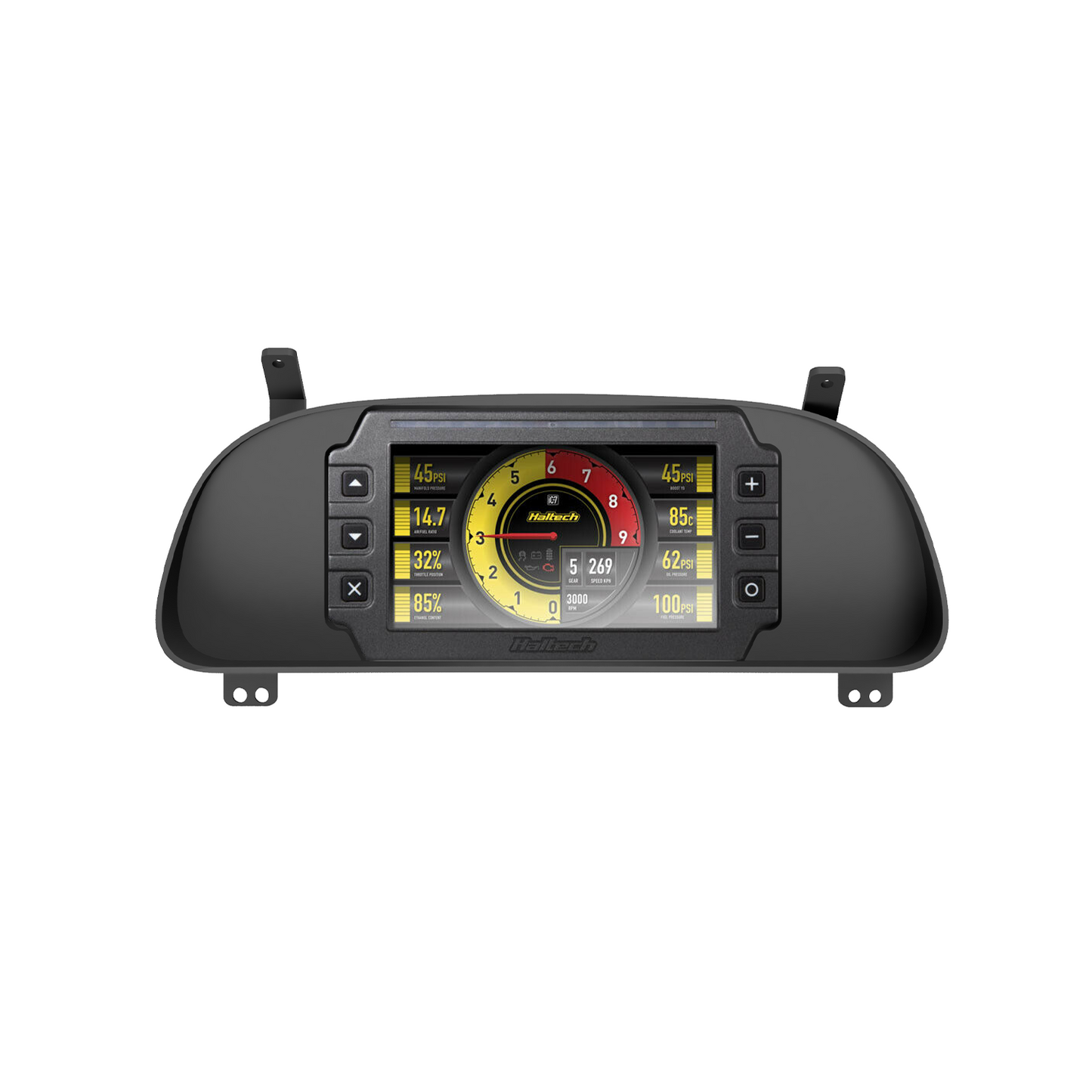

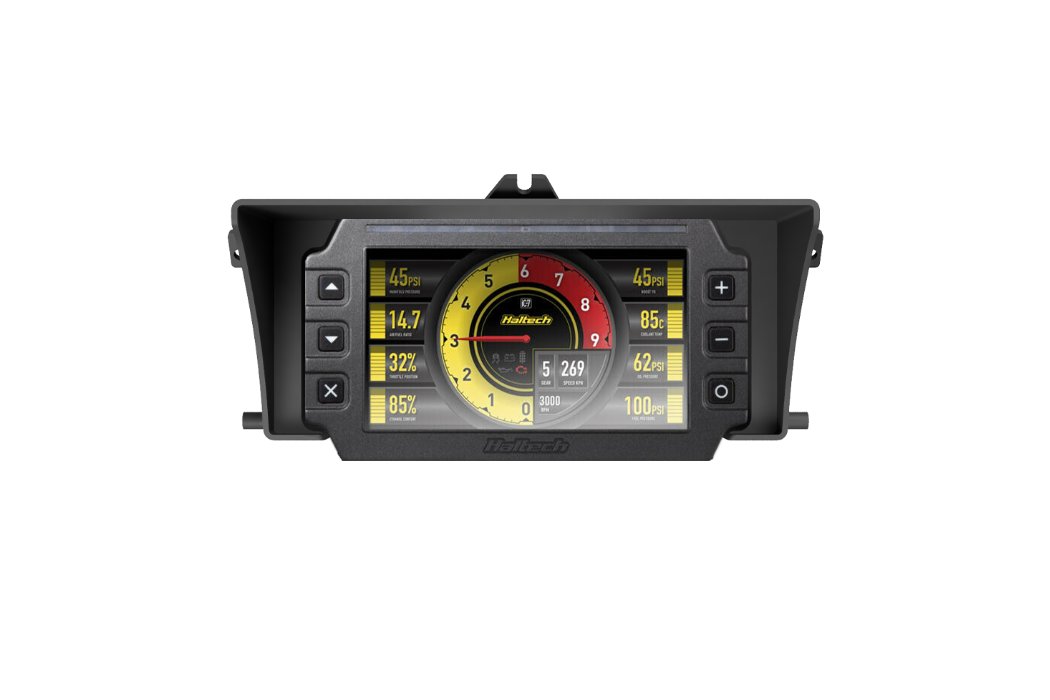

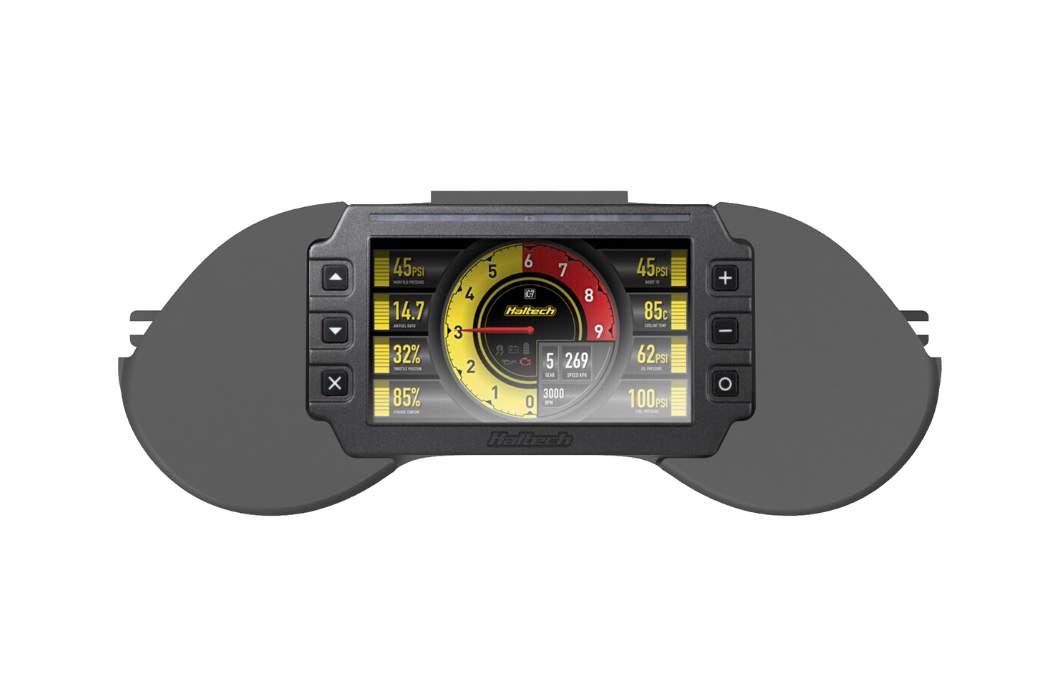

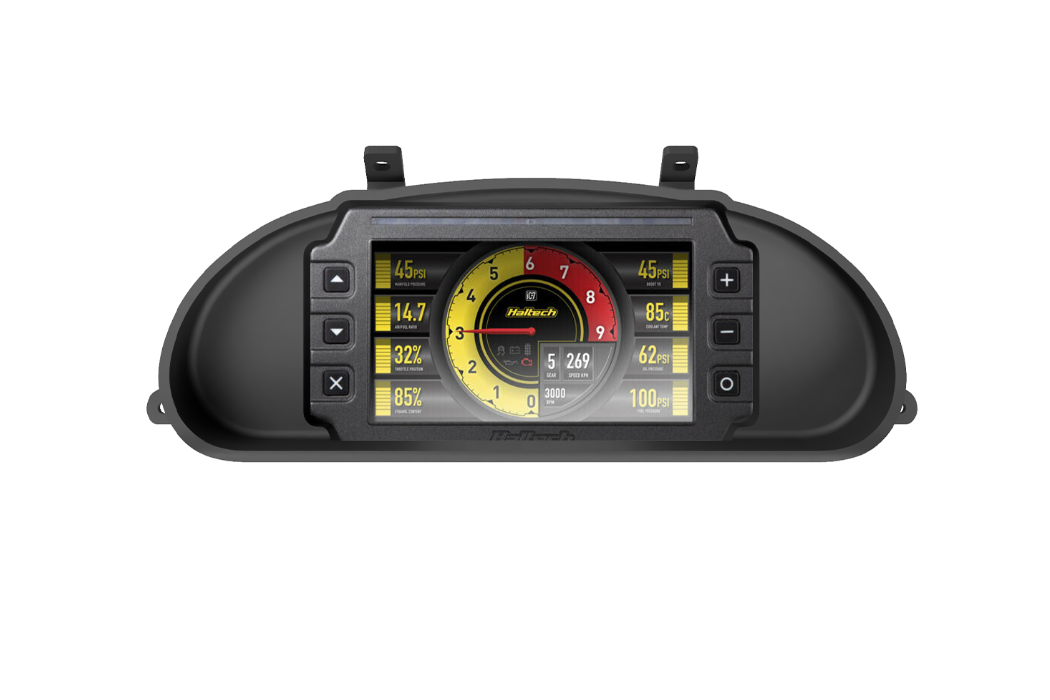

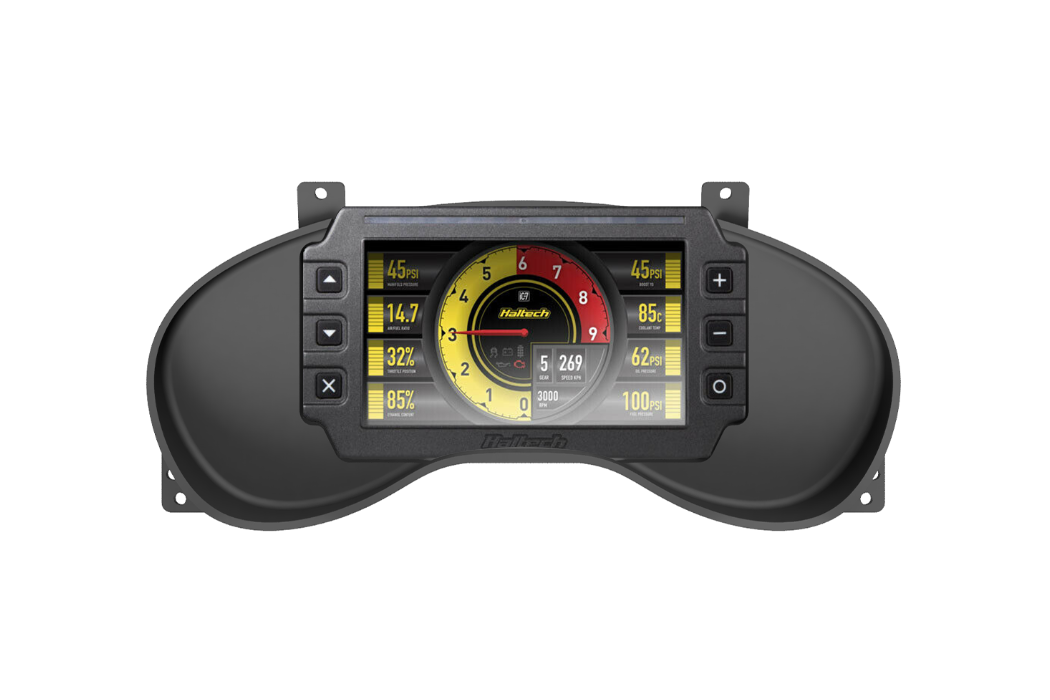

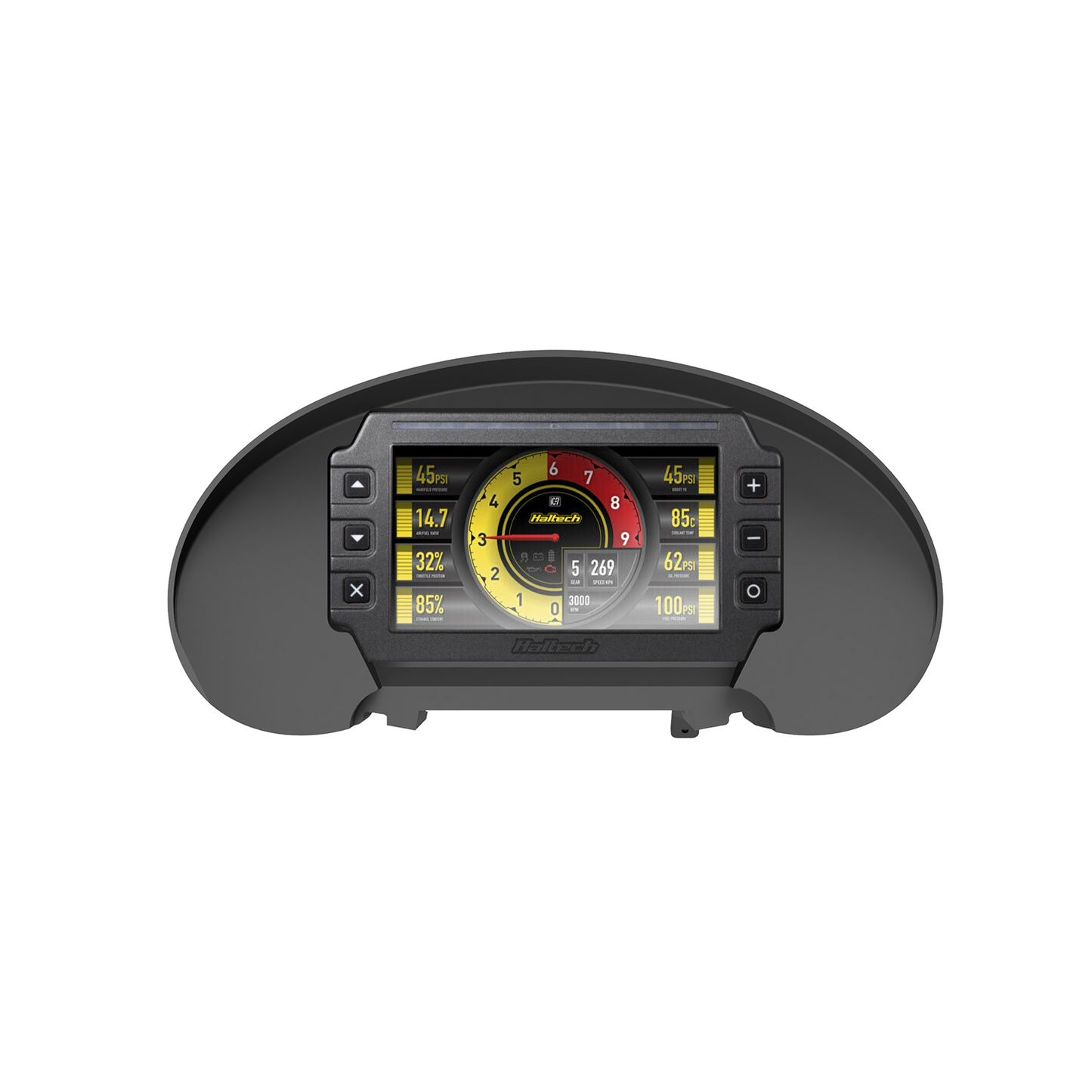

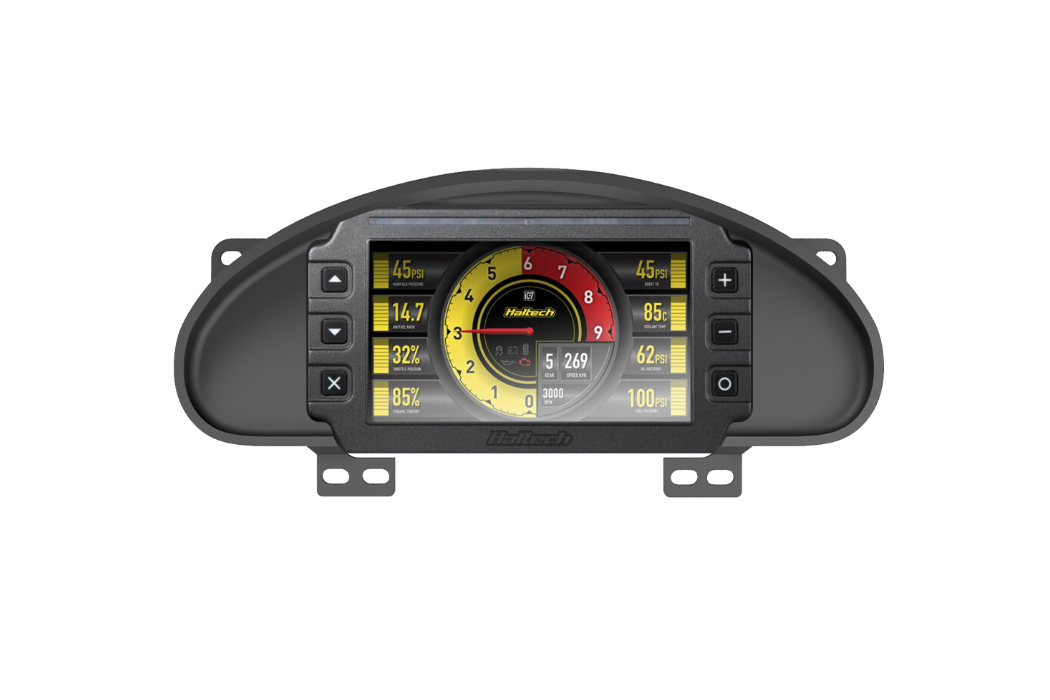

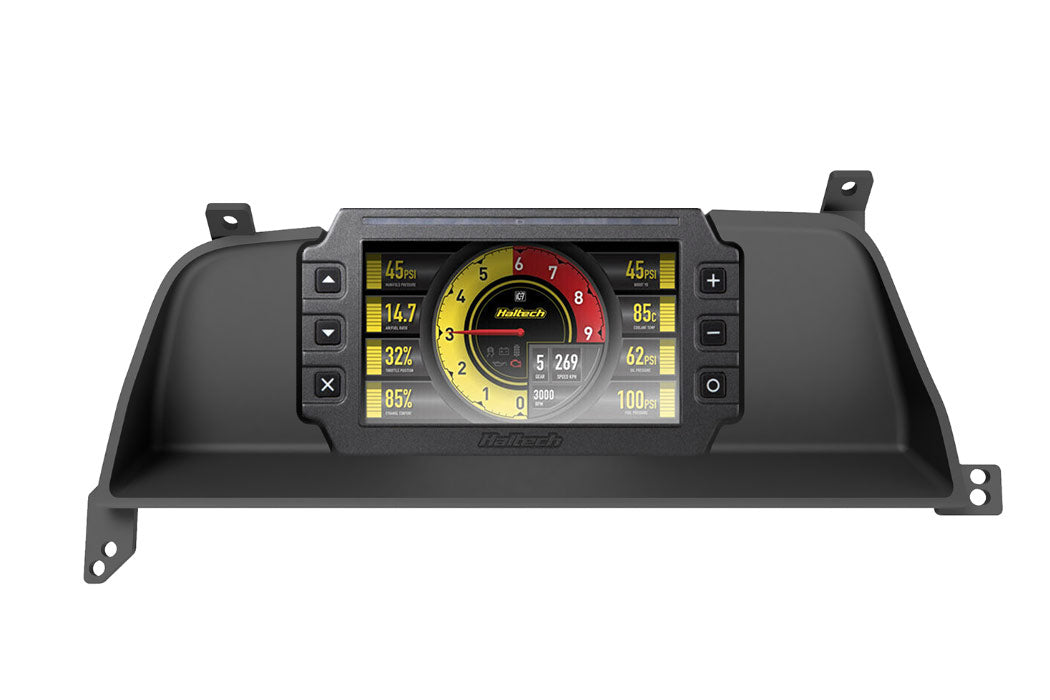

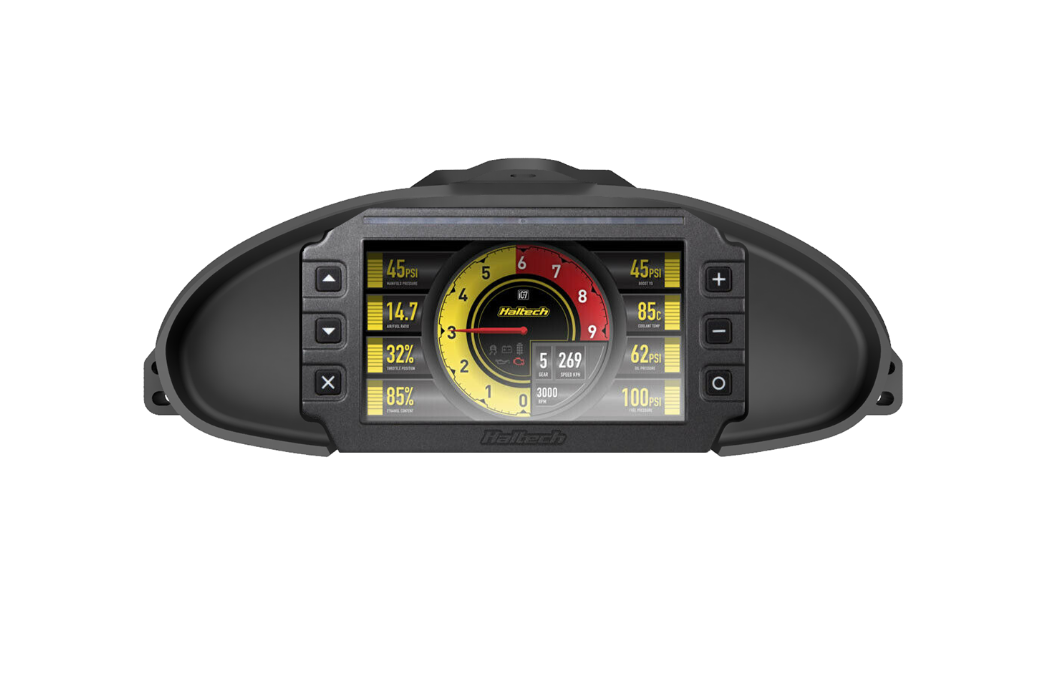

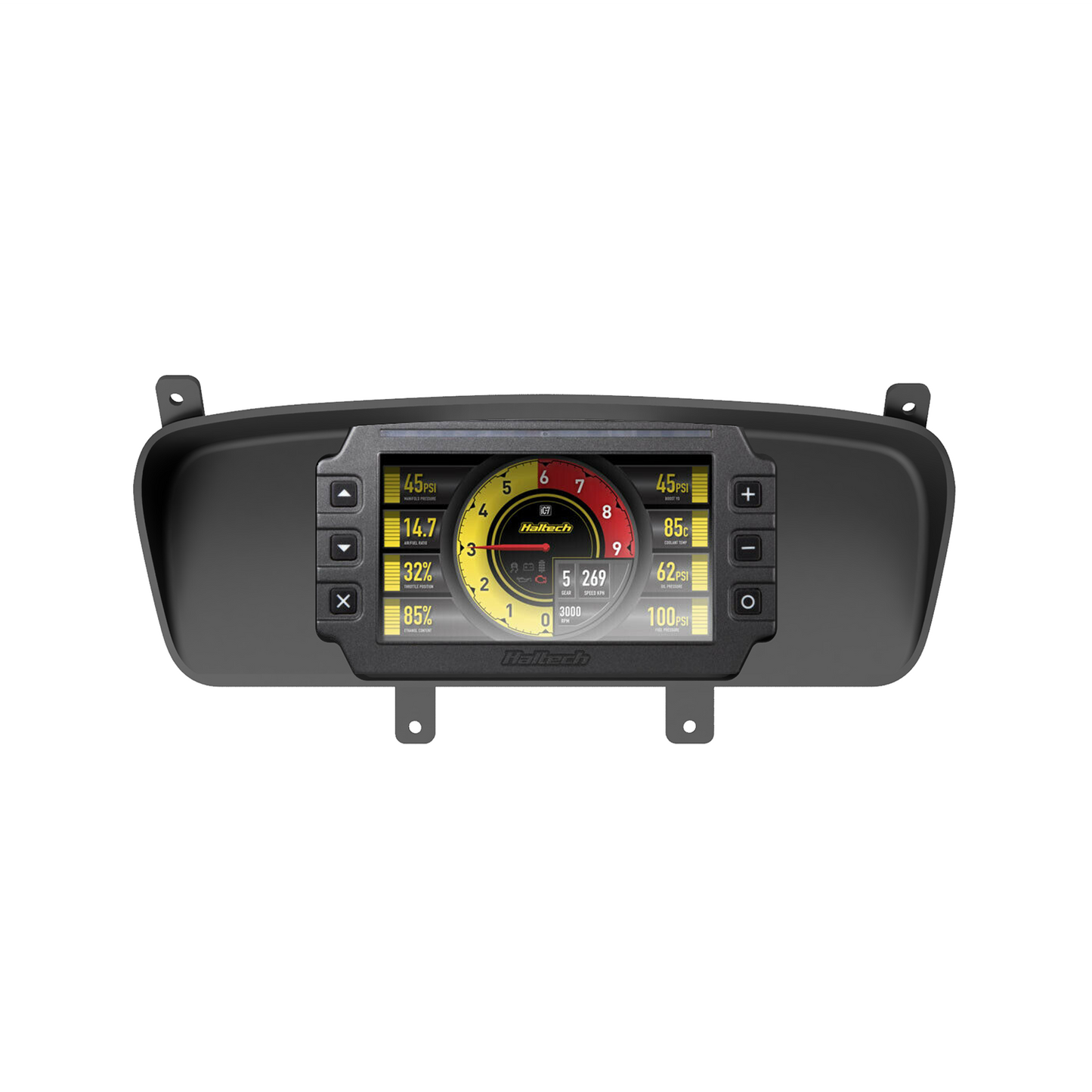

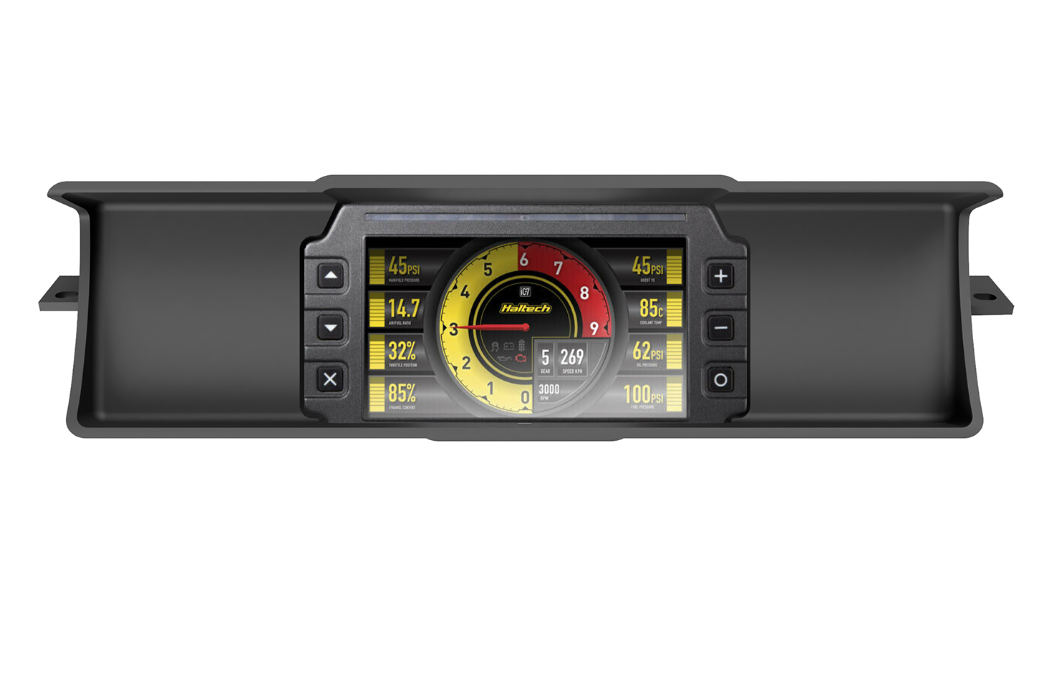

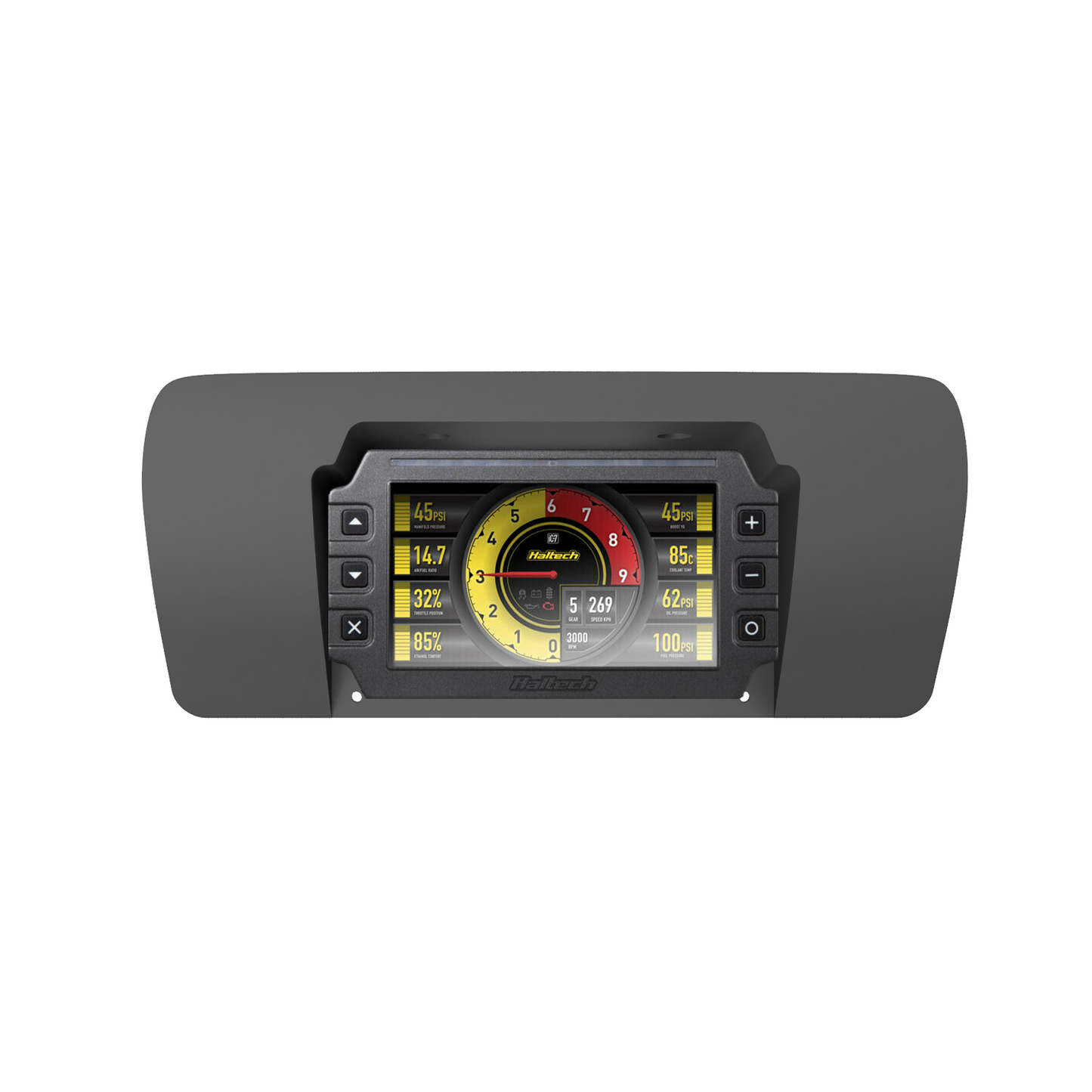

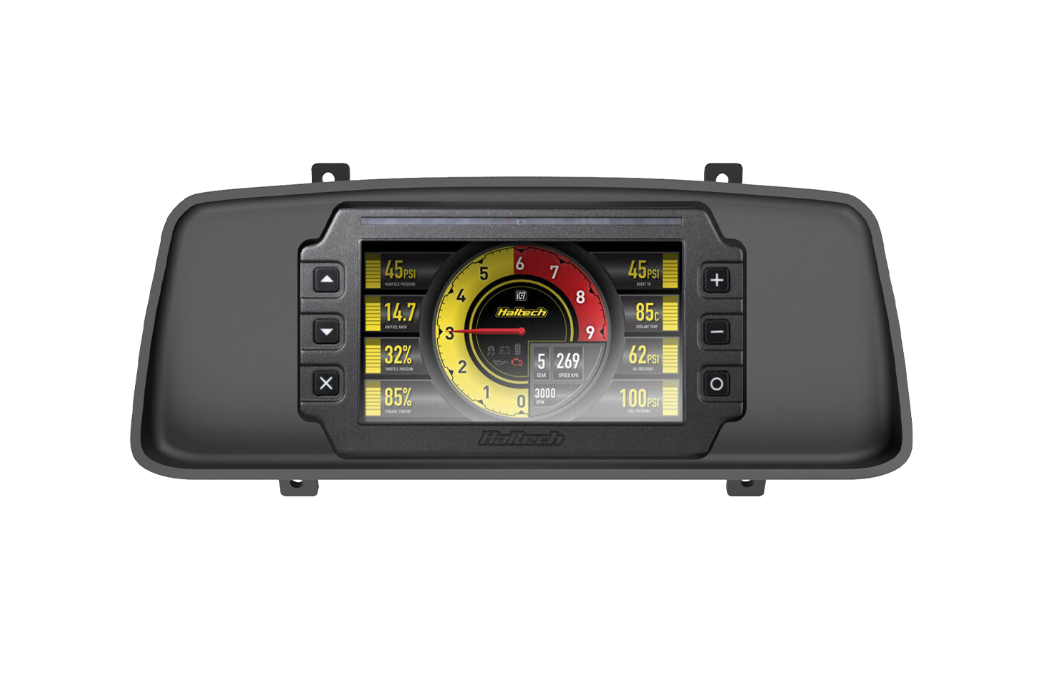

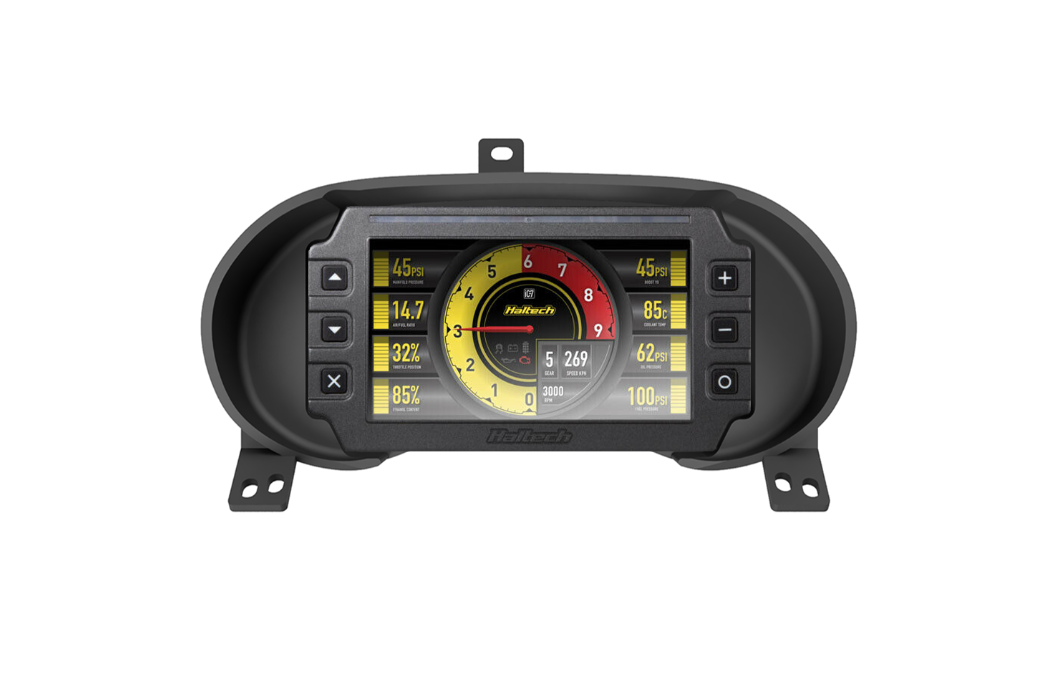

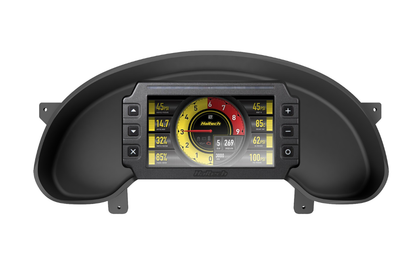

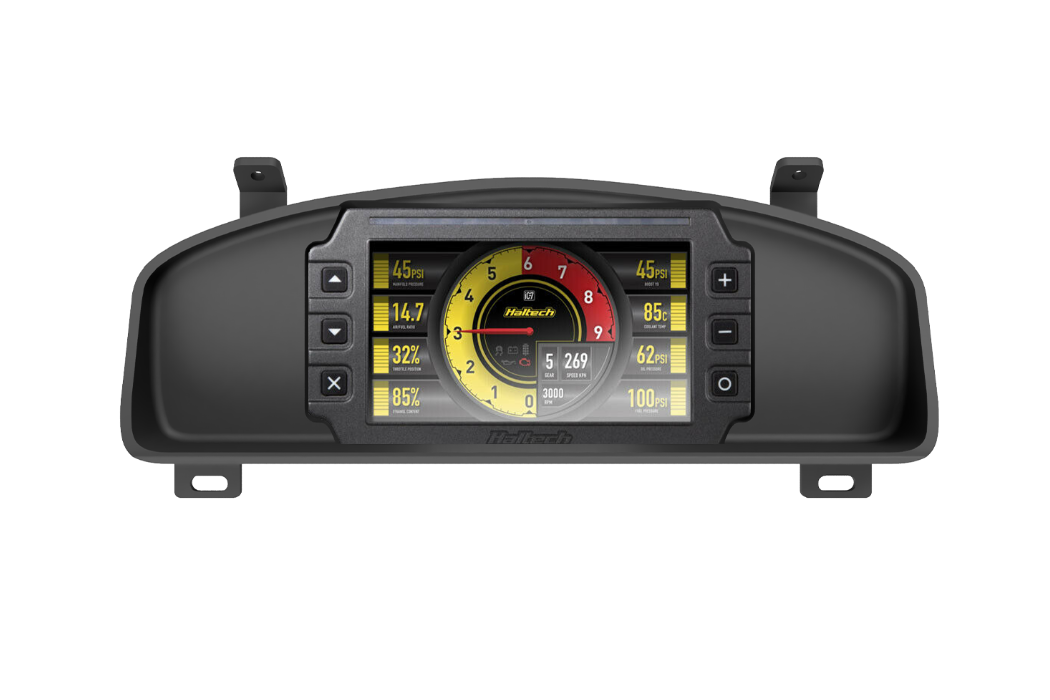

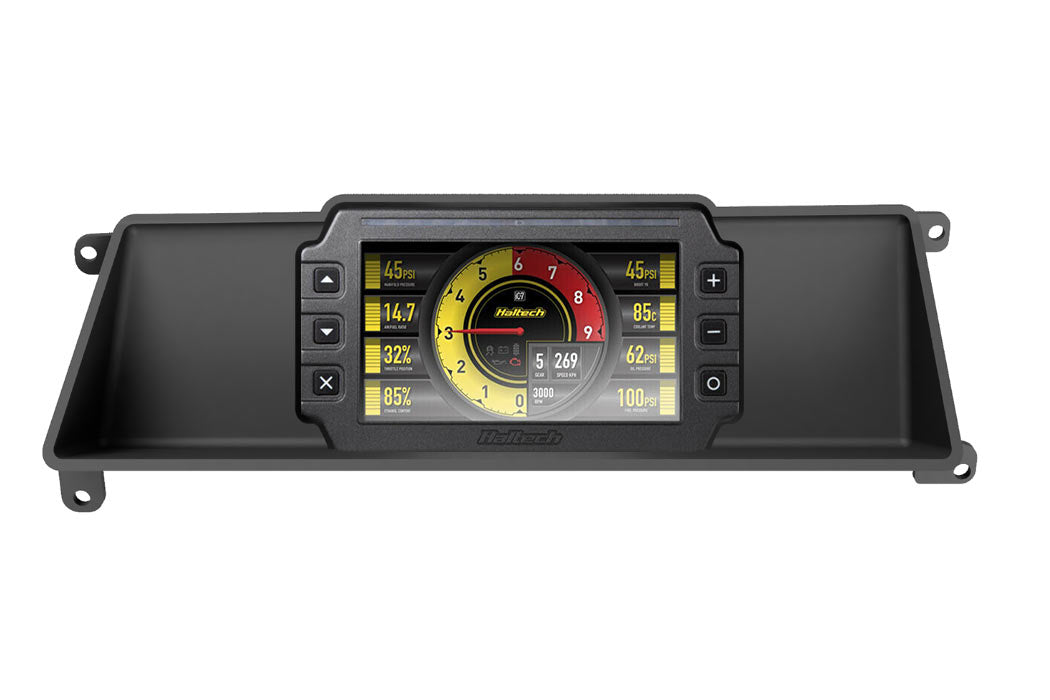

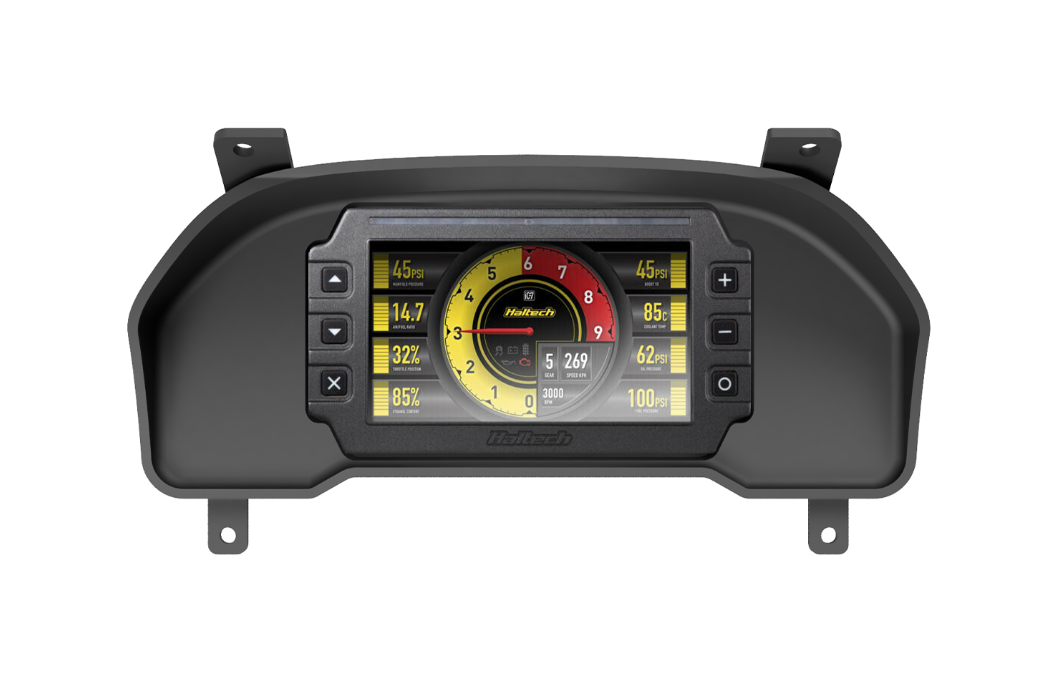

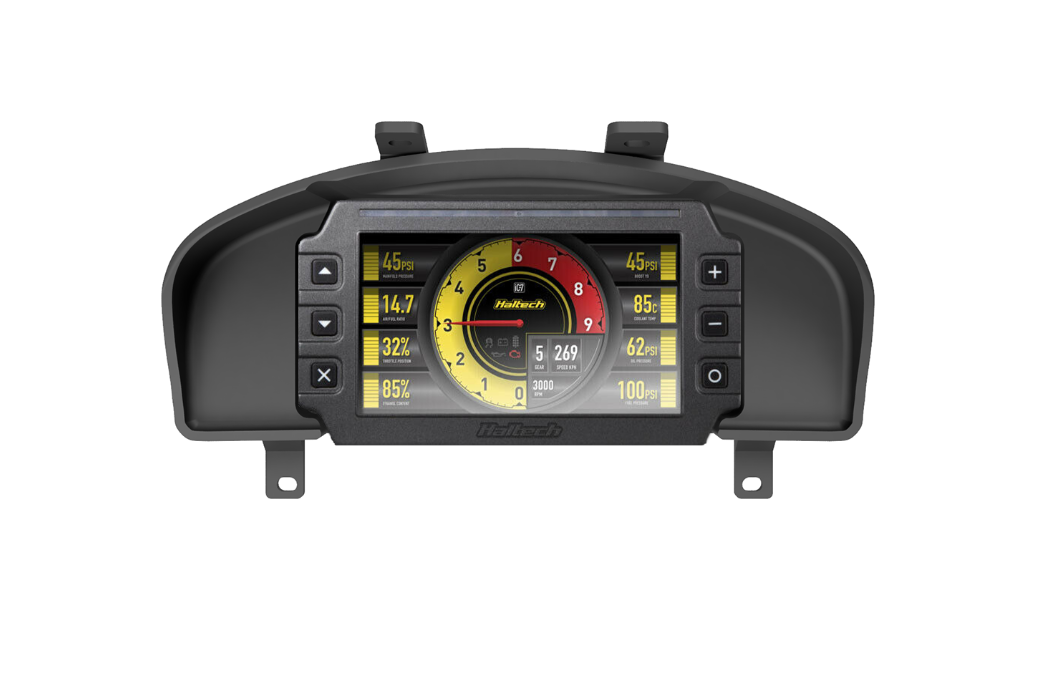

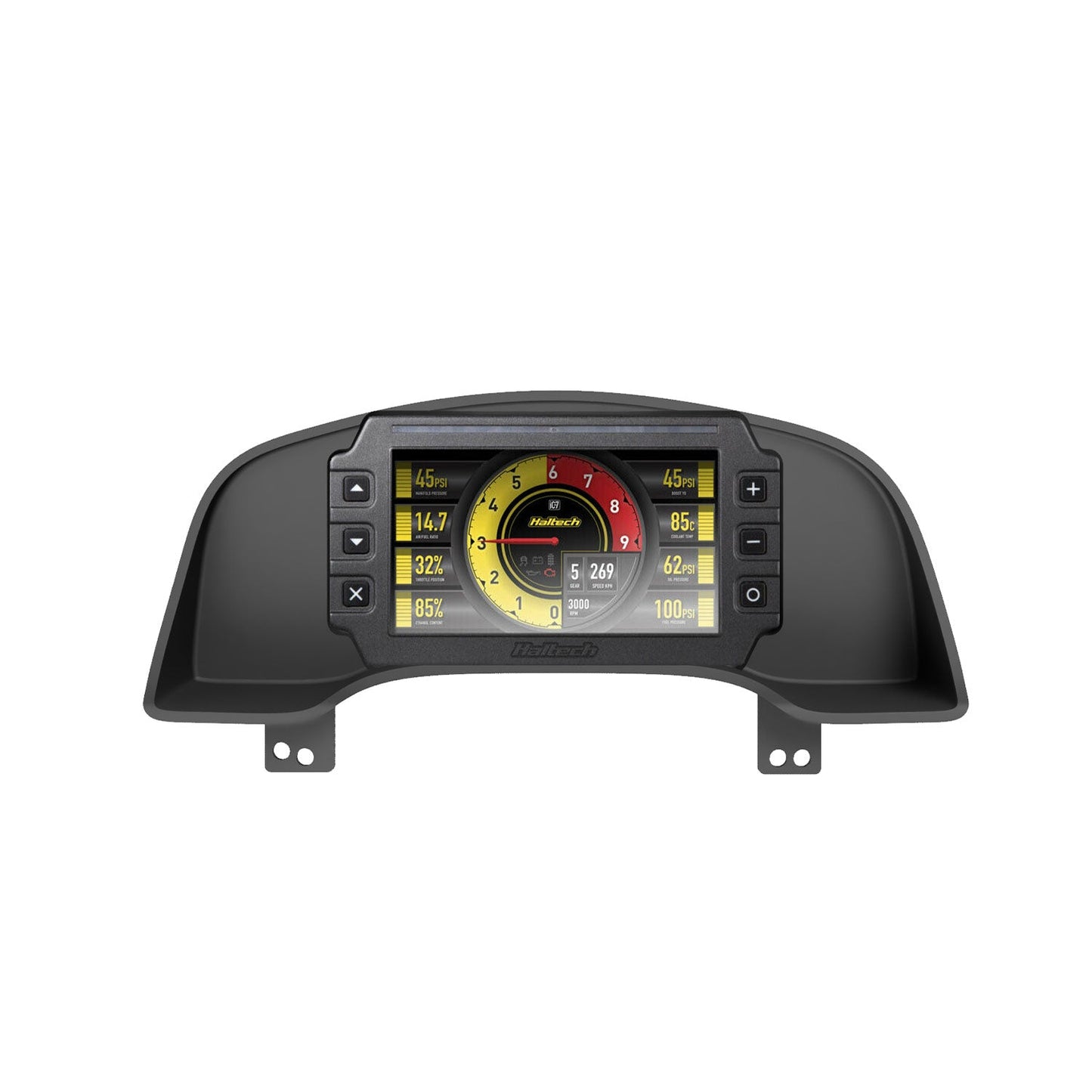

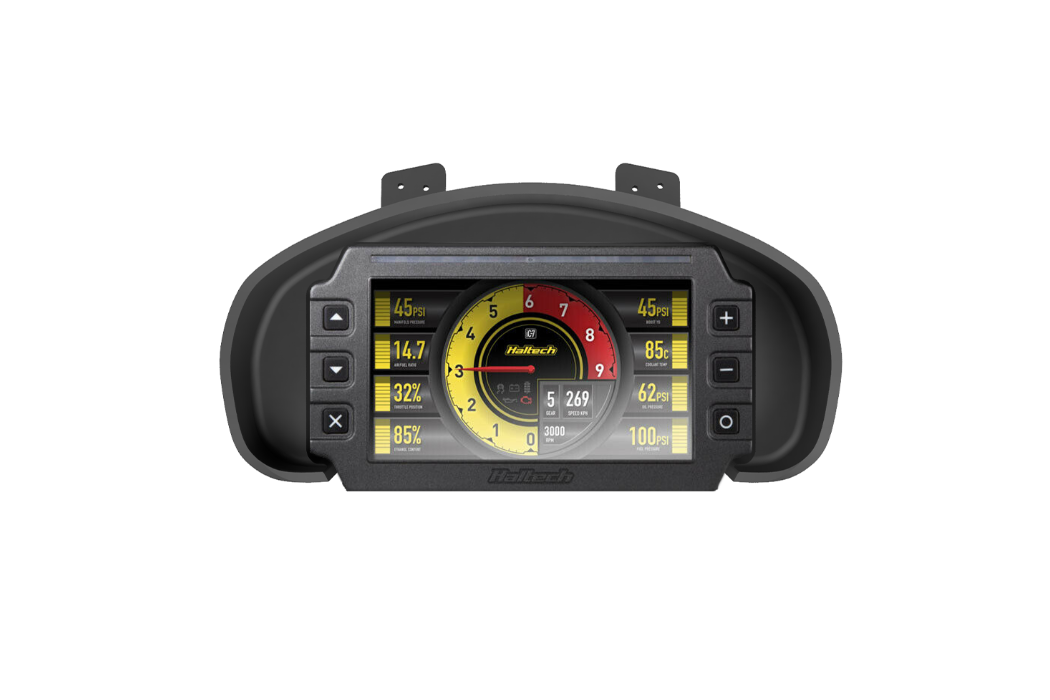

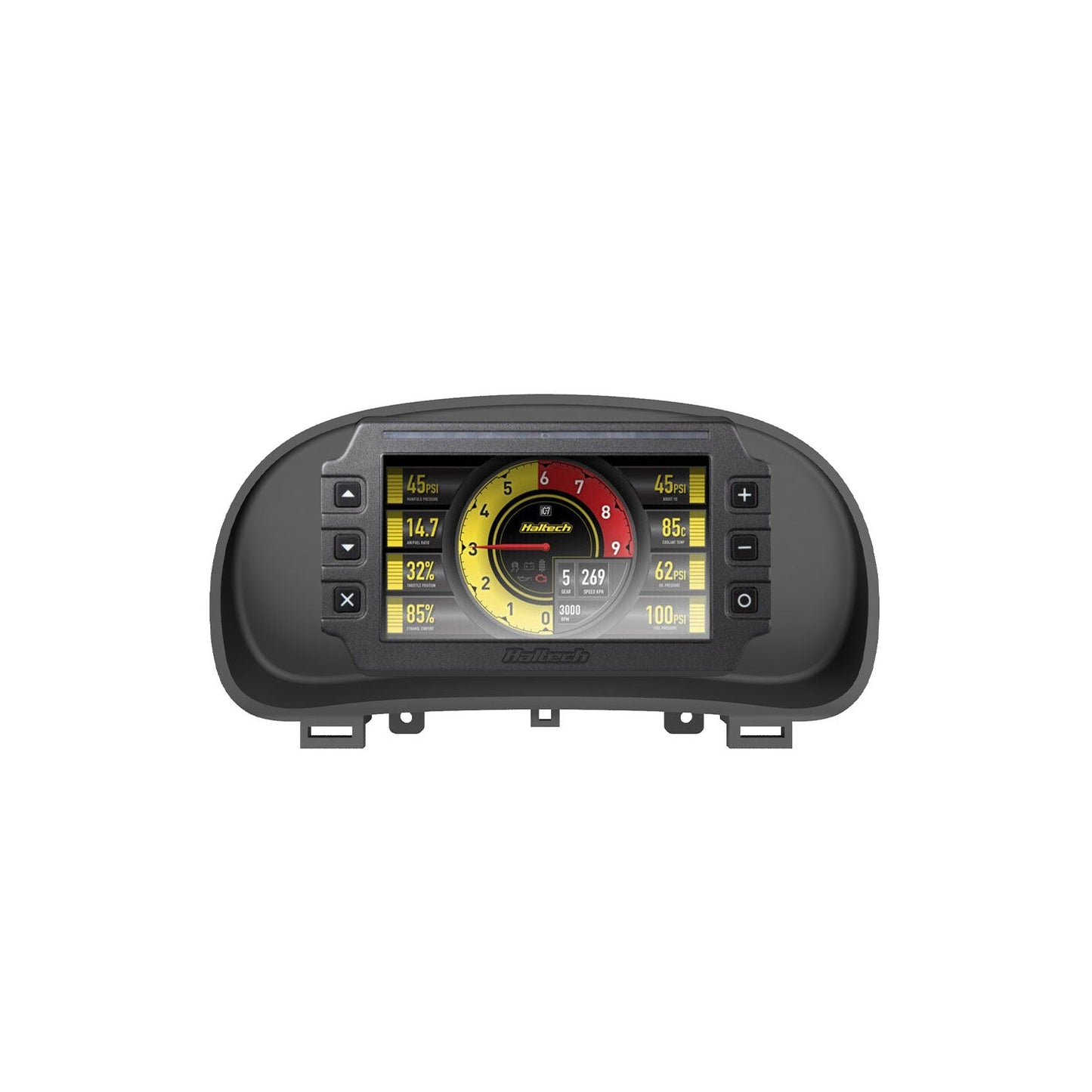

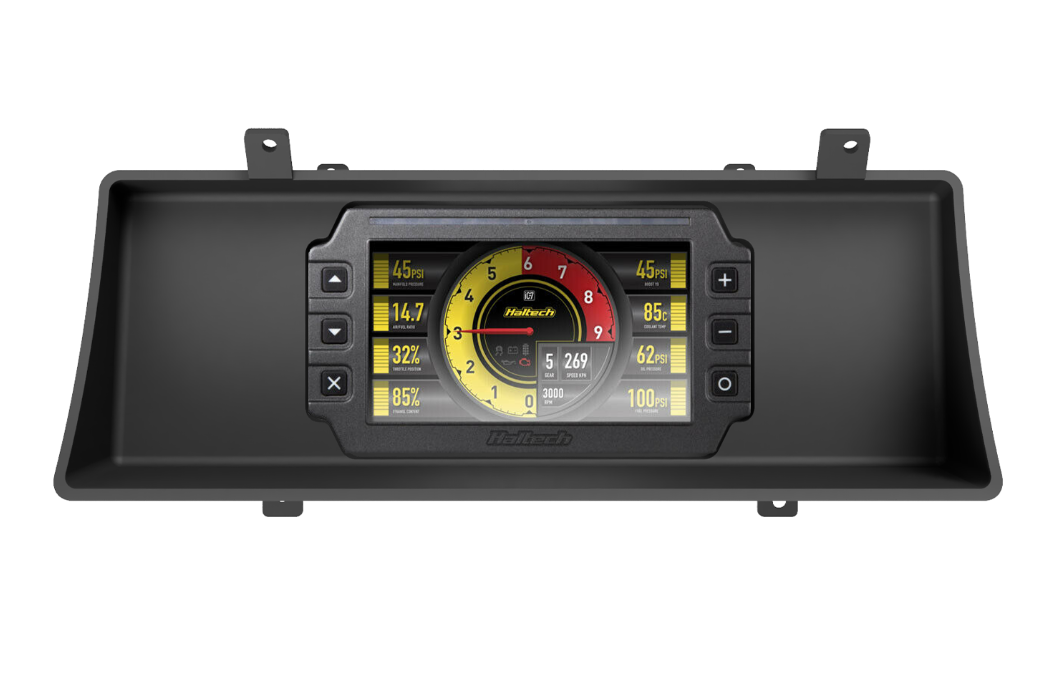

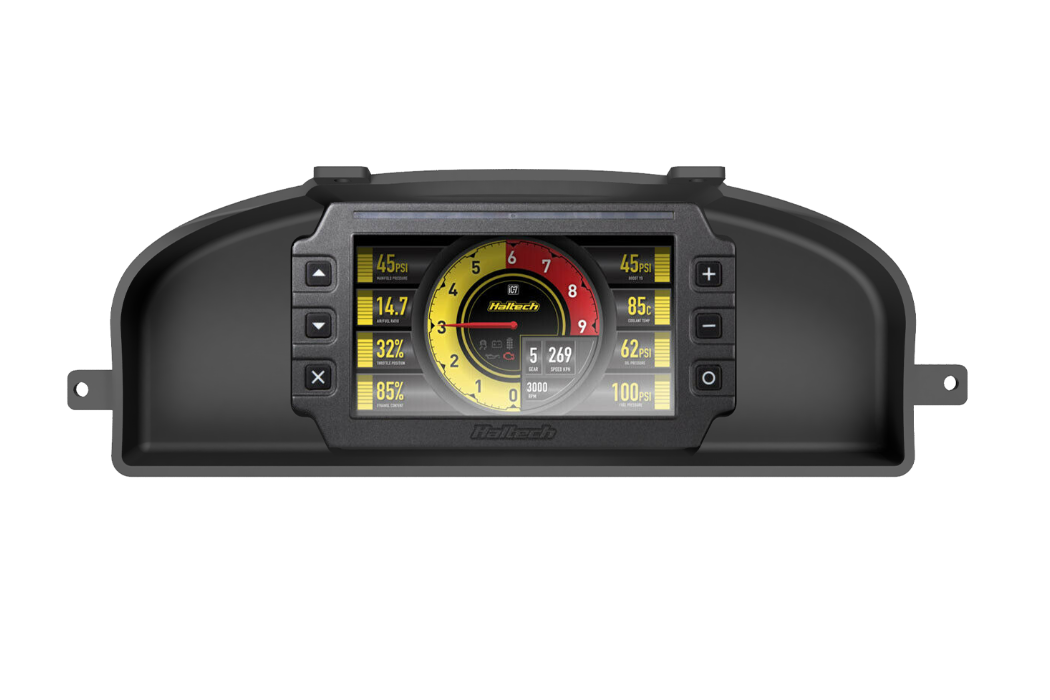

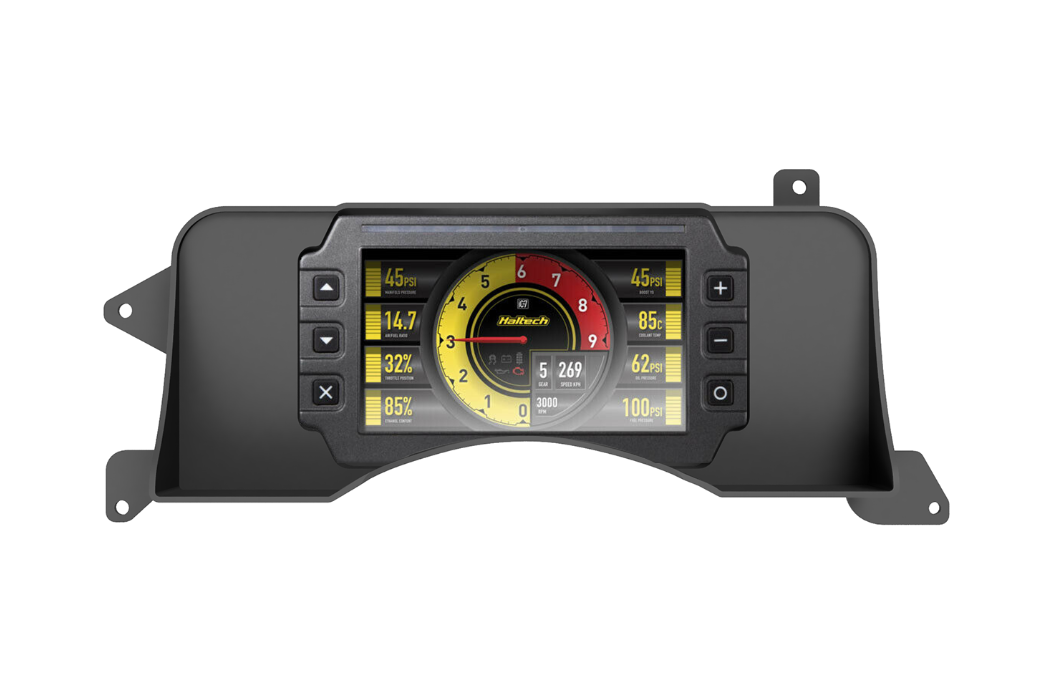

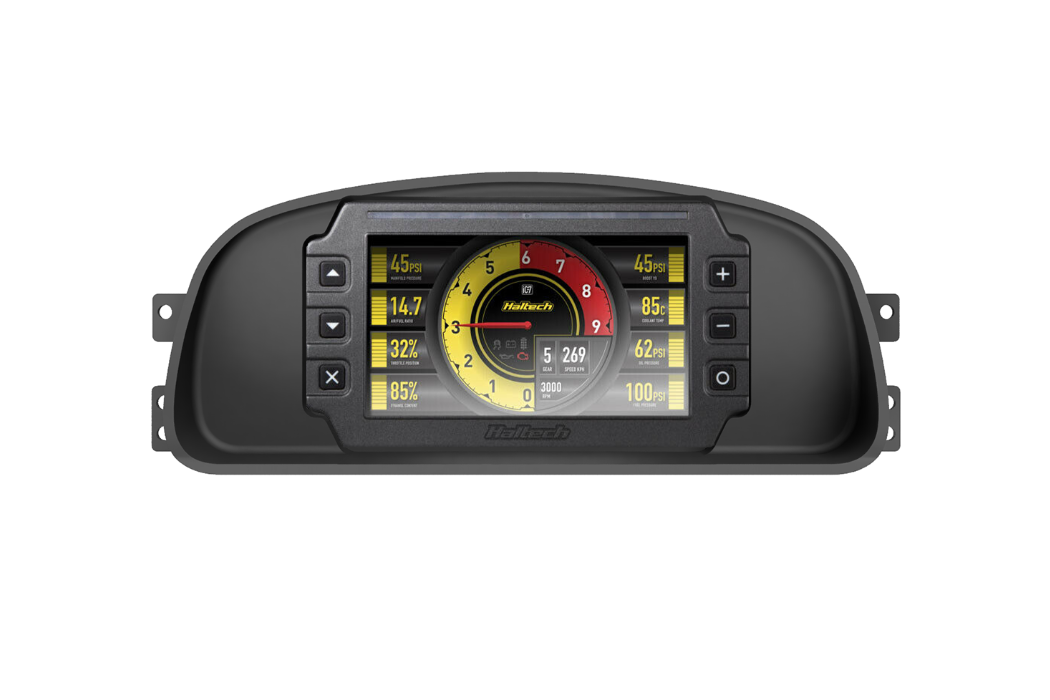

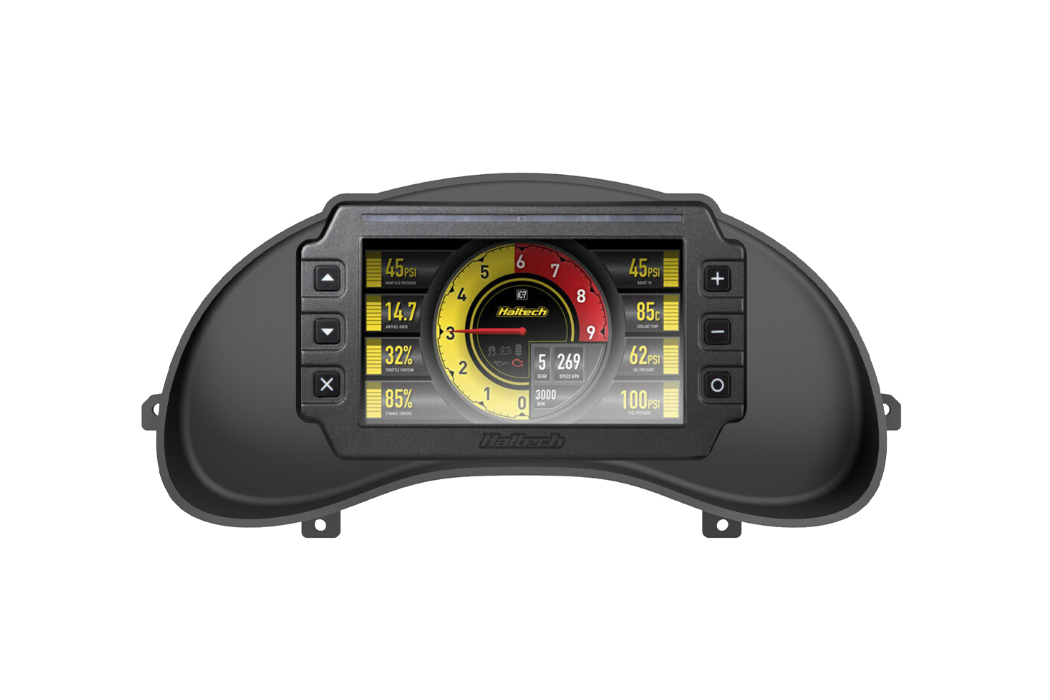

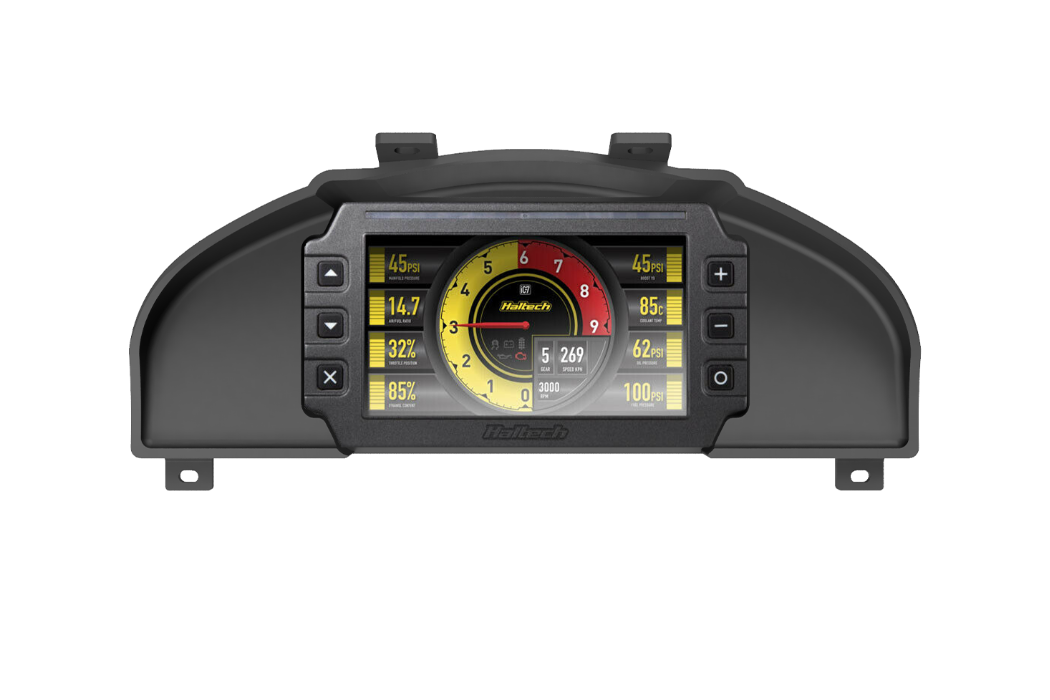

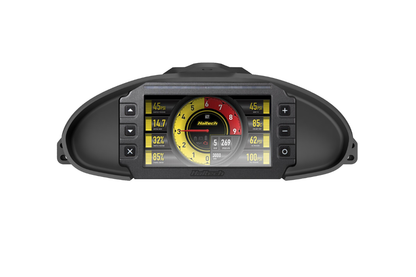

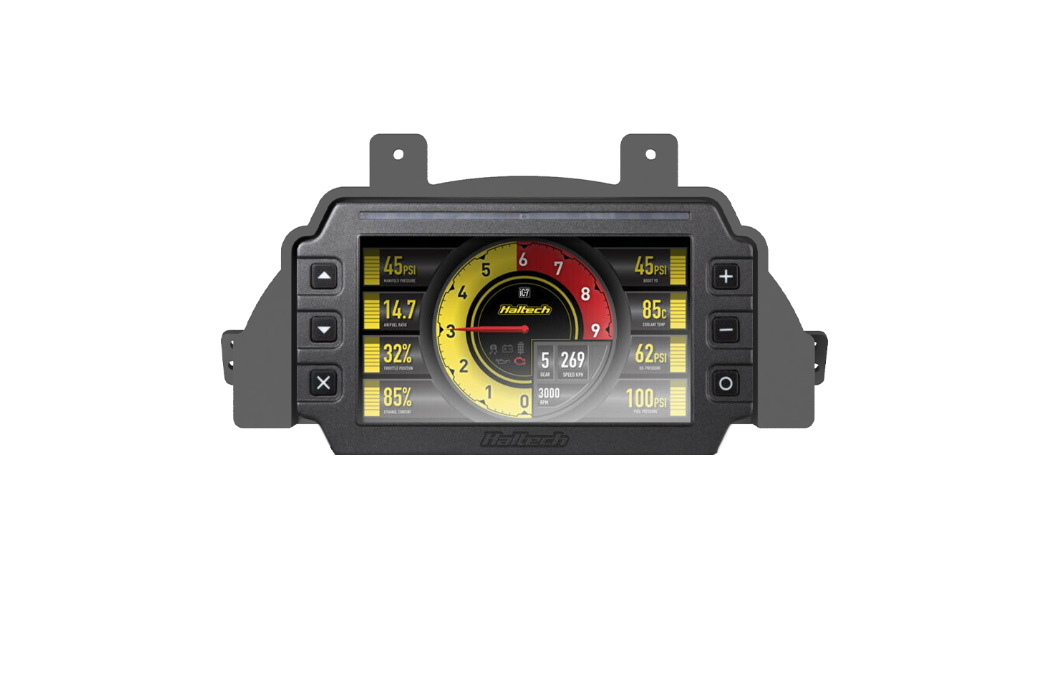

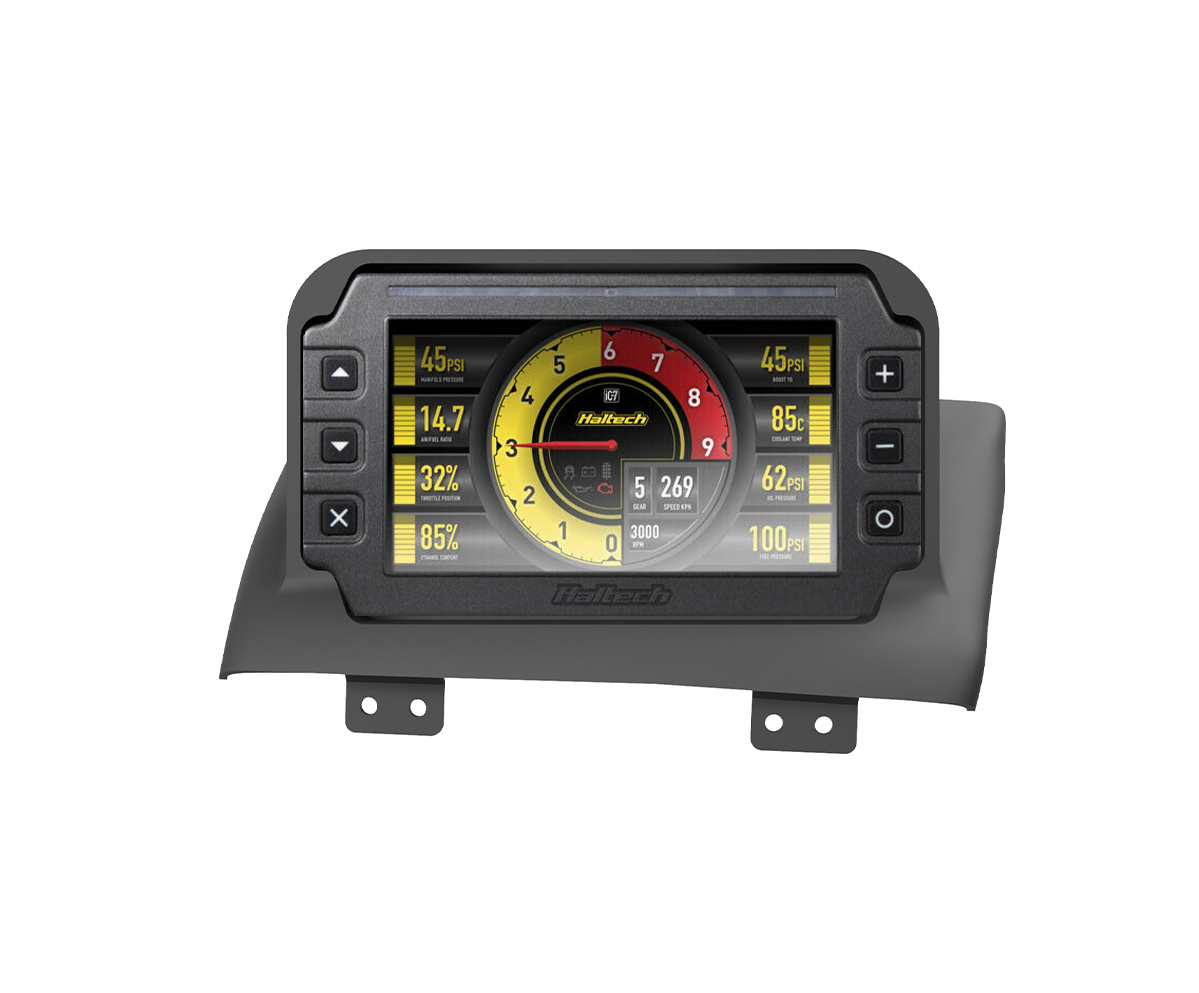

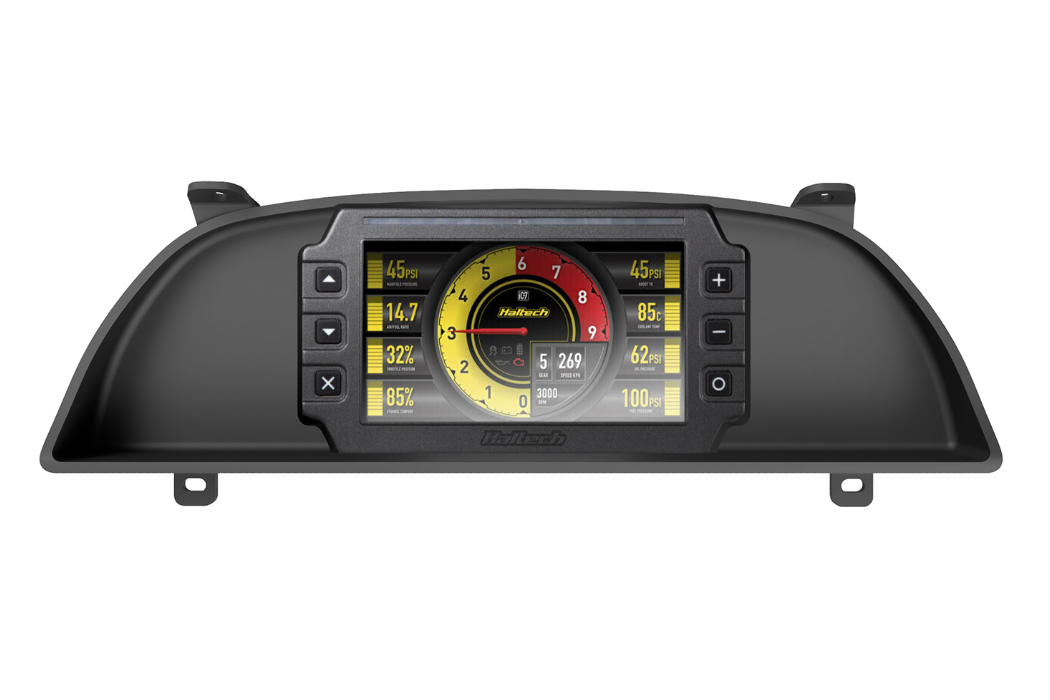

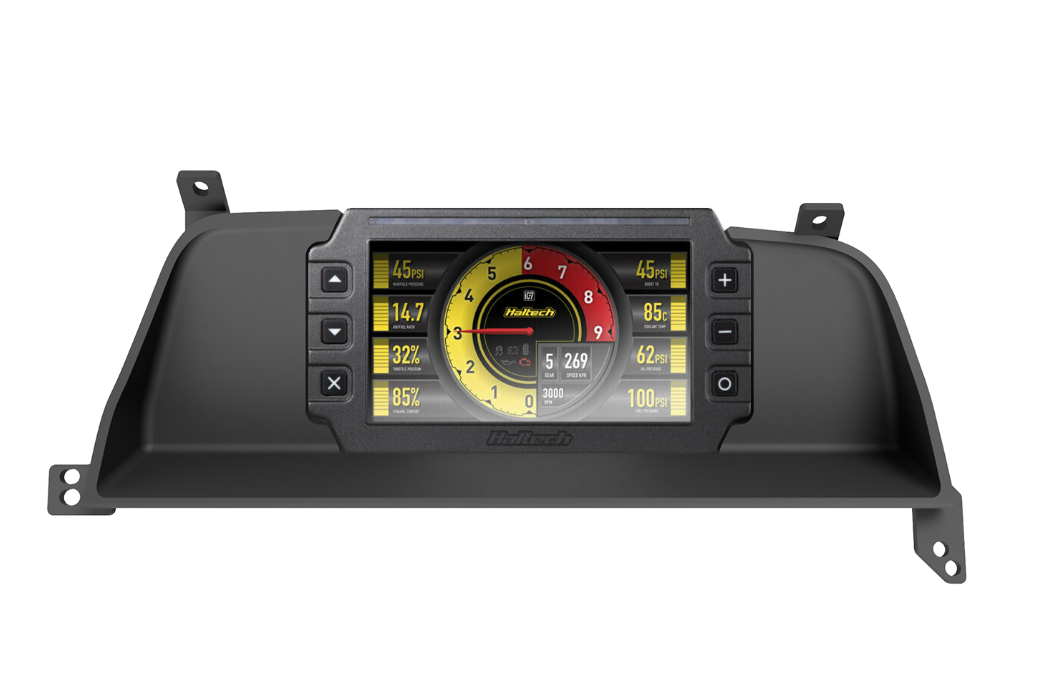

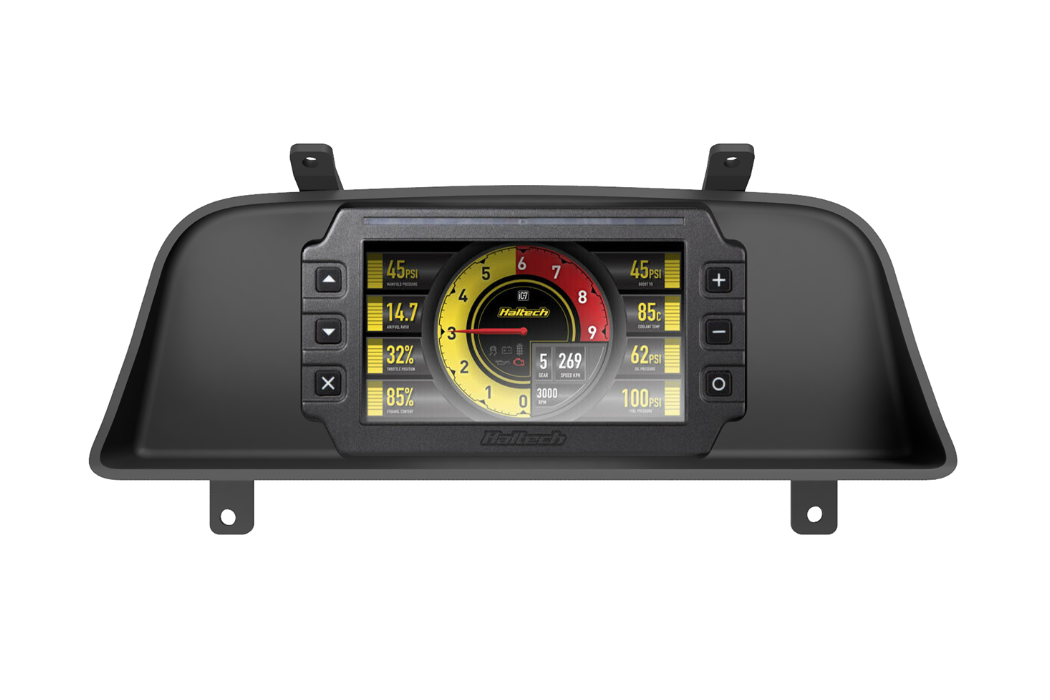

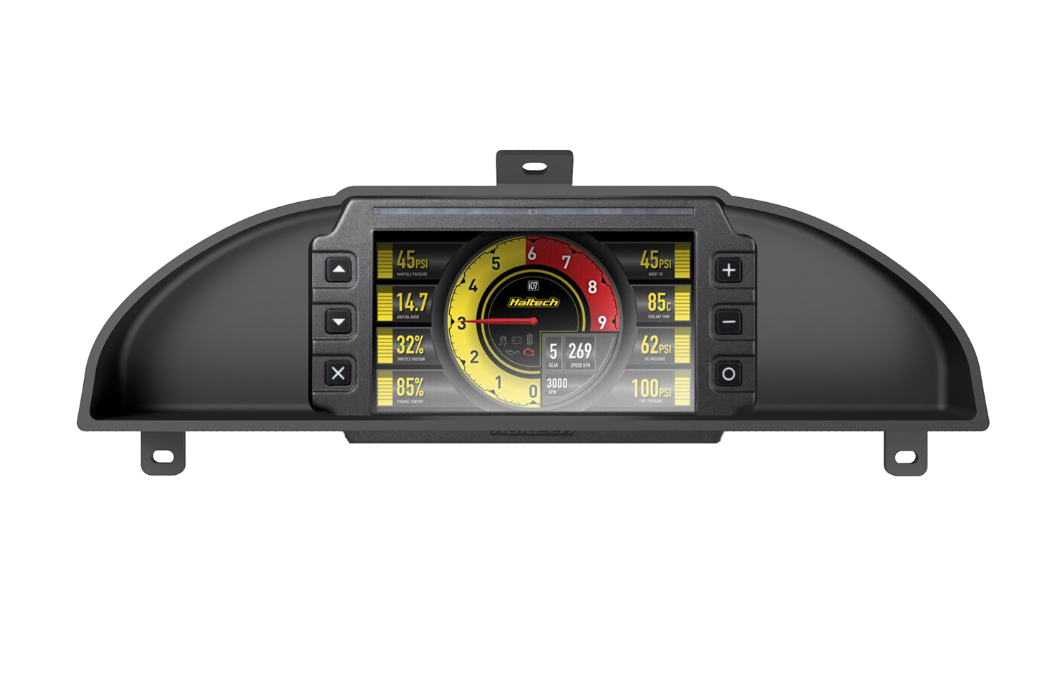

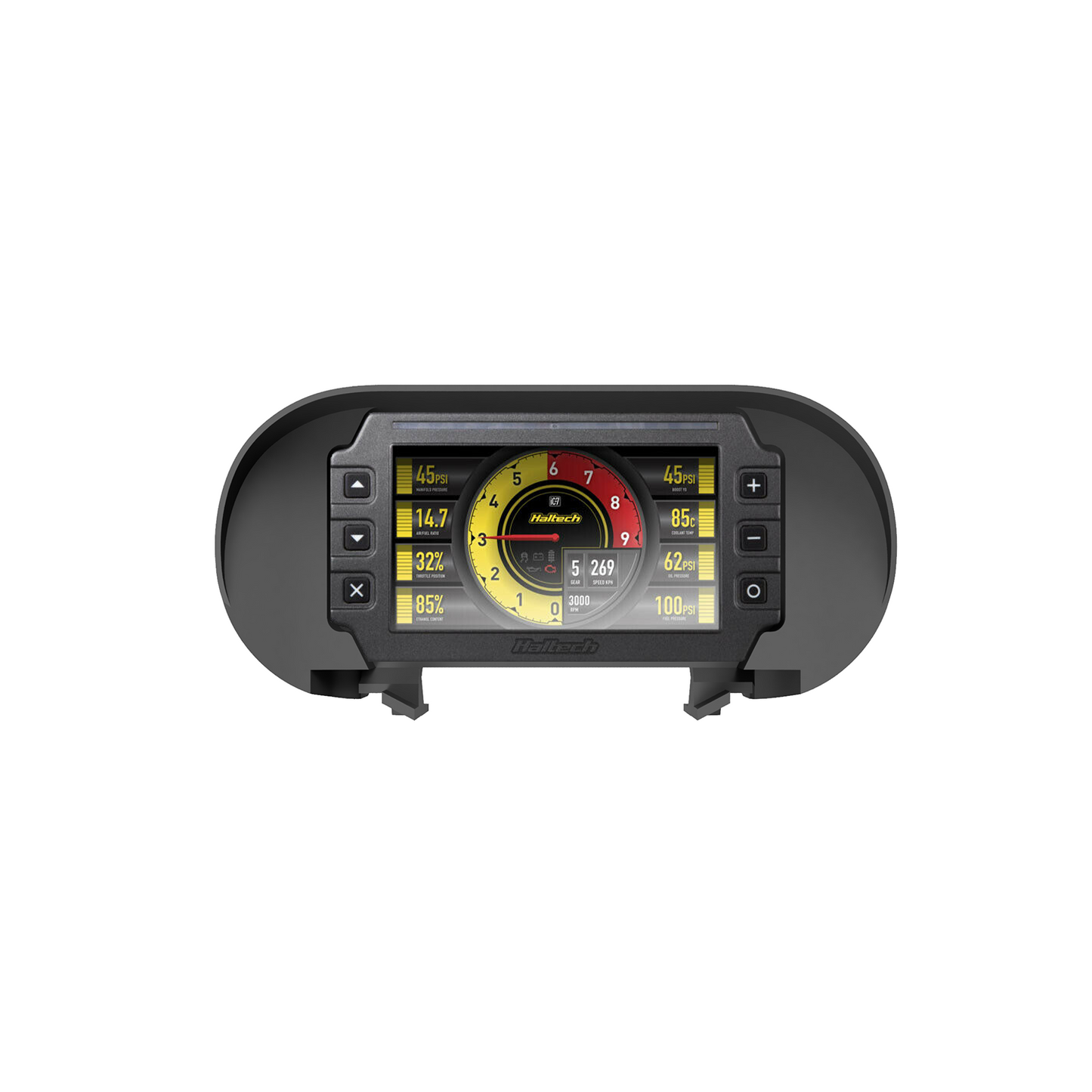

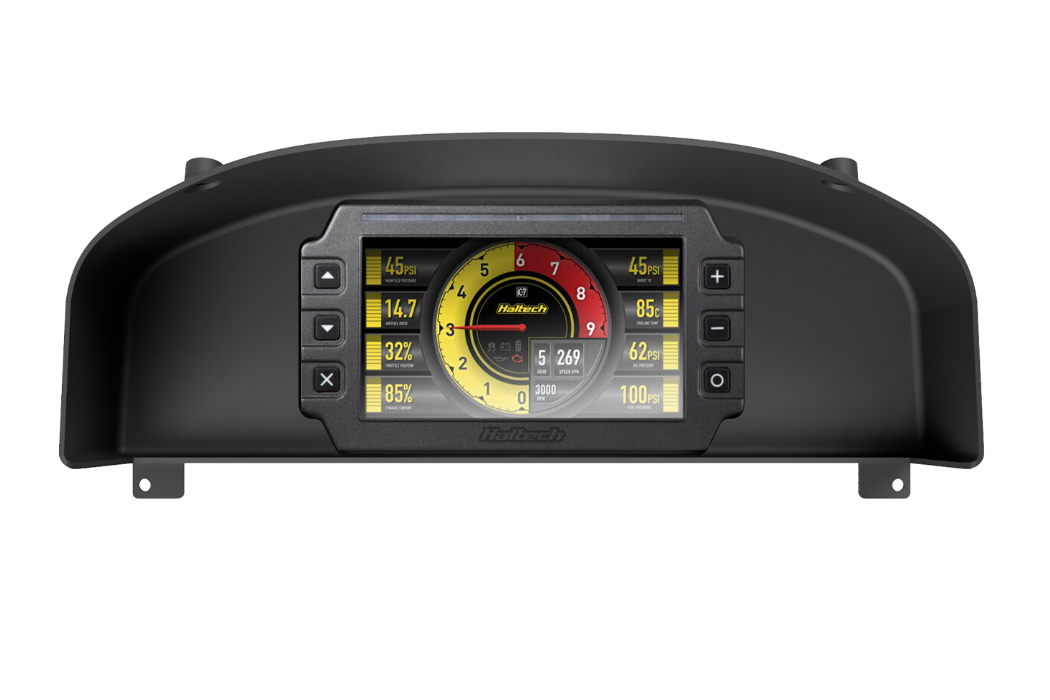

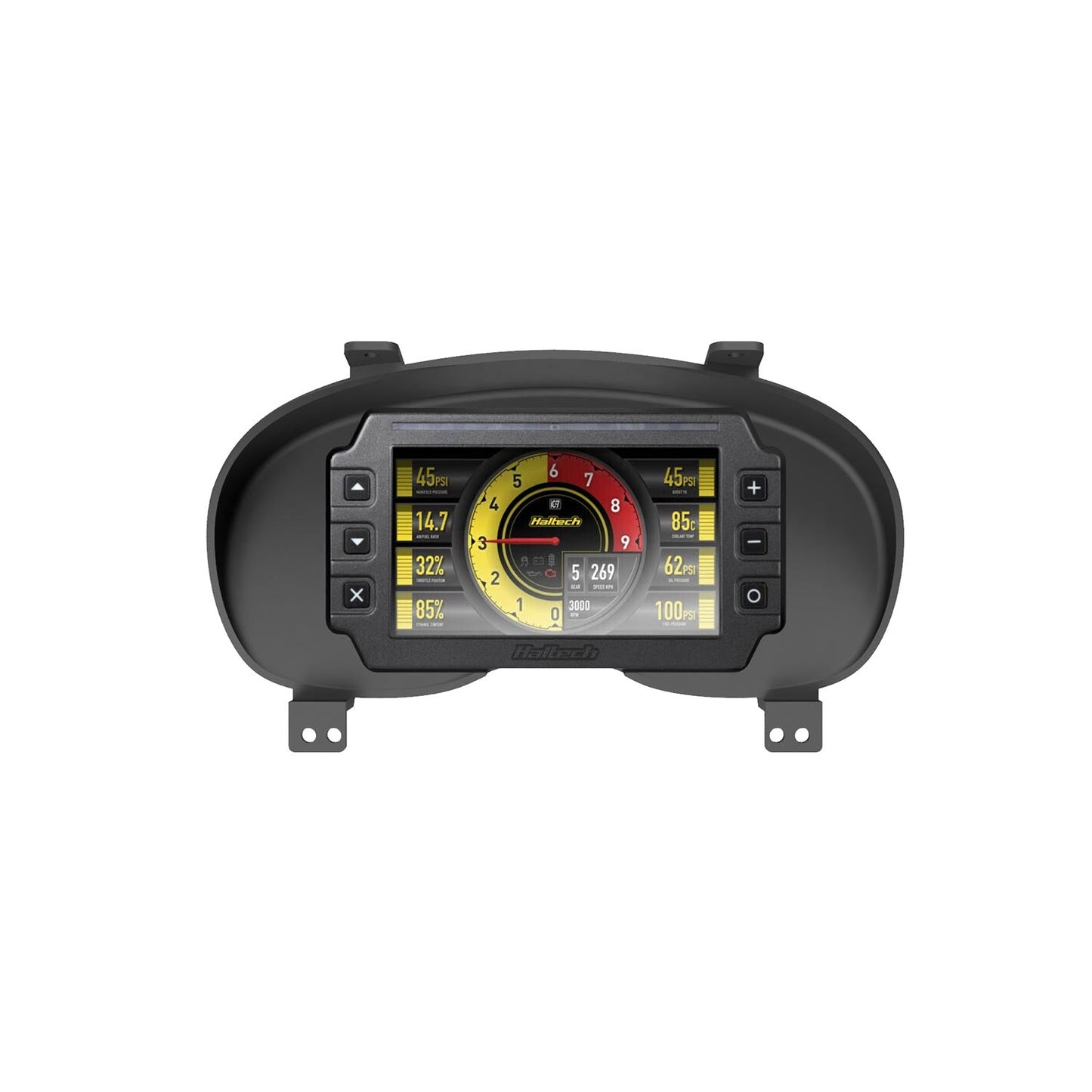

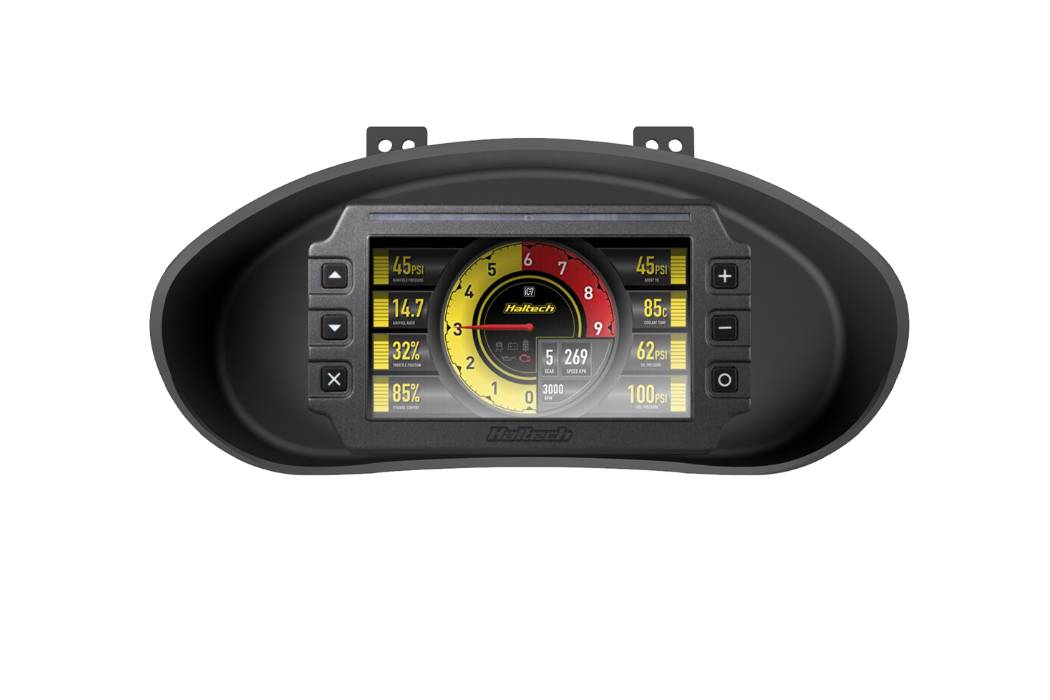

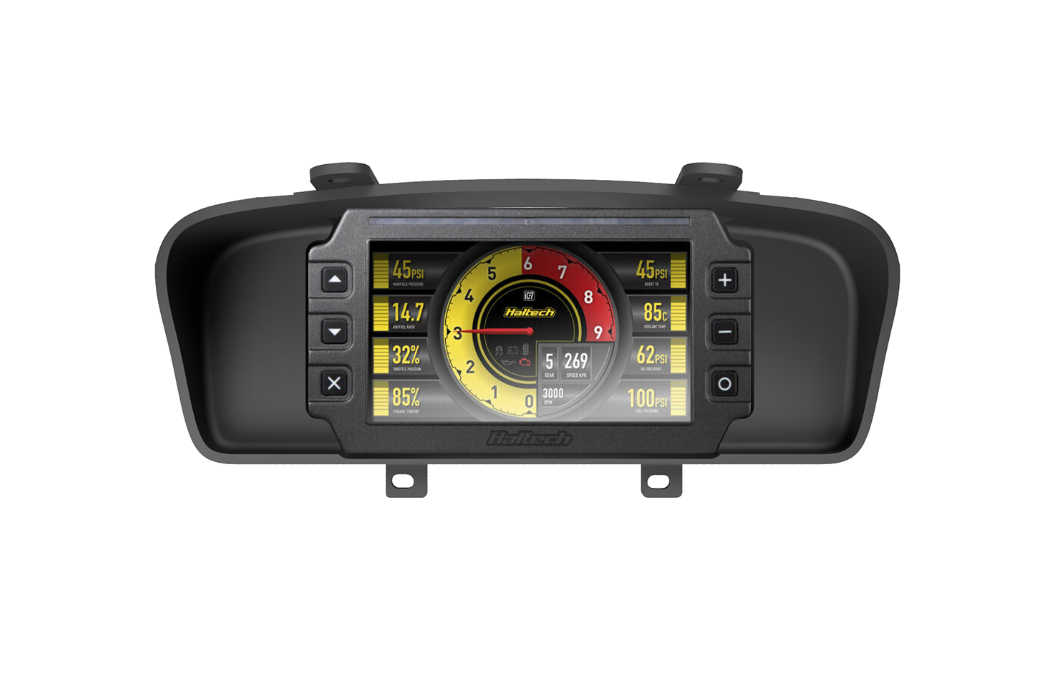

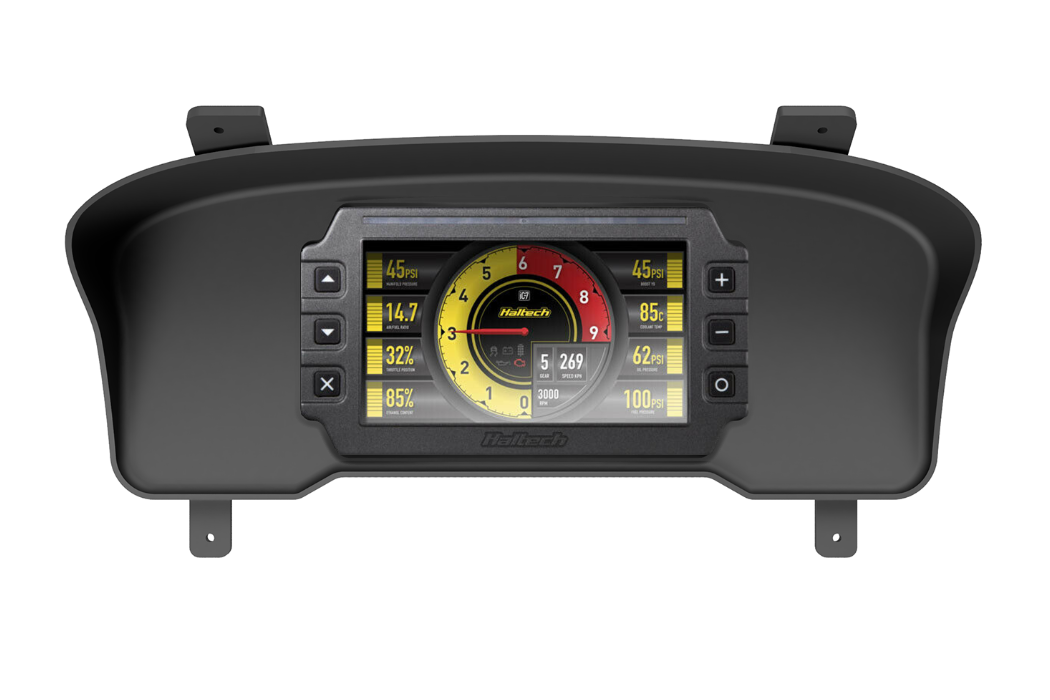

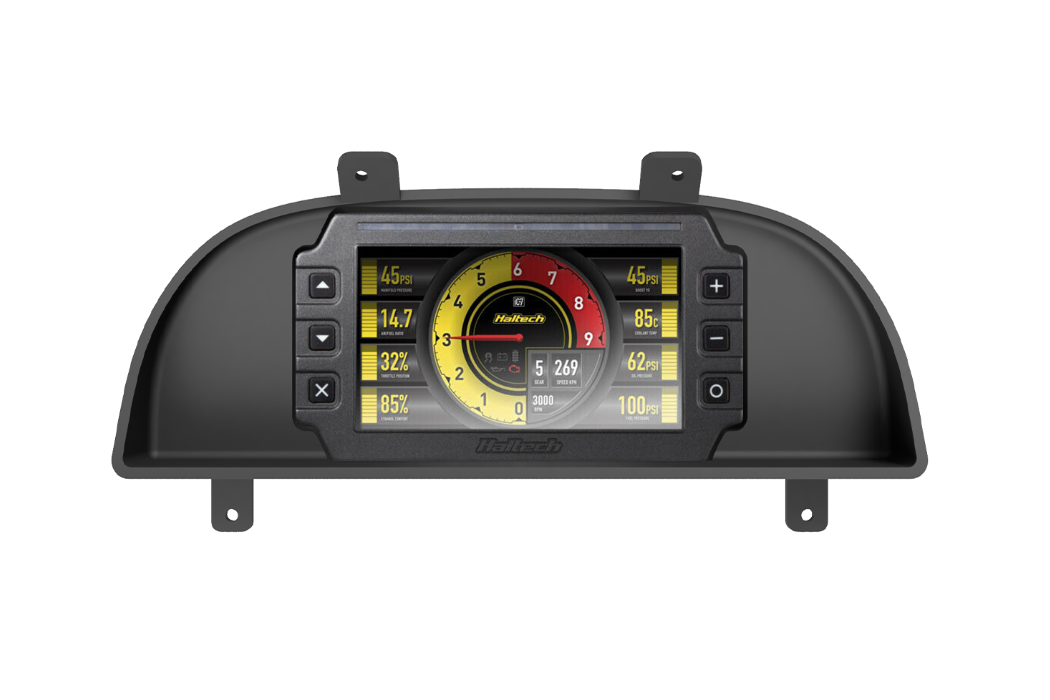

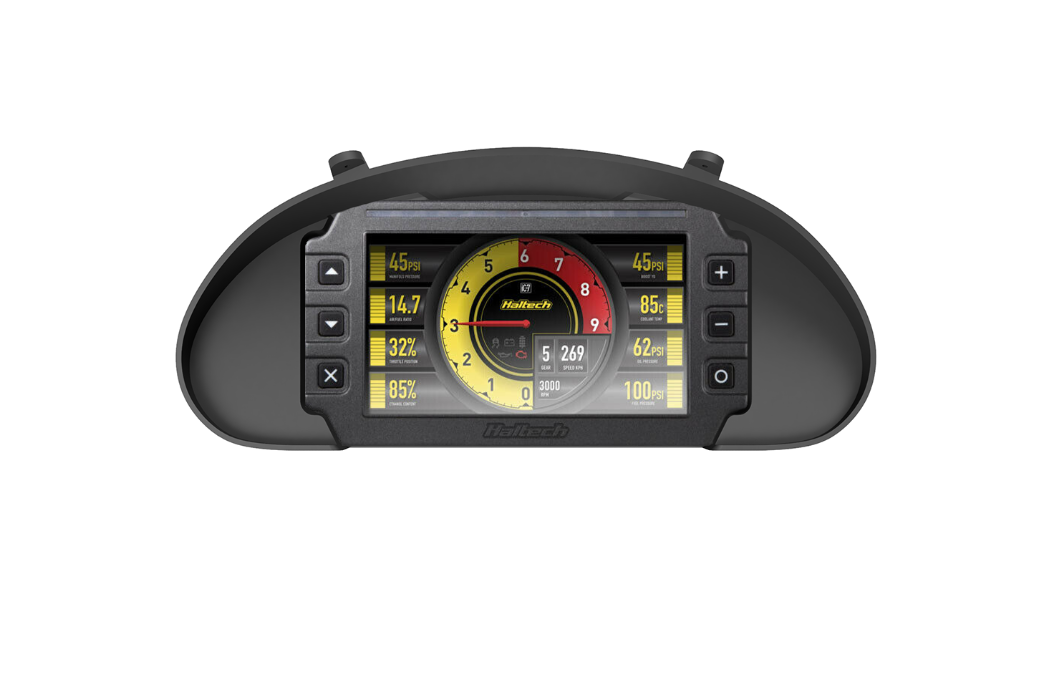

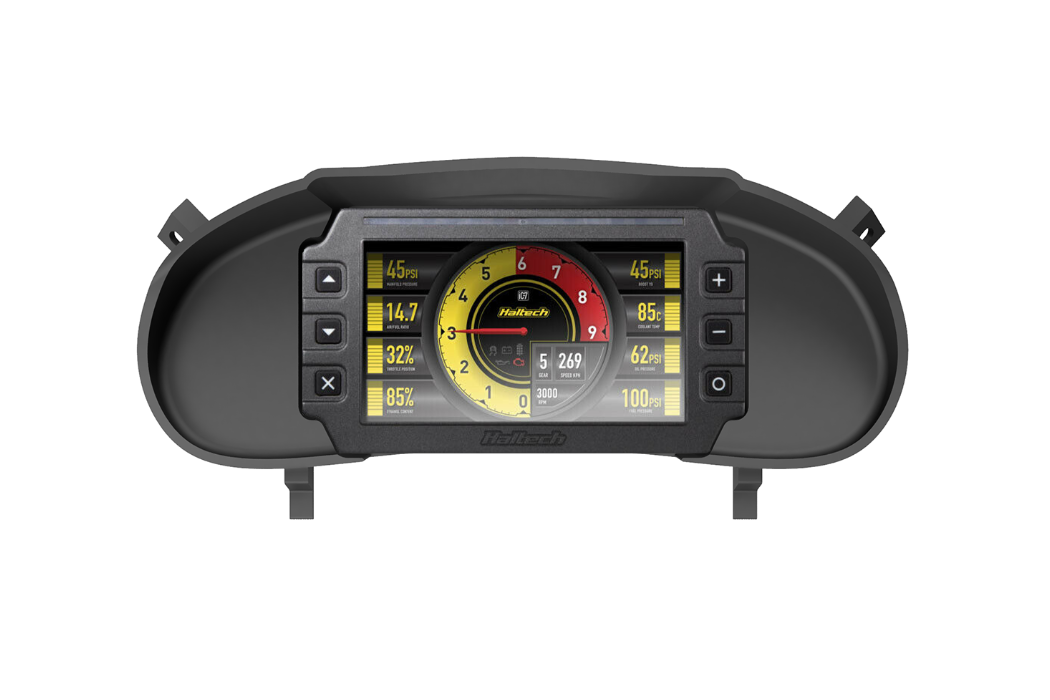

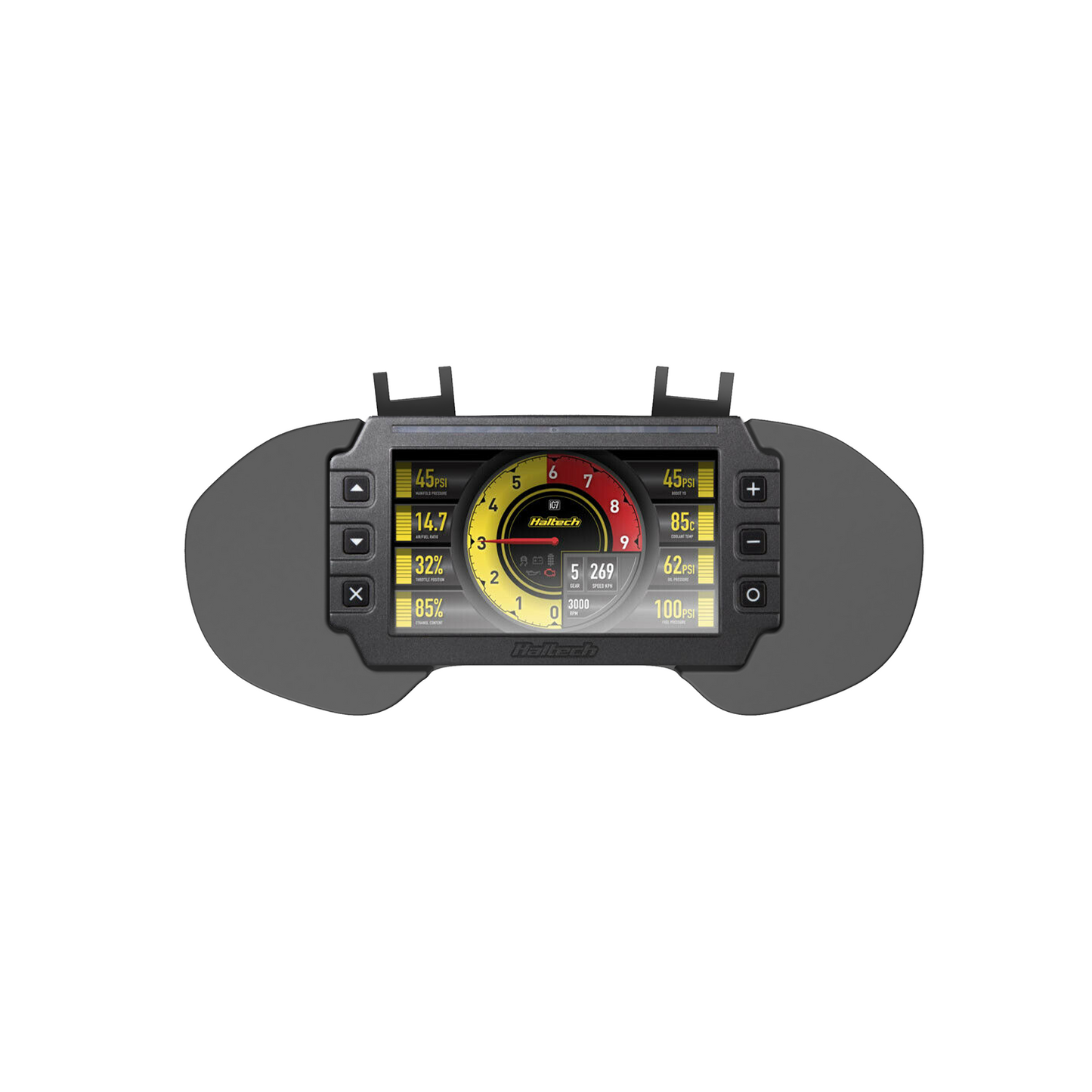

Mako Motorsport Recessed Dash Mount

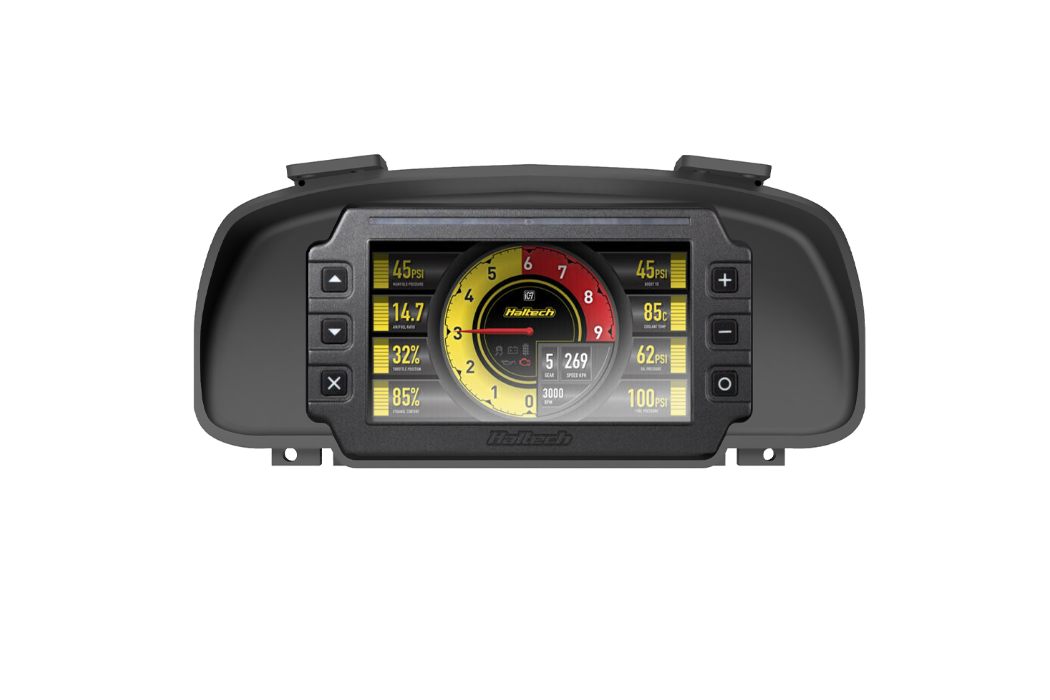

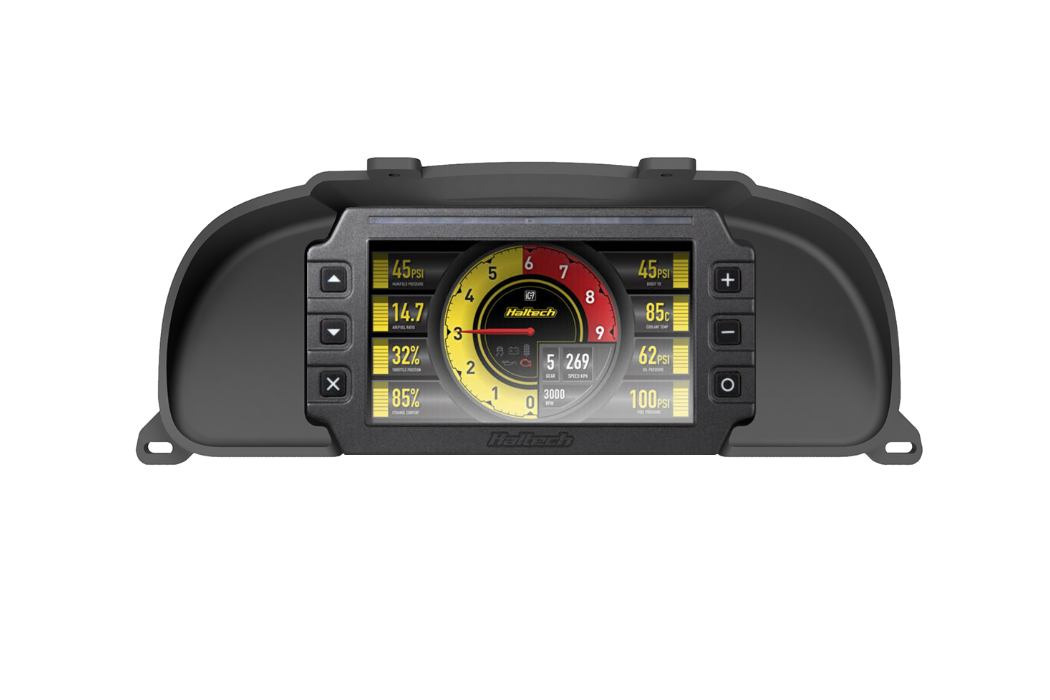

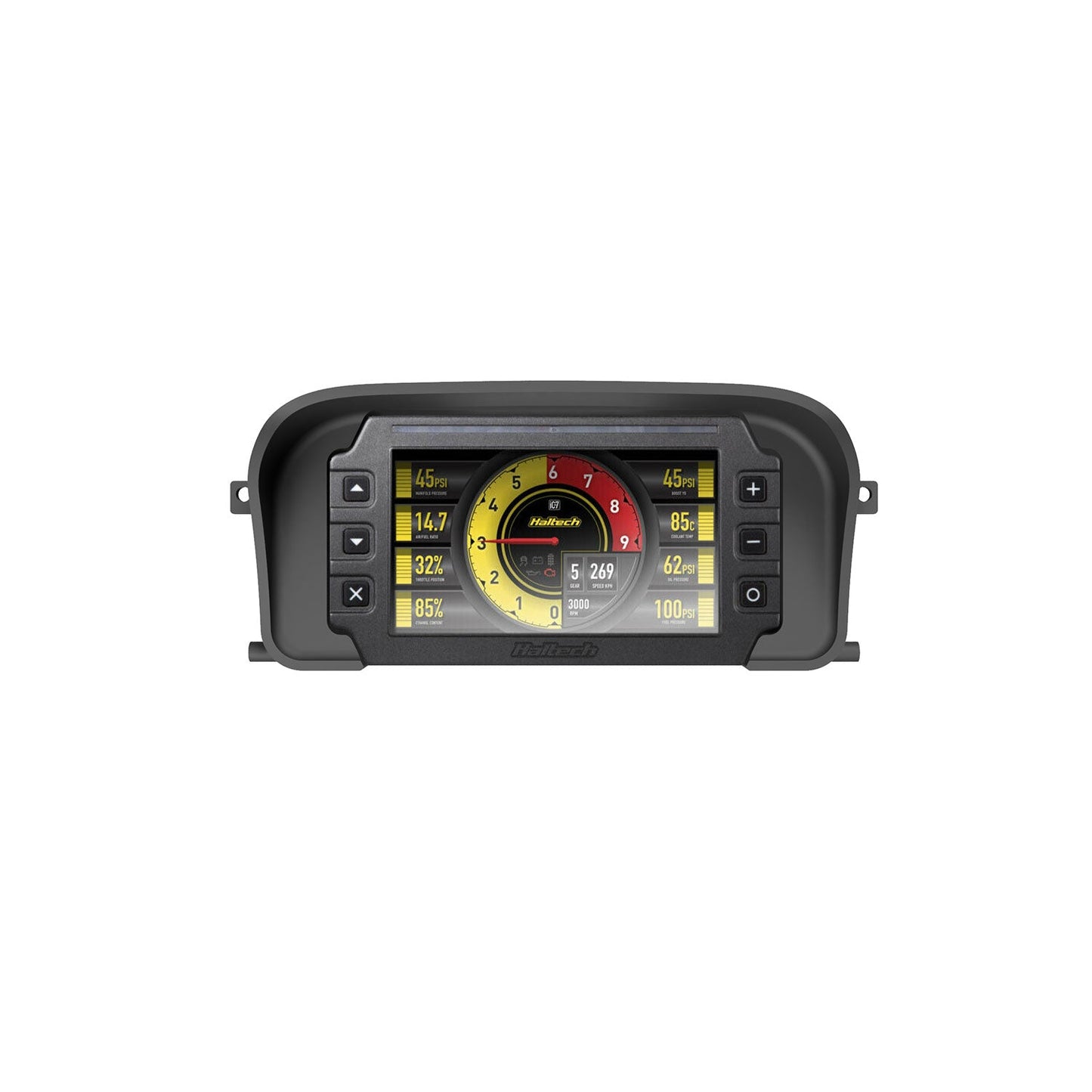

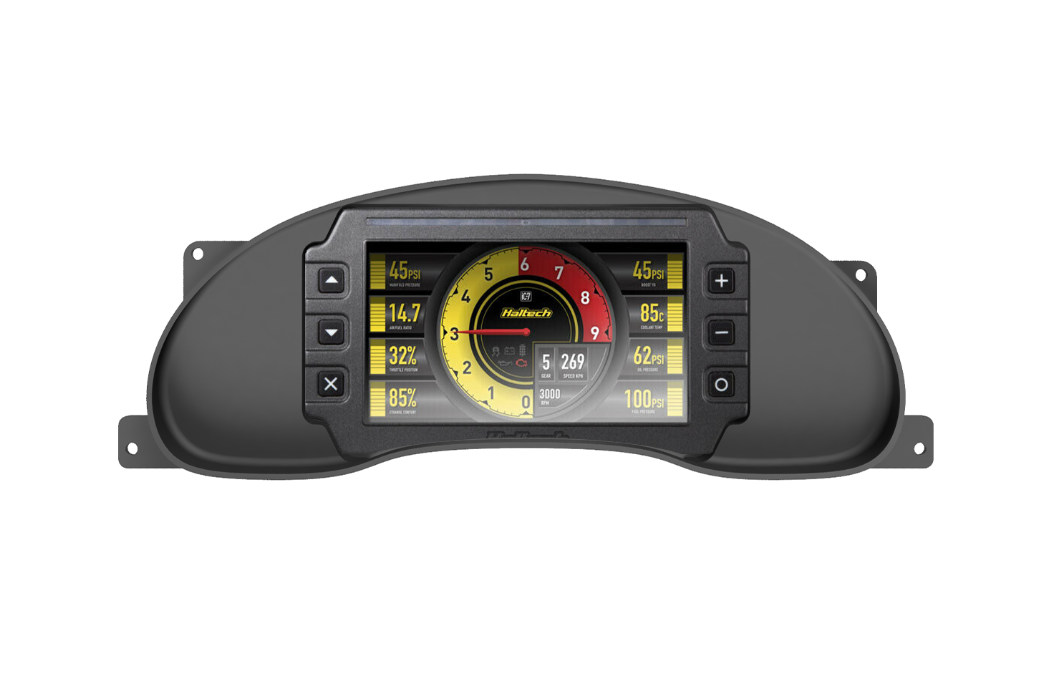

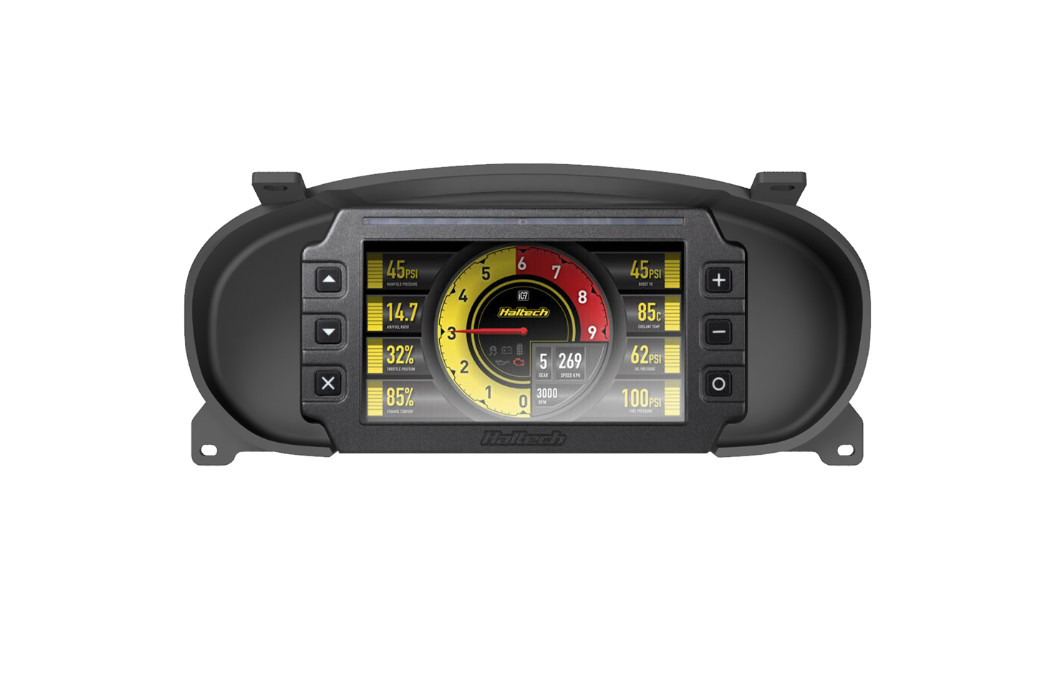

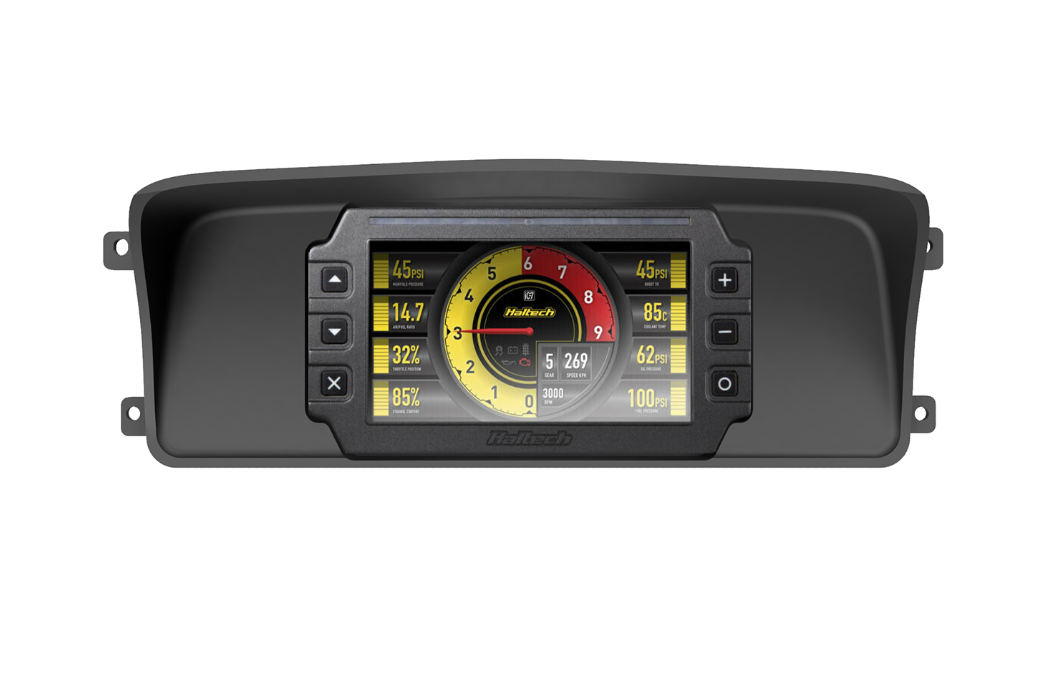

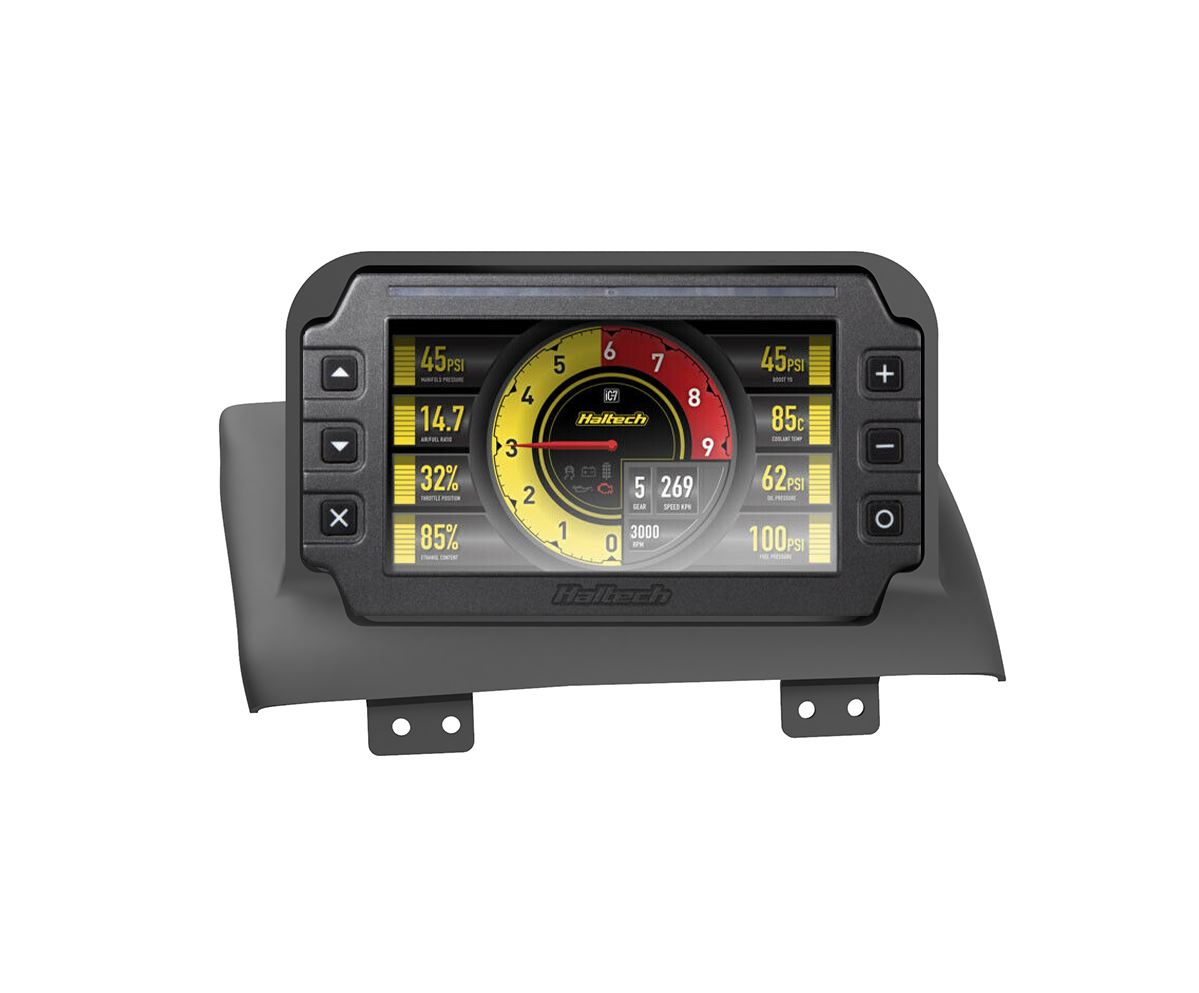

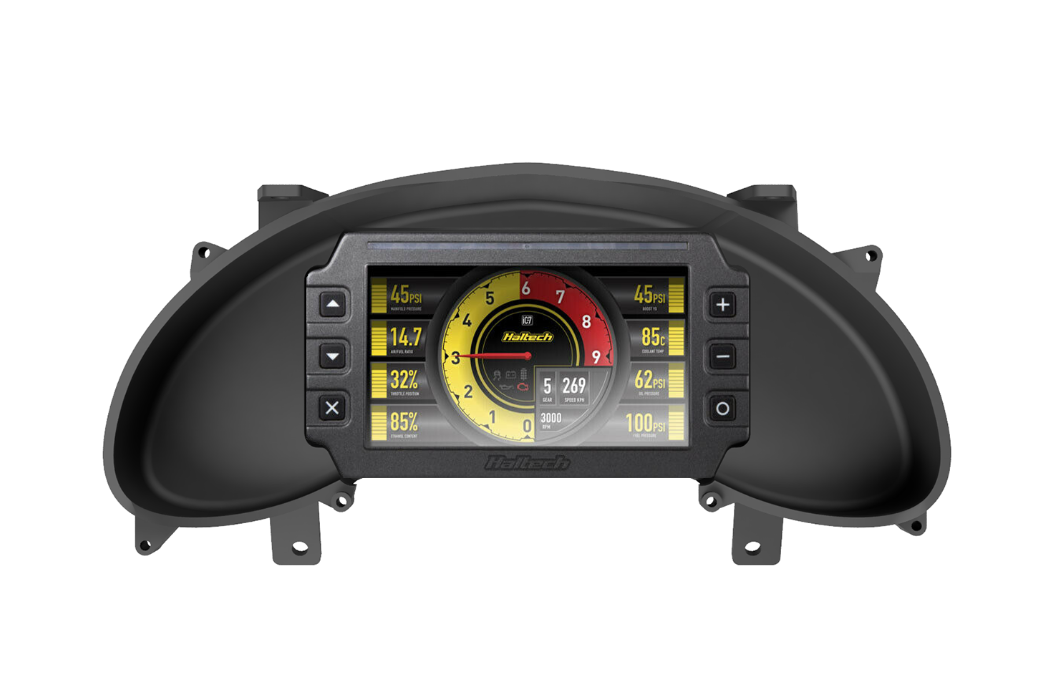

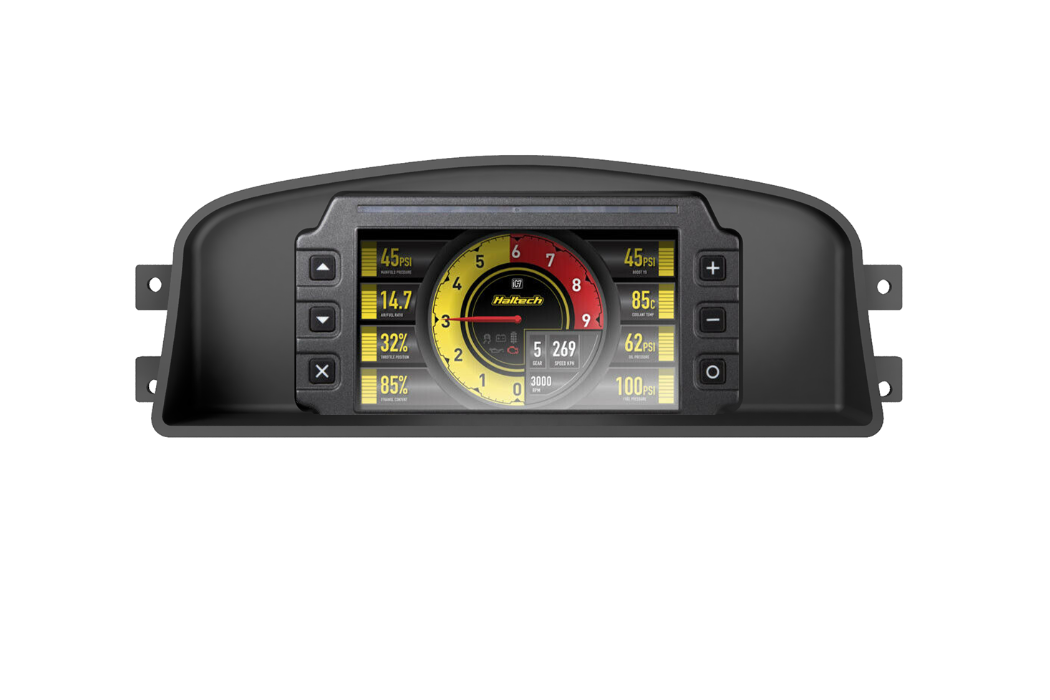

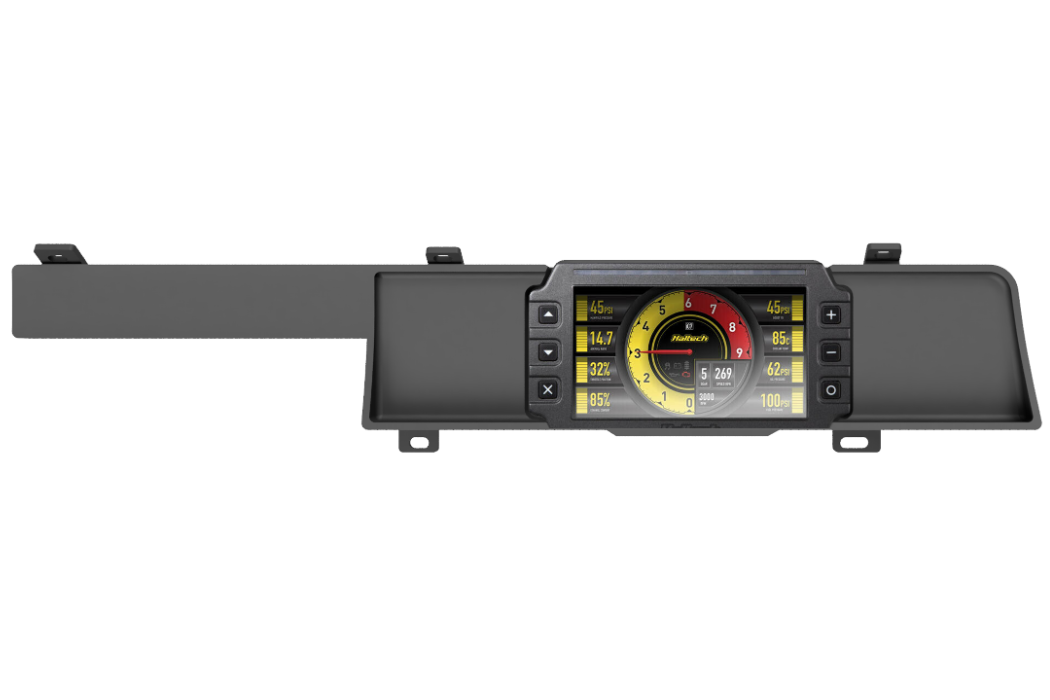

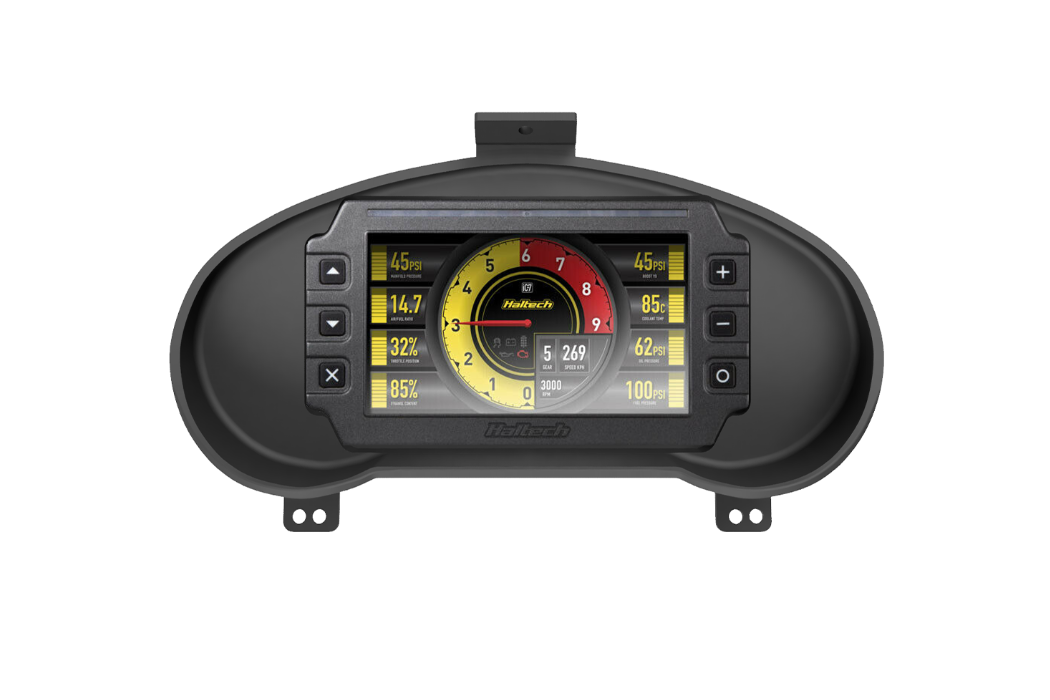

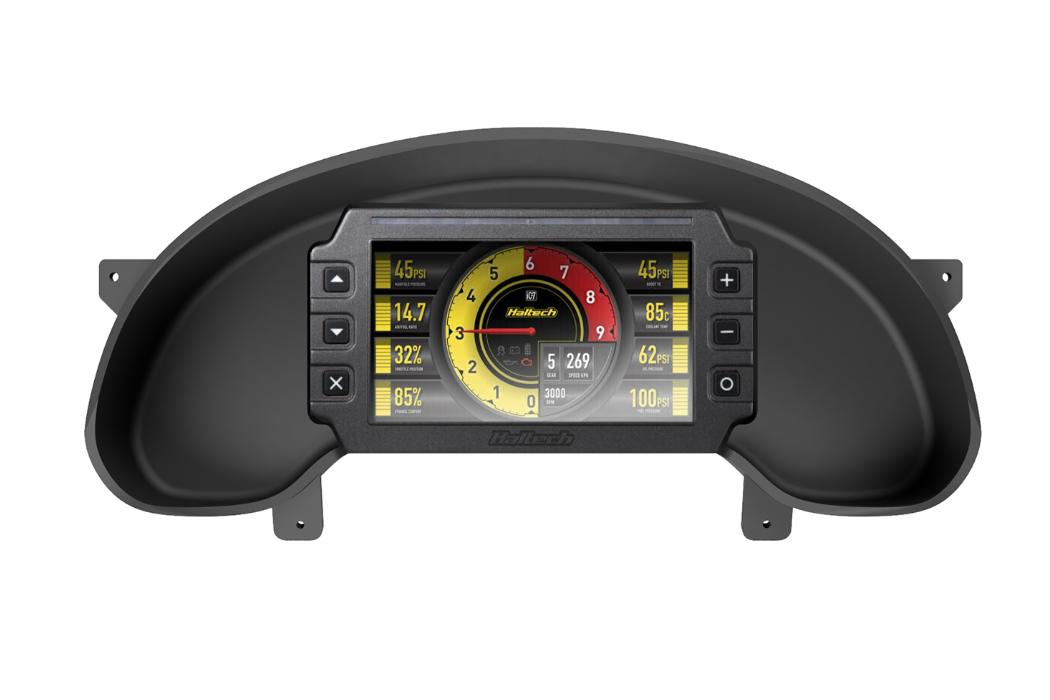

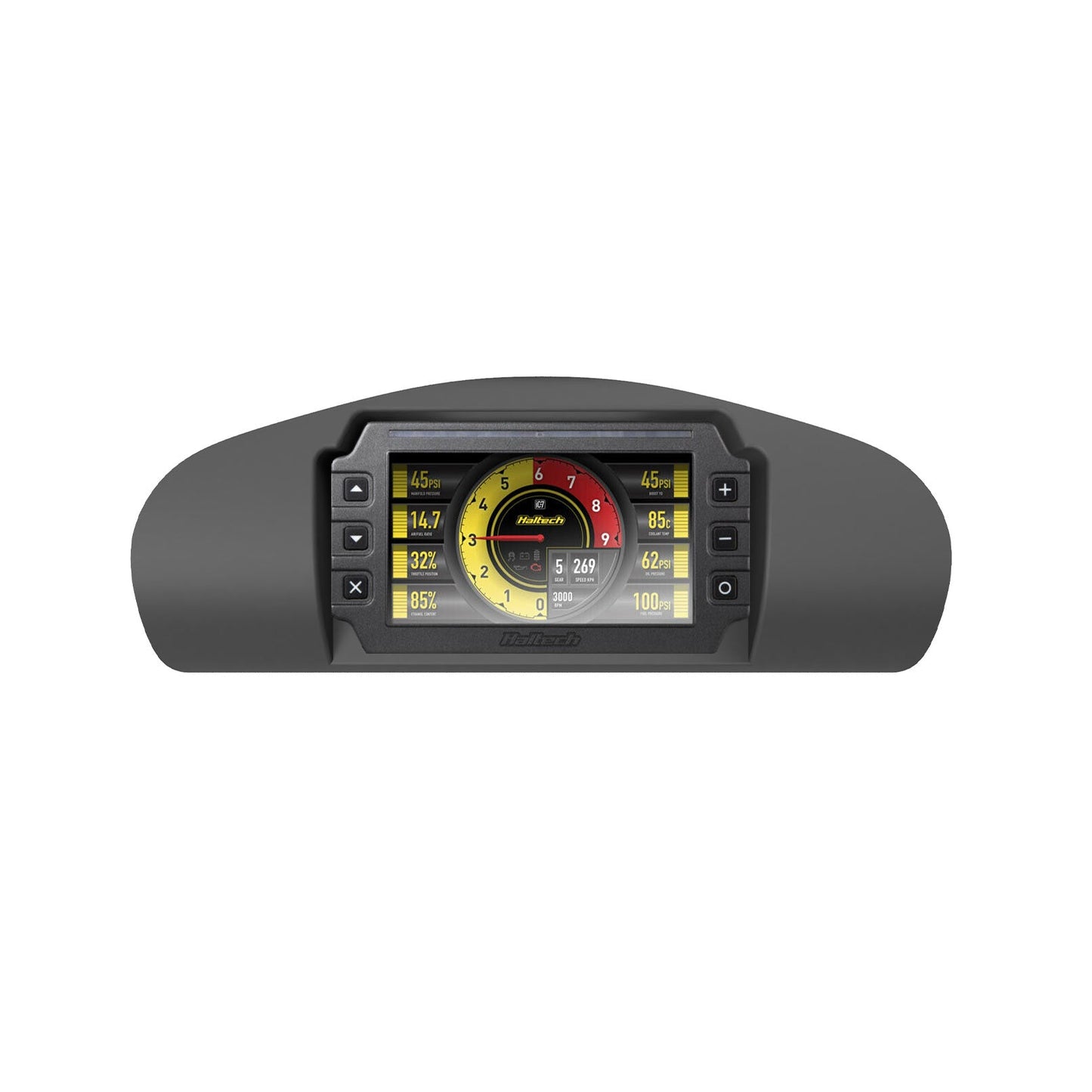

This bolt-in mount replaces your factory cluster, allowing you to mount the Haltech iC-7 cleanly and easily using the original mounting points of the factory cluster. (Display sold separately.)

Each design suits all trims and variants of its vehicle model and fits both the LHD and RHD variants unless it explicitly has alternate LHD/RHD versions listed.

Designed to mount directly into stock mounting points with no modification required
3D Printed, hand post-processed, sanded, smoothed and painted with a 2k matte black textured finish
Heat, stress, and chemical resistant

Check out these videos and our reviews below to see what we can do.

We make custom dashes to order all the time. For AiM, AEM, BTI, ECUMaster, Fueltech, Haltech, Holley, Microtech, Motec, PLEX, Powertune Digital, OneGauge and more. We can add LED indicators and additional gauge cutouts too!
