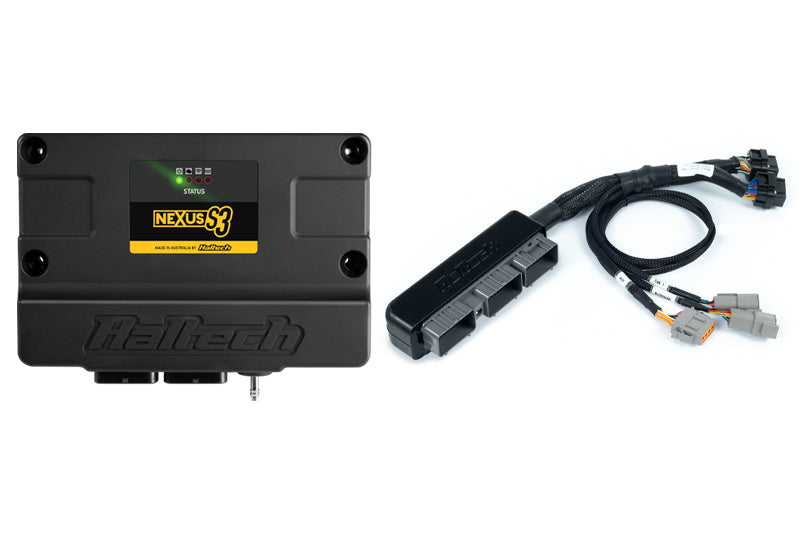

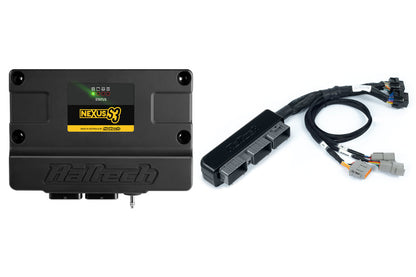

Haltech - Nexus S3 Plug 'n' Play Adapter Harness Kit - Toyota Supra JZA80
ECU OVERVIEW

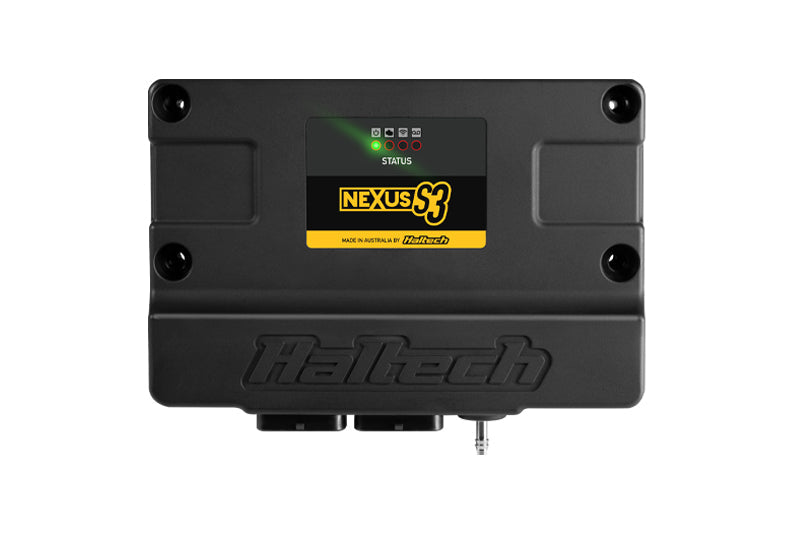

Haltech's Nexus S3 is the successor to the acclaimed Elite 2500, offering a serious upgrade in performance and functionality. The S3 combines all the classic functionality of the Elite 2500 with new features and the superior processing power of the successful Nexus platform.
- 8 x peak/hold injector drivers (can be used as low side drive outputs)
- 8 x low current ignition outputs (can be used as low side drive outputs)
- 6 x low side drive outputs, PWM capable (DPOs)
- 4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
- 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
- Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
- 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
- 1 x on-board wideband controller, supporting NTK and LSU4.9
- 1 x on-board 4 bar MAP sensor
- 2 x CAN ports with switchable termination

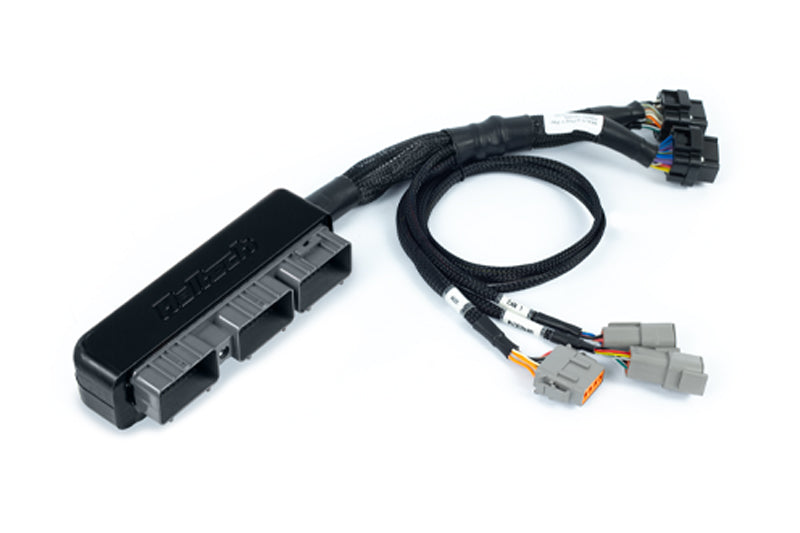

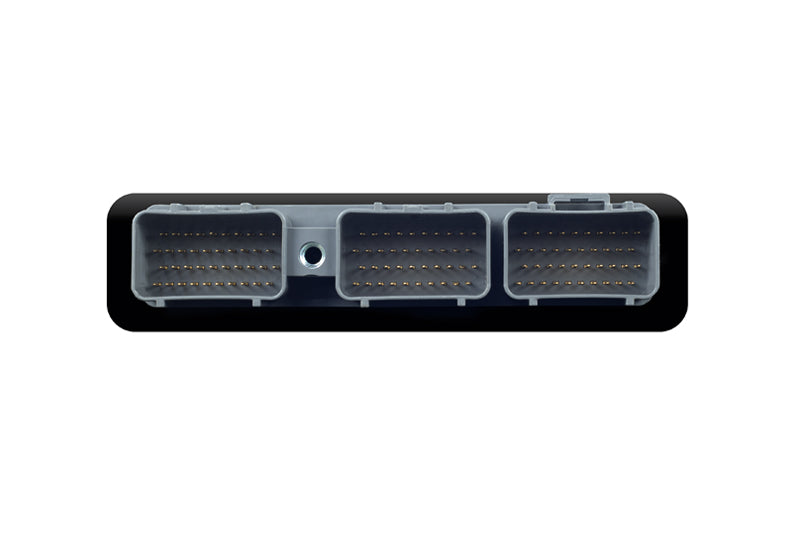

If you are using a factory harness and are after an easy ECU upgrade, take a look at Haltech Plug 'n' Play Adapter Kits. These adapters plug directly into your Haltech ECU and have a set of factory connectors on the other side which plug straight into the factory harness.
- A simple Haltech Plug 'n' Play product that allows you to be up and running in just a few hours.
- The quick start guide will walk you through installation of the Haltech Plug 'n' Play adapter into your vehicle.
