Powertune Digital Display CAN I/O Extender
Powertune Digital Display CAN I/O Extender
Powertune Digital Display CAN I/O Extender
Powertune Digital Display CAN I/O Extender
Powertune Digital Display CAN I/O Extender
Powertune Digital Display CAN I/O Extender

Powertune Digital Display CAN I/O Extender

Regular price
$279.00
Sale price
$279.00
Tax included. Shipping calculated at checkout.

Proudly presenting the Powertune Digital YES-WE-CAN I/O Extender.

  • Provides up to 8 analogue (voltage OR resistance based) and 8 digital inputs which can be broadcast via CAN to receiving dash/device.
  • Compatible with aftermarket or factory sensors!
  • Works standalone, does not require an aftermarket or Factory ECU. Can also work alongside either a factory or aftermarket ECU already installed!
  • Adjustable CAN speeds and CAN IDs
  • Onboard 5V power supply to power external sensors
  • Loom length: 600mm
  • Sensors are not included.

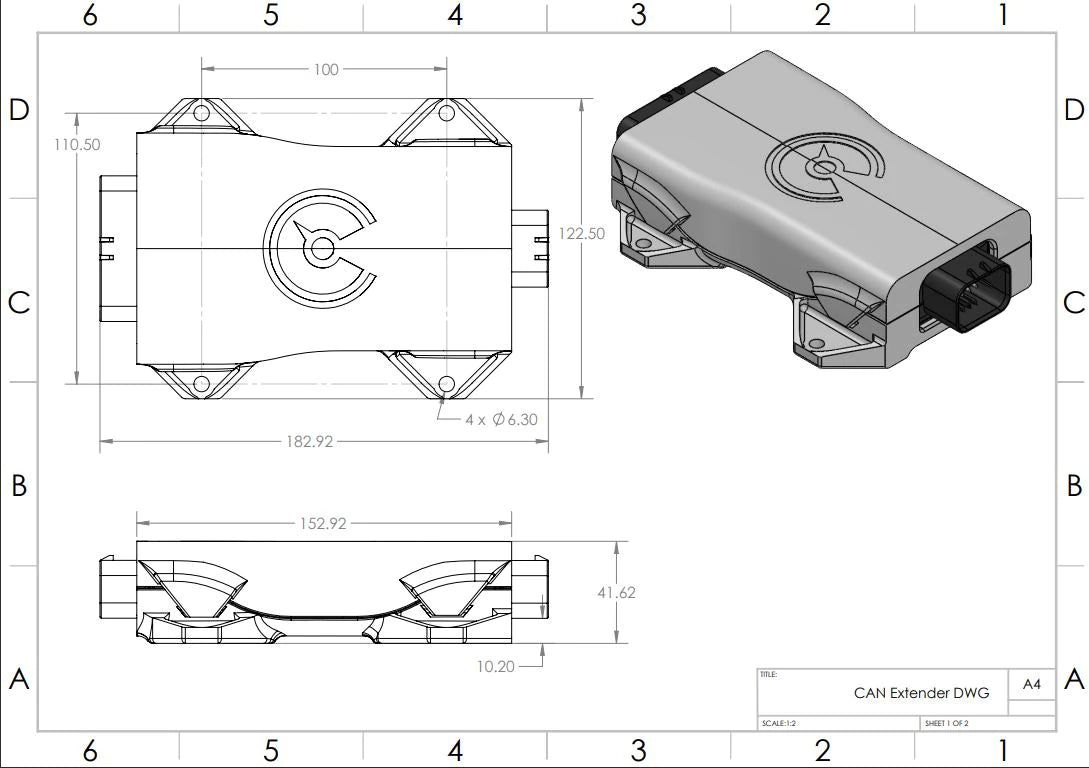

Click here for dimensions drawing and fit-to-scale printout

Documentation:

Digital dash quick start guide with GPS pinning can be viewed here

Digital dash full user manual can be downloaded here

CAN Extender user manual here

CANSHIFT user manual here

Facebook - PowerTune Digital Owners Group: Join here

Link ECU Analogue input setup guide here



Video Tutorials:

Guide 1 - Powertune Digital dash vehicle installation (COMING SOON!)

Guide 2 - Powertune Digital dash first time setup/first use video here

Guide 3 - Customising dash layouts here (watch guide 2 first!)

Guide 4 - How to create tracks for the laptimer here
